Crimp J45, engine harness, Trionic: Location:

Approx. 270 mm from branching point connector H24-2 towards the engine control module

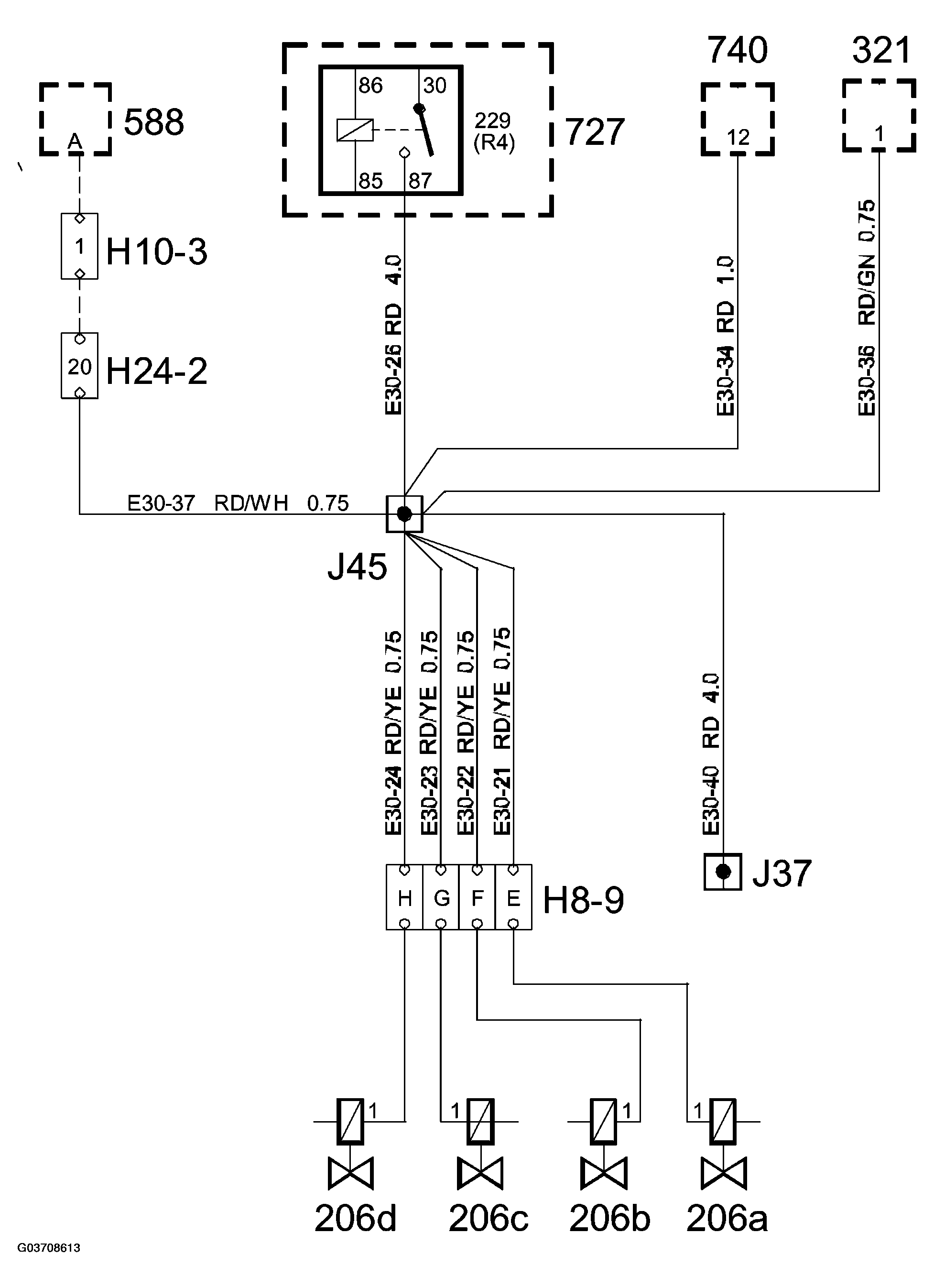

Fig 1: Crimp J45 Engine Harness Trionic Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
