Column Integration Module (703) : Notes
Courtesy of SAAB-SCANIA OF AMERICA, INC.

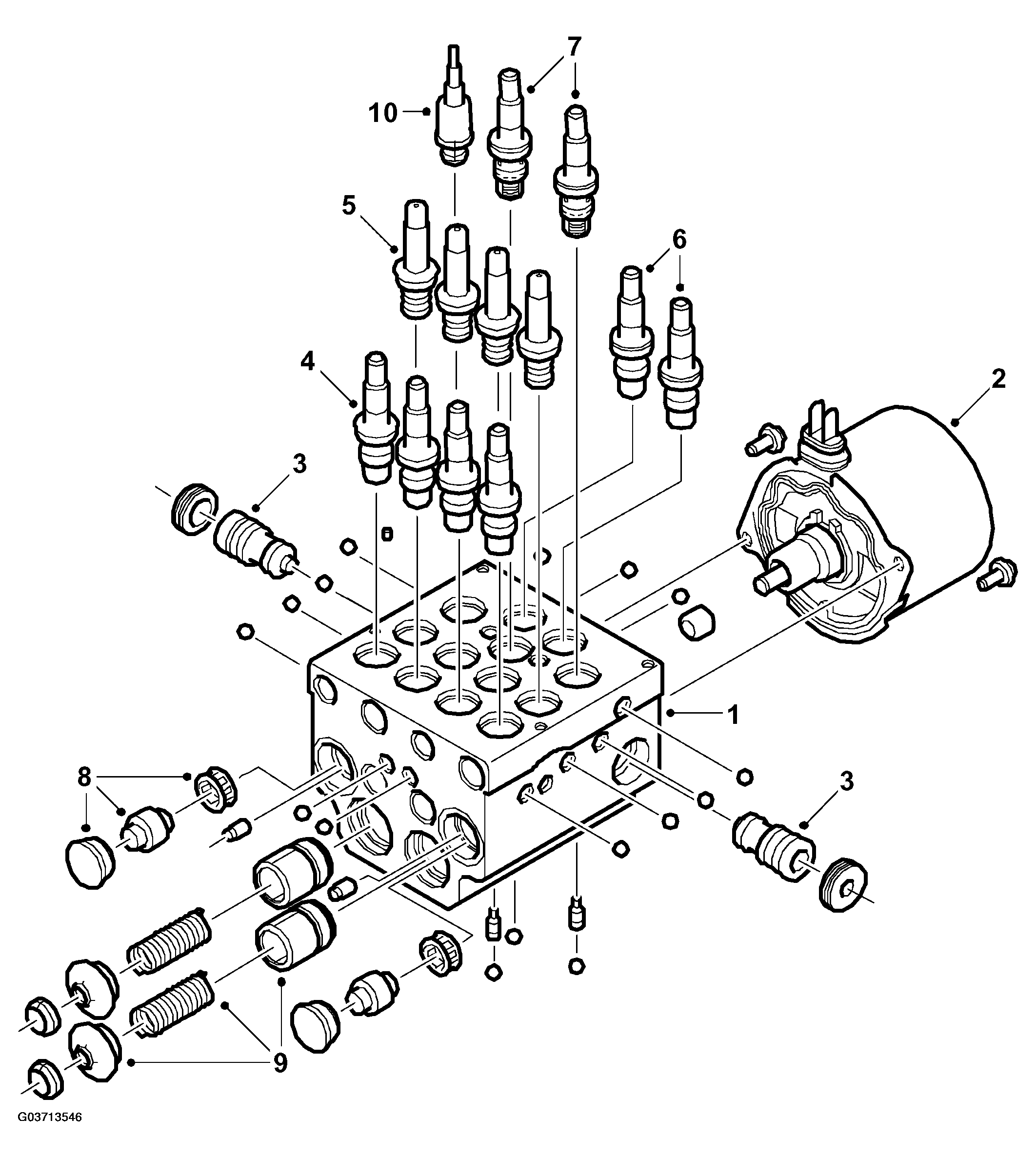

- 1 Valve body
- 2 Motor
- 3 Pump
- 4 Inlet valve
- 5 Outlet valve
- 6 Pressure relief valve
- 7 Pressure increase valve
- 8 Pressure chamber
- 9 Accumulator chamber
- 10 Brake pressure sensor
