Technical Data: Siren

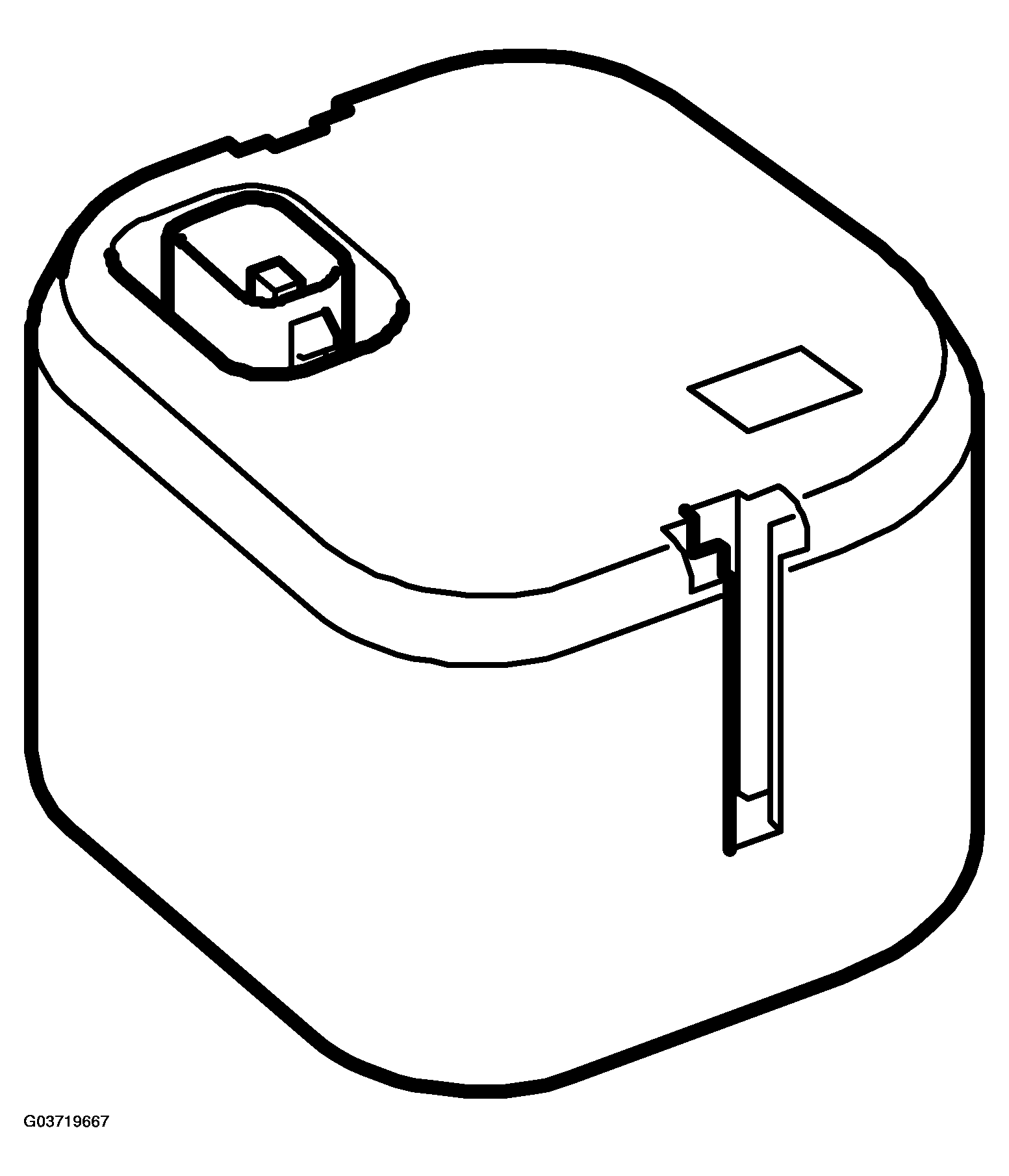

Fig 1: Identifying Siren

G03719667

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SIREN DESCRIPTION

NC	Pin 1
+30	Pin 2
Communication cable BCM <- ASM	Pin 3
Ground	Pin 4
Battery	Rechargeable NiMH
Alarm limit, voltage drop	10V/h
Sound volume @ 1m	105-118dB (A)
Tone range	1800-3550Hz
Sweep frequency	2Hz
