To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

Plug in the connector.

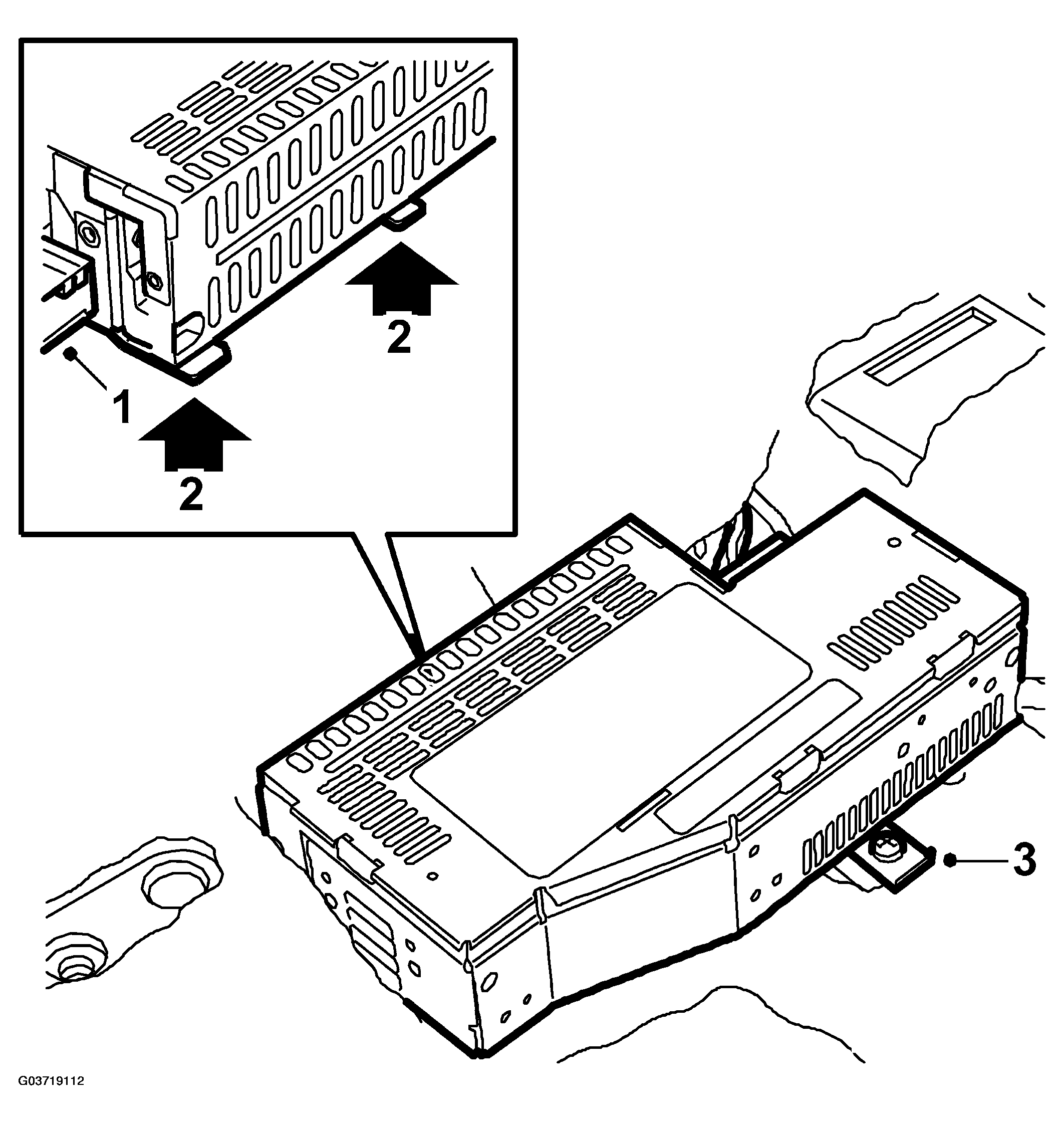

Fig 1: Illustration For Steps 1-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the amplifier by hooking into the two brackets.
Fit the screw.
Fit the left-hand front seat.

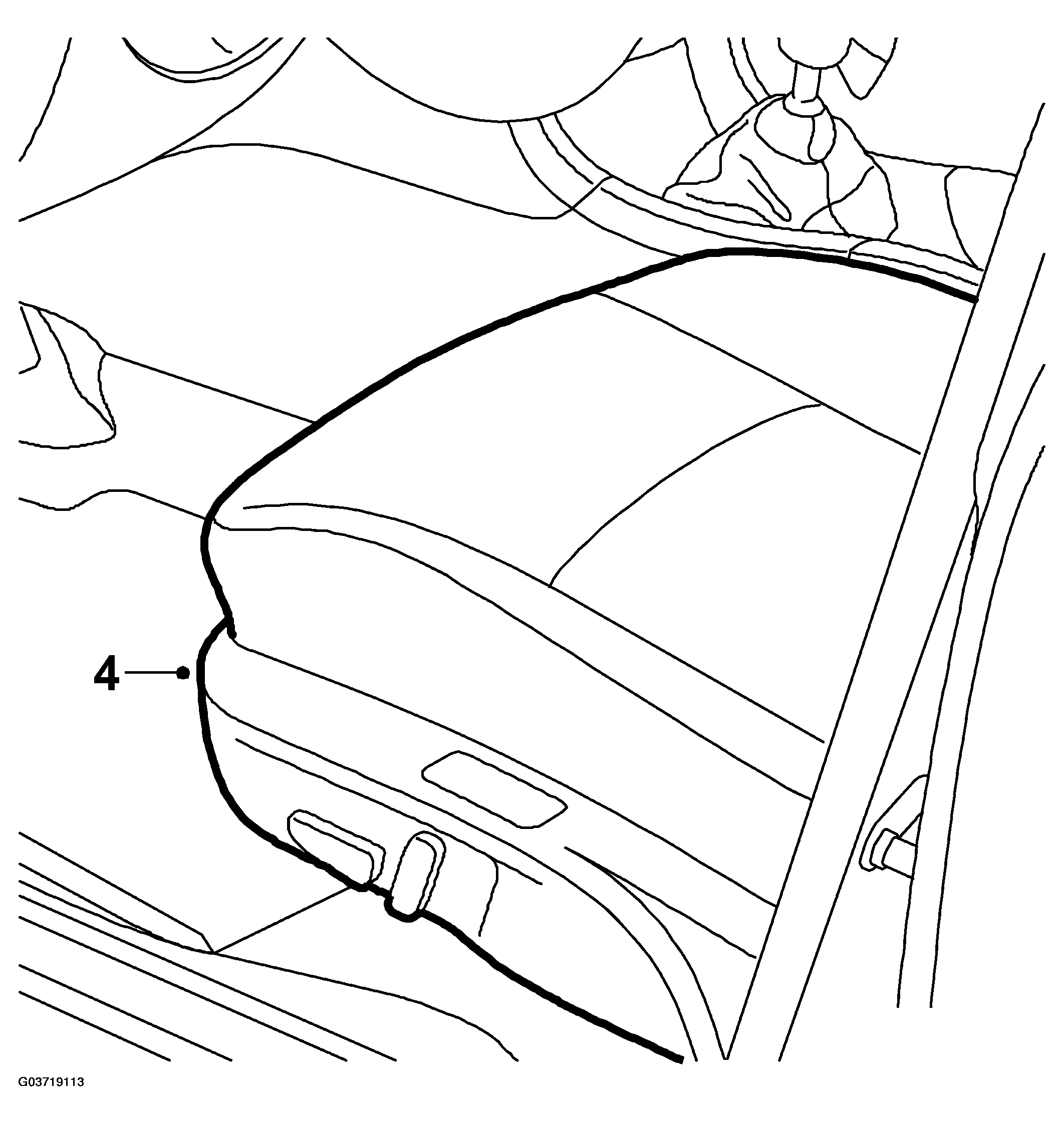

Fig 2: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Carry out actions after replacement of control module.
Check the function.
