To fit

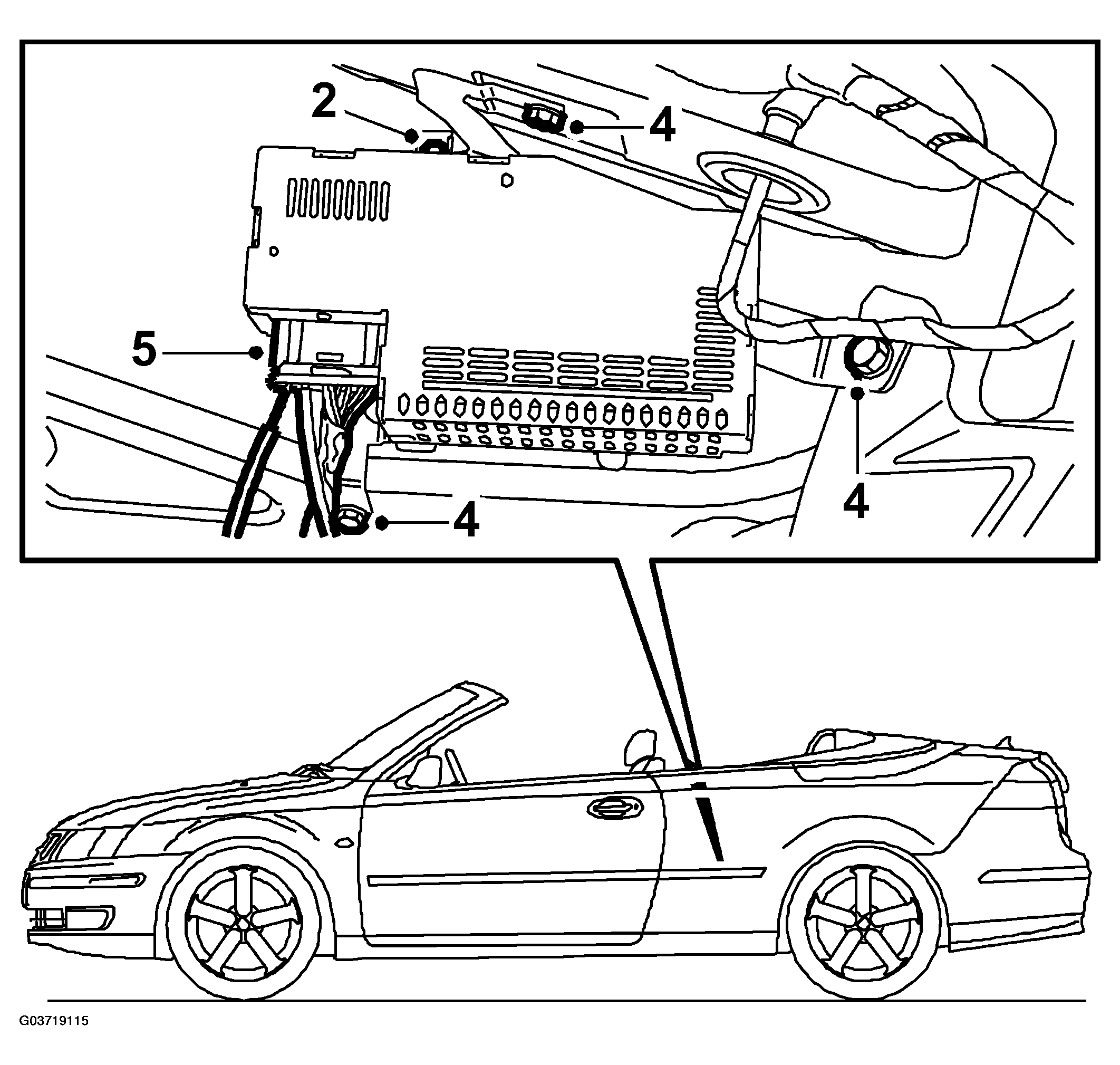

- Fit the amplifier into the bracket.
- Fit the amplifier retaining screw.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Fit the assembled amplifier and bracket.
- Fit the bracket screws.
IMPORTANT:
Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION
.
- Plug in the connector.
- Carry out actions after replacement of control module.
- Check the function.
- Fit the rear side trim on the left side.
