To remove

Carry out actions before removing control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

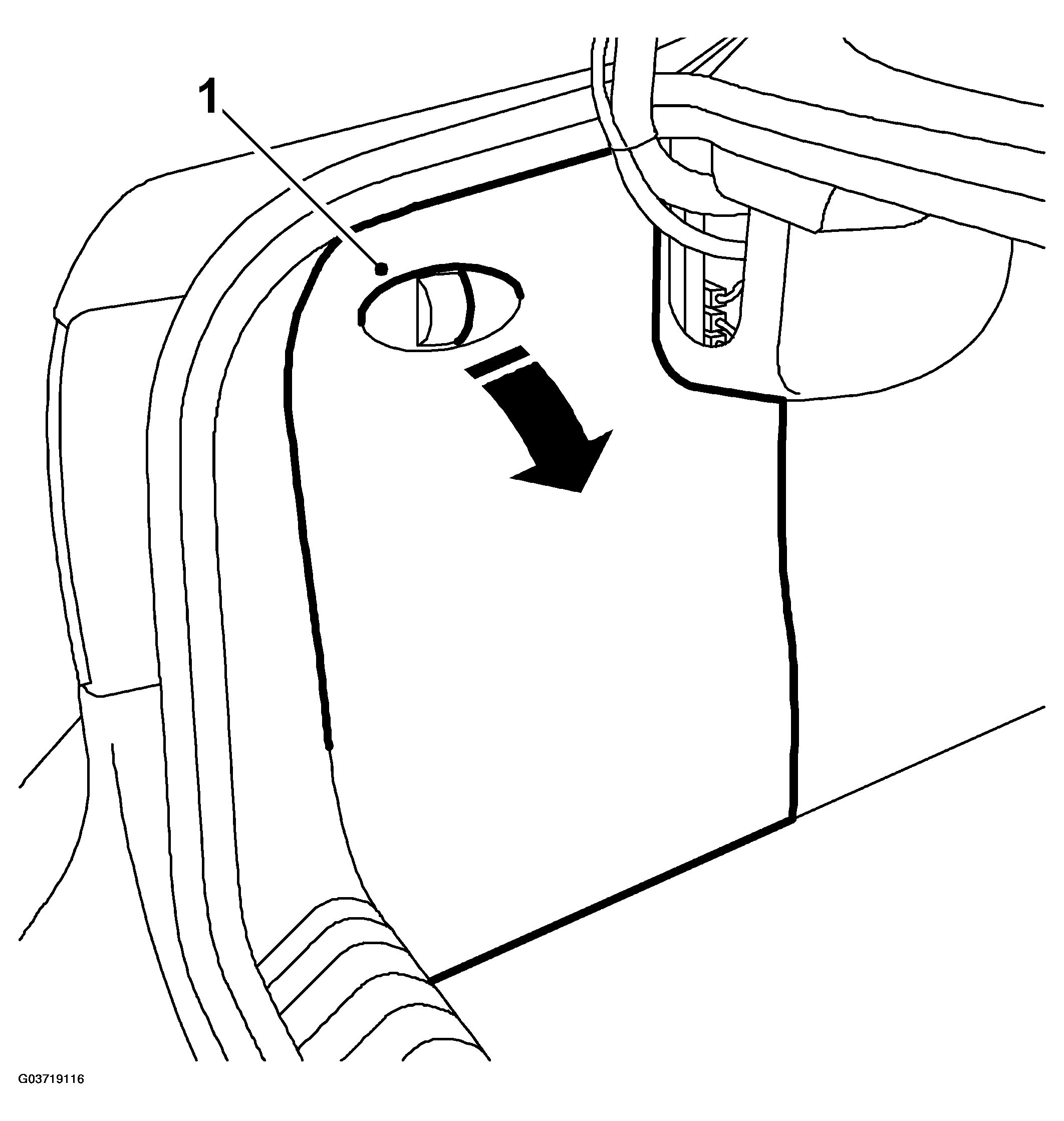

1. Open the left-hand side hatch in the luggage compartment.
   Fig 1: Illustration For Step 1

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

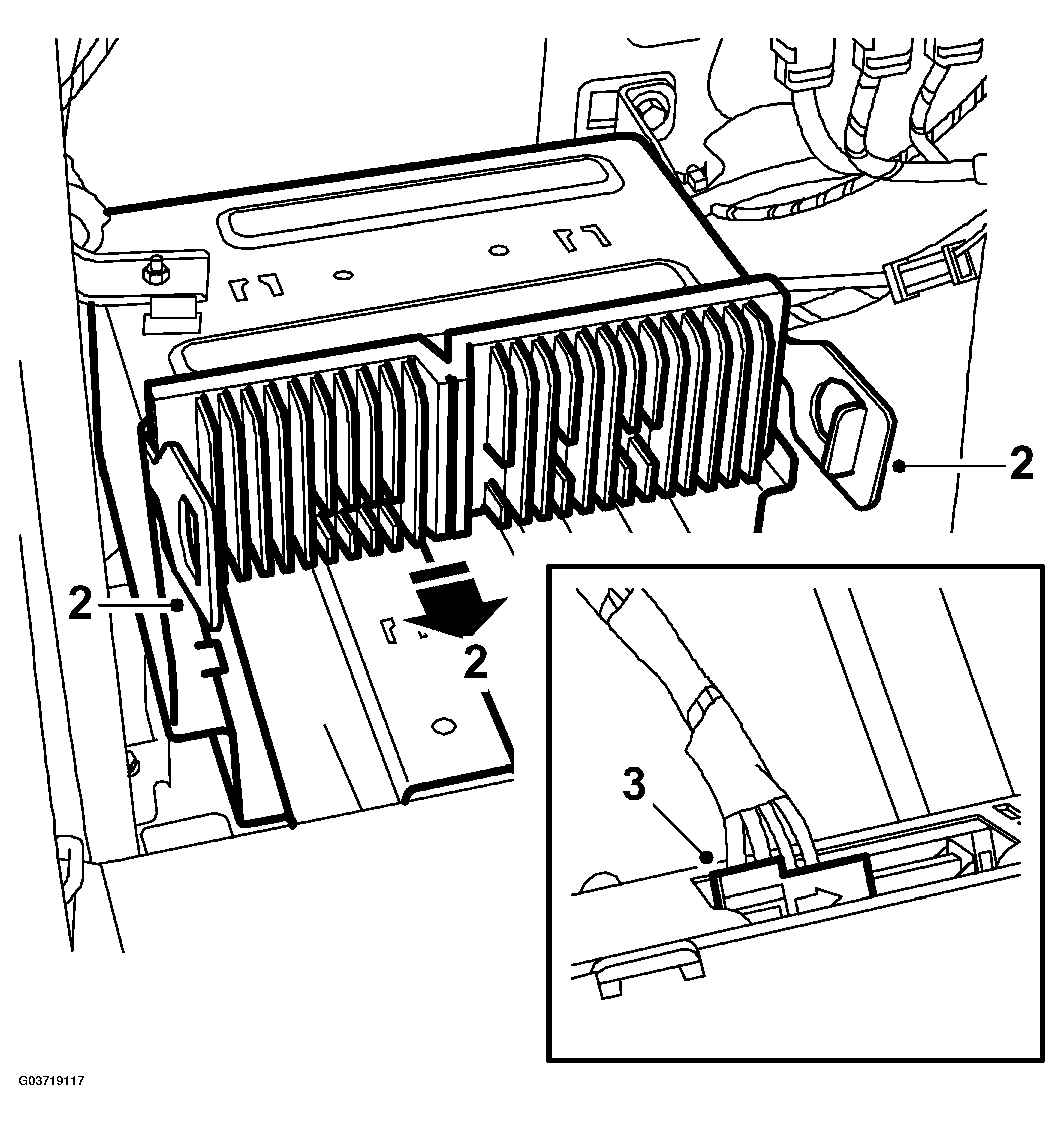

2. Remove the amplifier using 84 71 203 Removal tool.
   Fig 2: Illustration For Step 2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
3. Unplug the connector.
