To remove

Carry out actions before removing control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

1. Remove the side trim on the left side of the luggage compartment.
2. Remove the amplifier using 84 71 203 Removal tool.

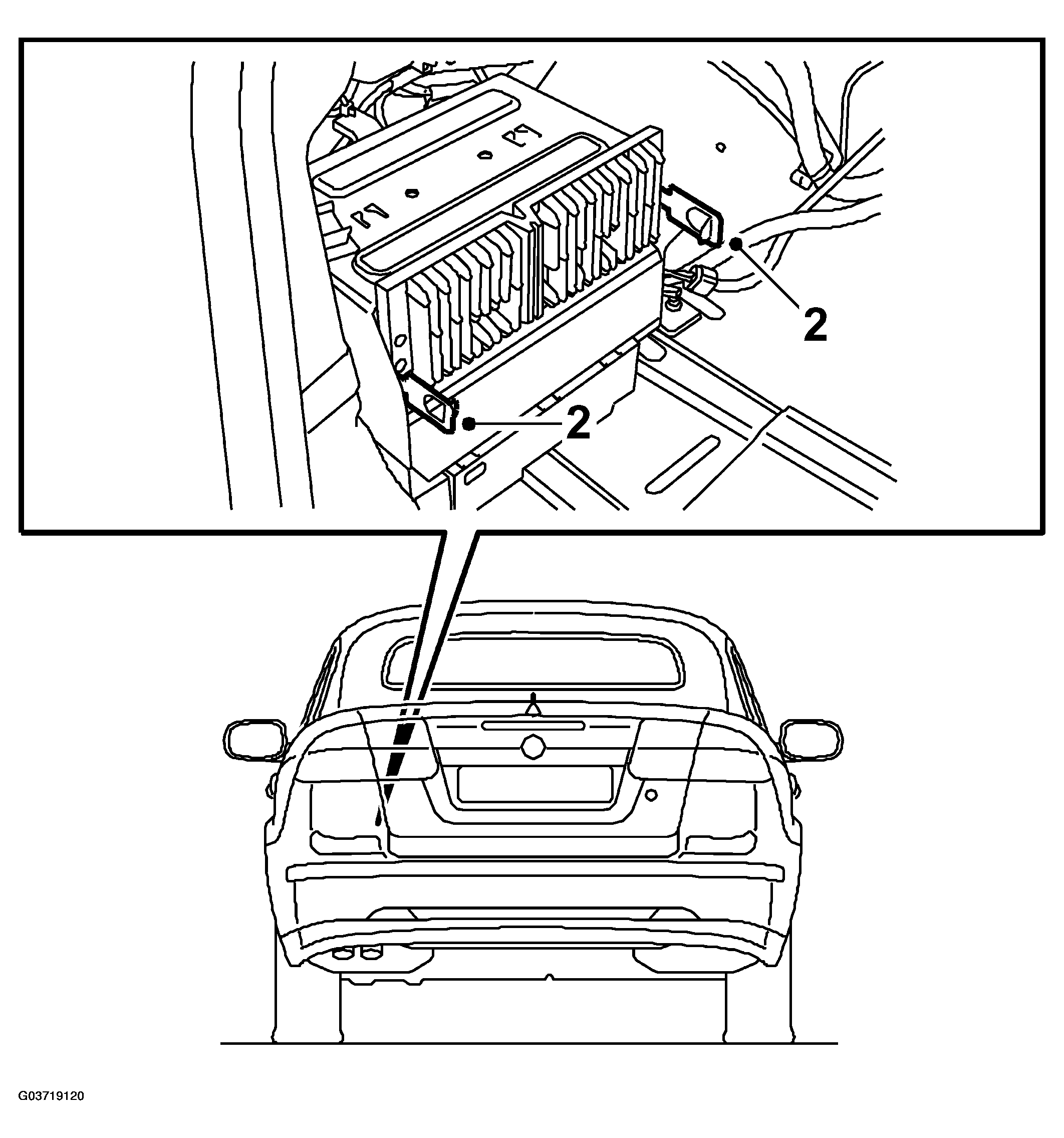

   Fig 1: Illustration For Step 2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
3. Unplug the connector.

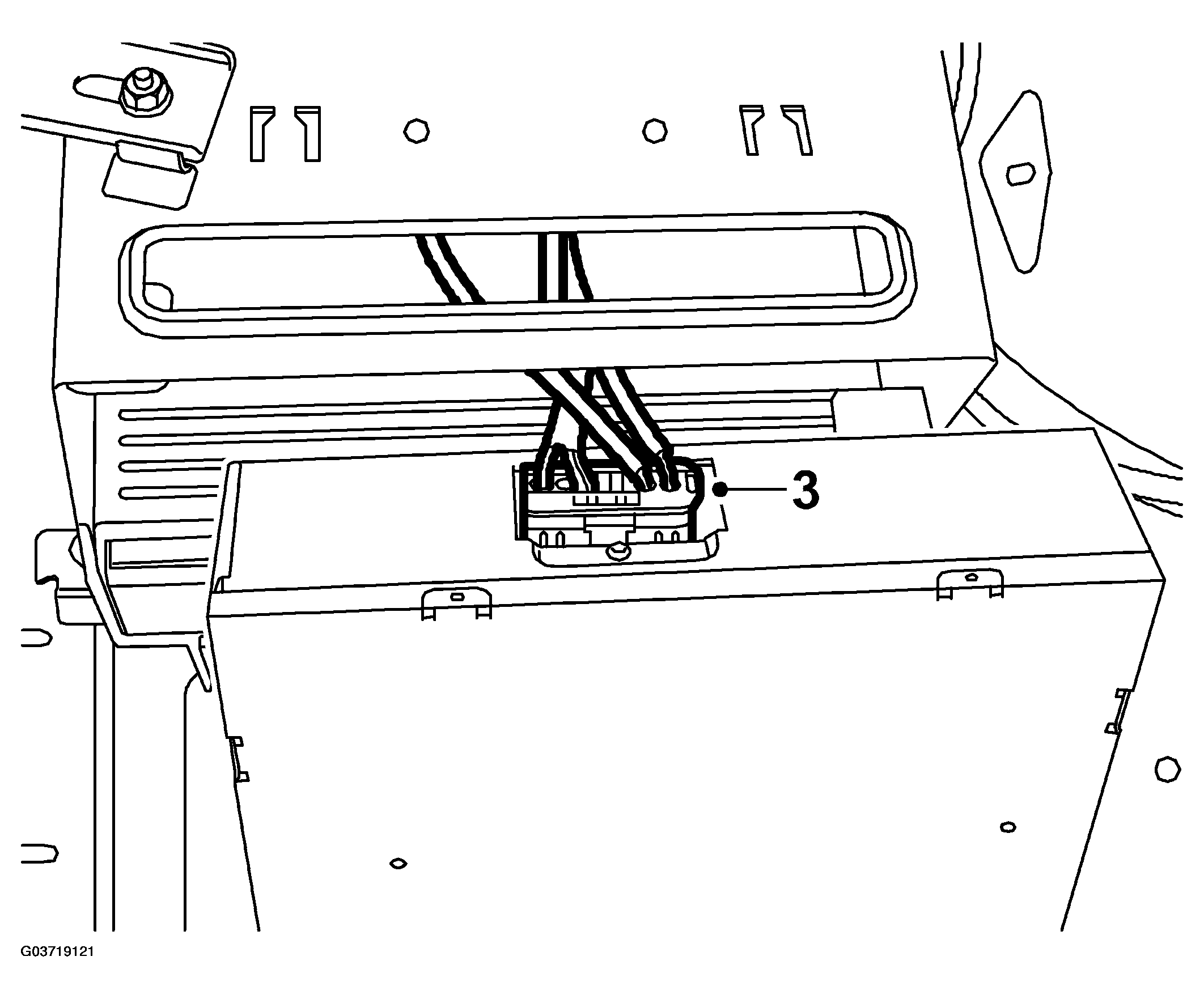

   Fig 2: Illustration For Step 3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
