To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

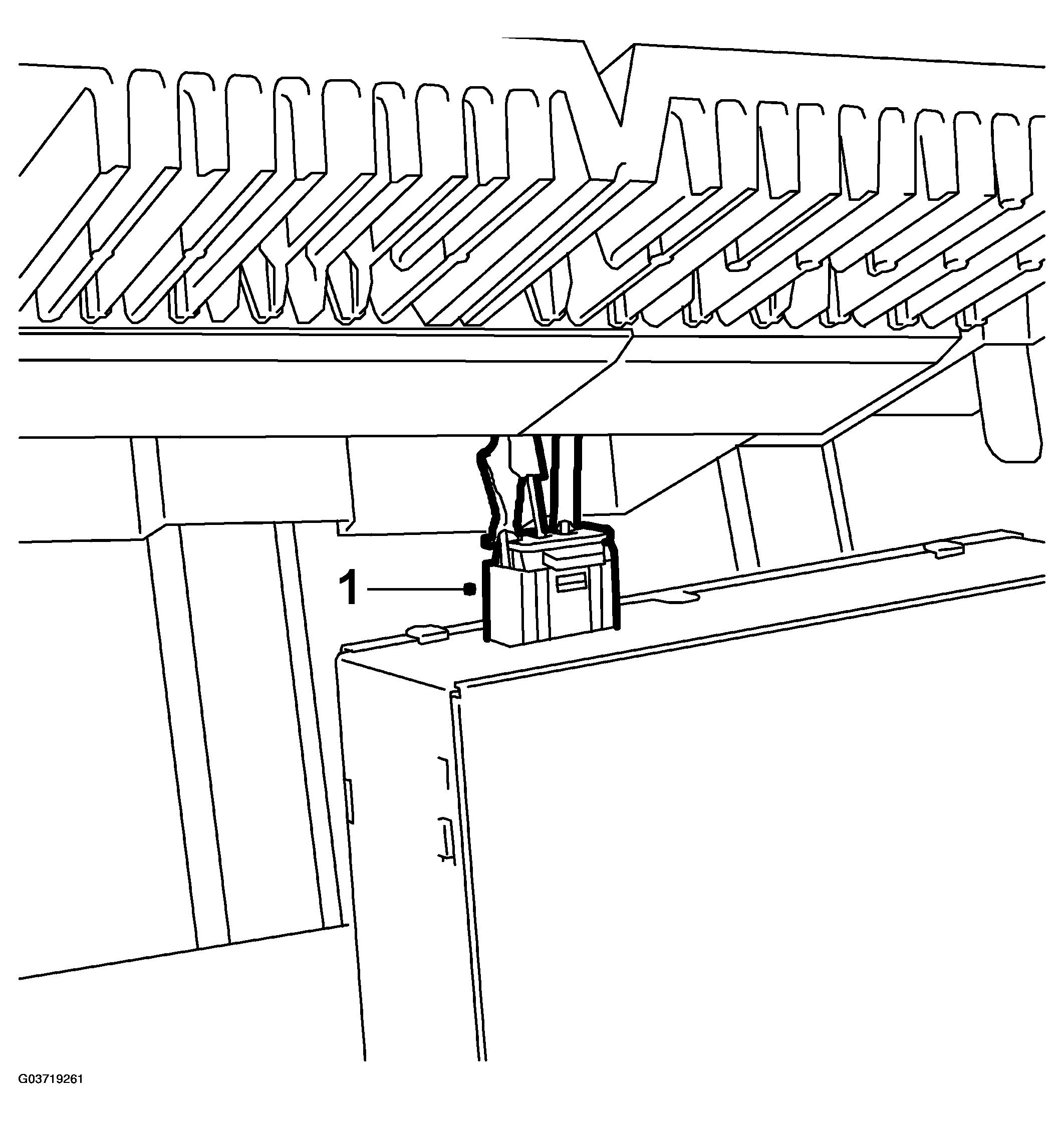

Plug in the connector.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

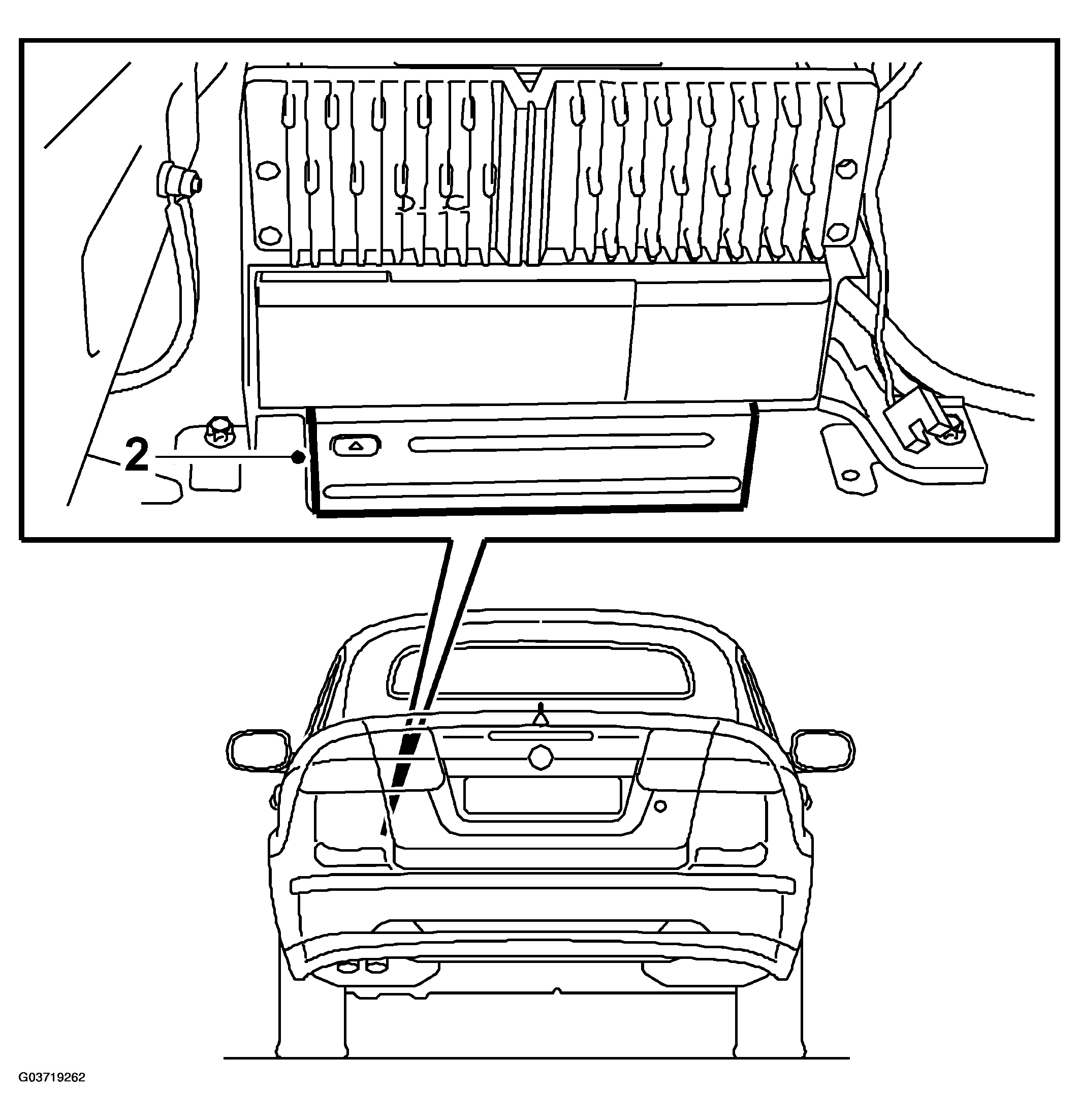

Fit the navigation unit. A clicking sound should be heard.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the side luggage compartment trim.
Carry out procedures after changing a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE .
