Control module seat (357k)
›
Location
Control module seat (357k): Location
Location: in the seat under the cushion

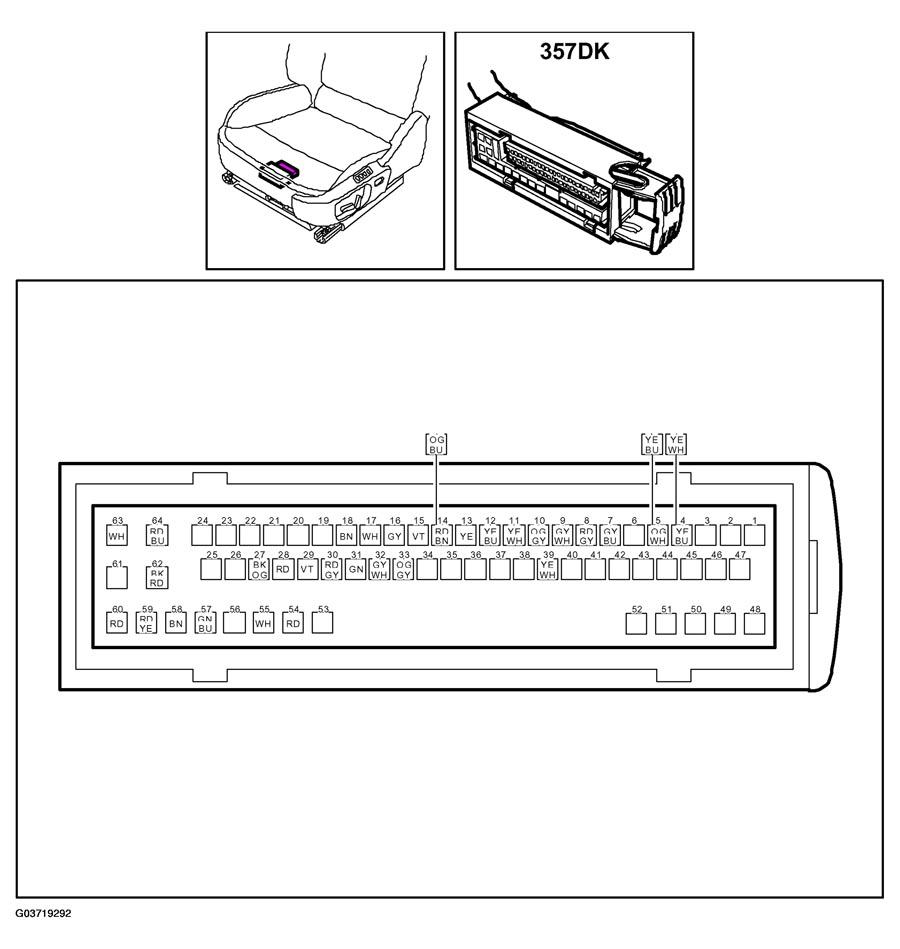

Fig 1: Identifying Control Module Seat (357K) Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
