Control module, TCM (502): Location: K38B

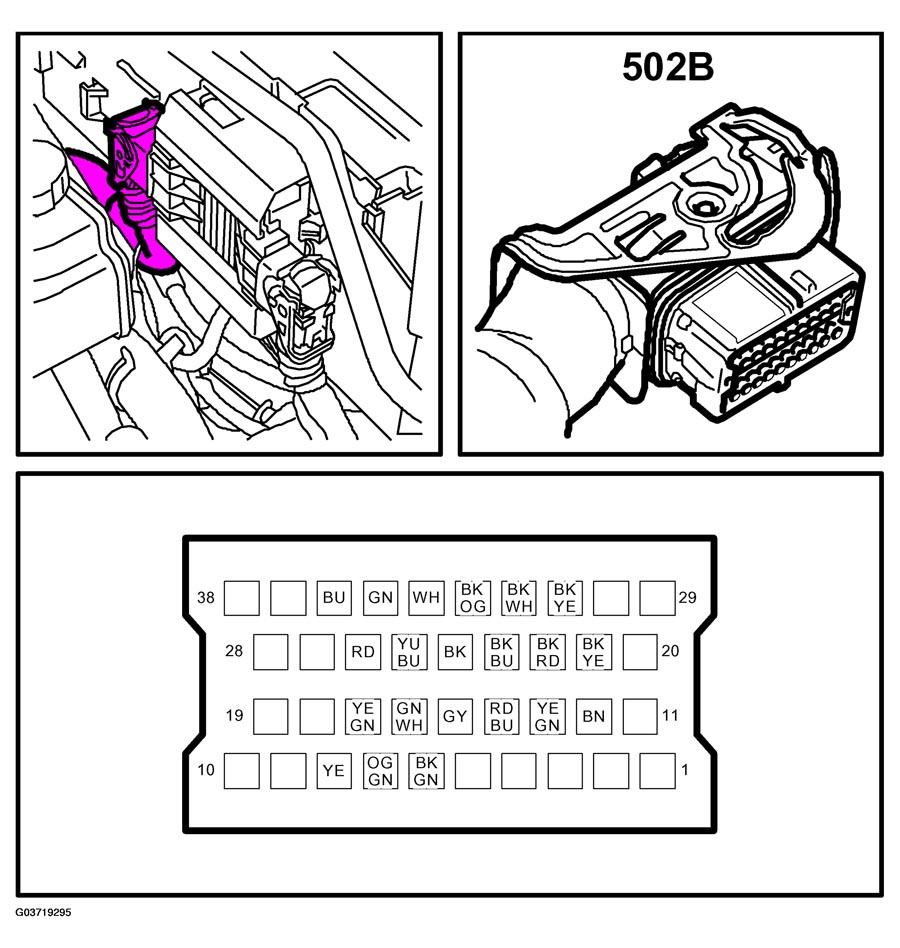

Fig 1: Identifying Control Module TCM (502B) Connector Pinouts
G03719295Courtesy of SAAB-SCANIA OF AMERICA, INC.
