Control module, window lift, rear, LH (575RL)
›
Location
›
J2
Control module, window lift, rear, LH (575RL): Location: J2

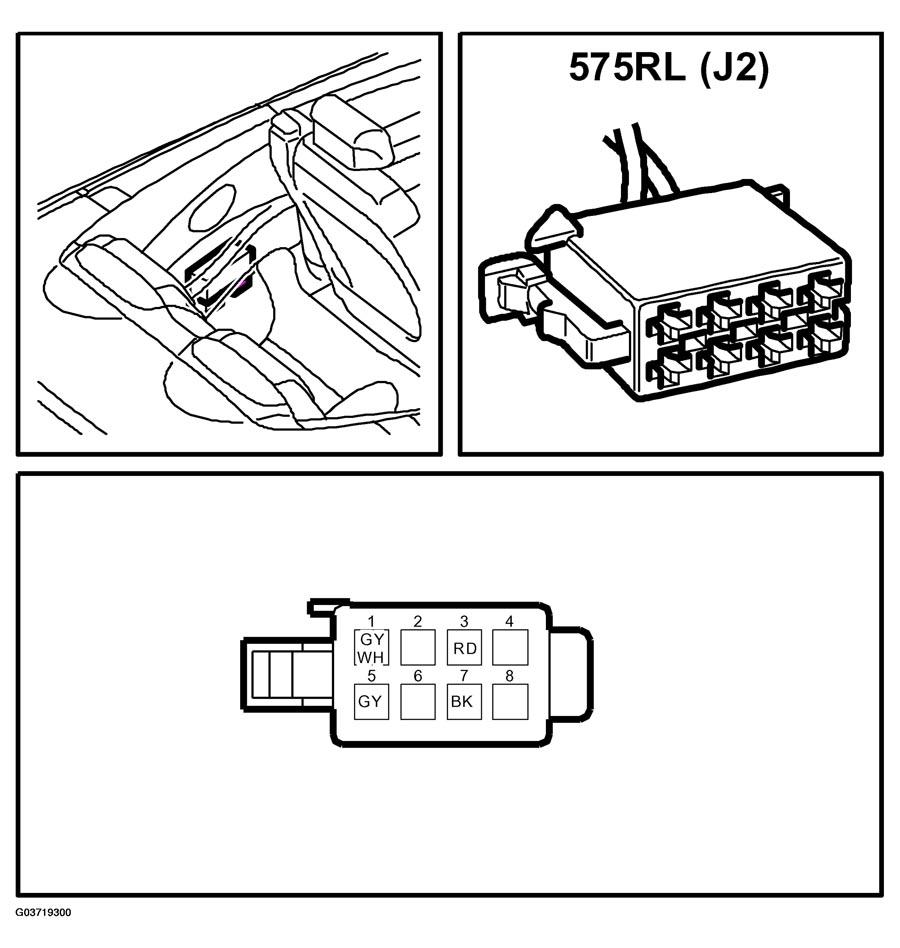

Fig 1: Identifying Control Module, Window Lift, Rear, LH (J2) Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
