Saab
›
2004
›
9-3 Linear, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Control Module
›
Component Location
›
Control module, window lift, rear, RH (575RR)
›
Location
›
J2
Control module, window lift, rear, RH (575RR): Location: J2

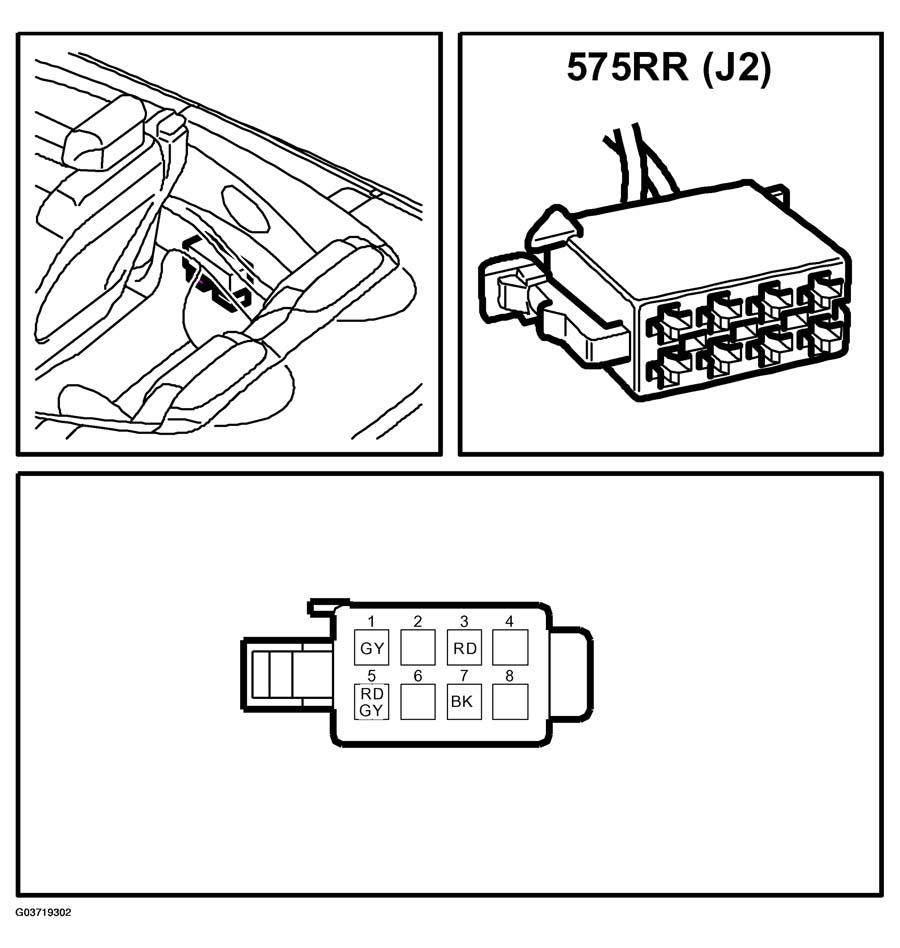

Fig 1: Identifying Control Module Window Lift, Rear, Rh (575RR) J2 Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
