Home › Saab › 2004 › 9-3 Linear, Automatic › Repair and Diagnosis › Electrical › Body Electrical › Control Module › Component Location › Power steering system unit (745) › Location › K2

Power steering system unit (745): Location: K2

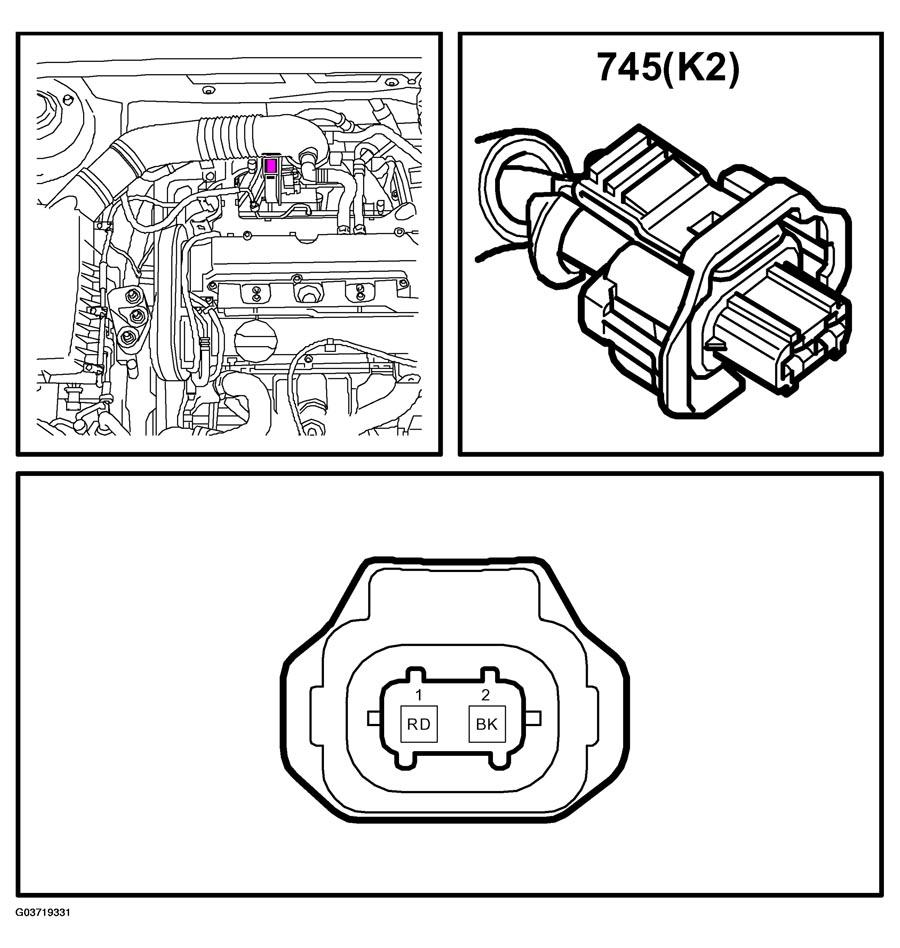

Fig 1: Power Steering System Unit Connector Pinouts

G03719331

Courtesy of SAAB-SCANIA OF AMERICA, INC.
