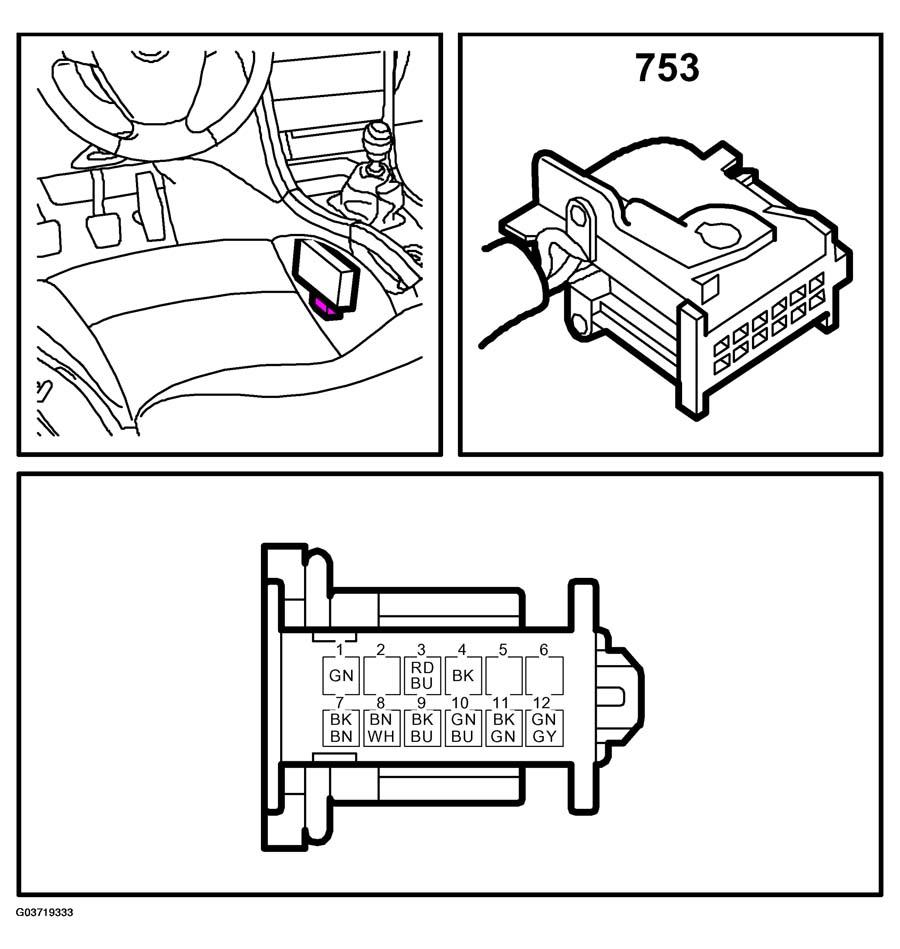

Tire Pressure Monitoring Module (753): Location

Location: on the LH support member of the center console

Fig 1: Pressure Monitoring Module Connector Pinouts

Courtesy of SAAB-SCANIA OF AMERICA, INC.
