Technical Data
›
Control module, seat (357k)
Control module, seat (357k)

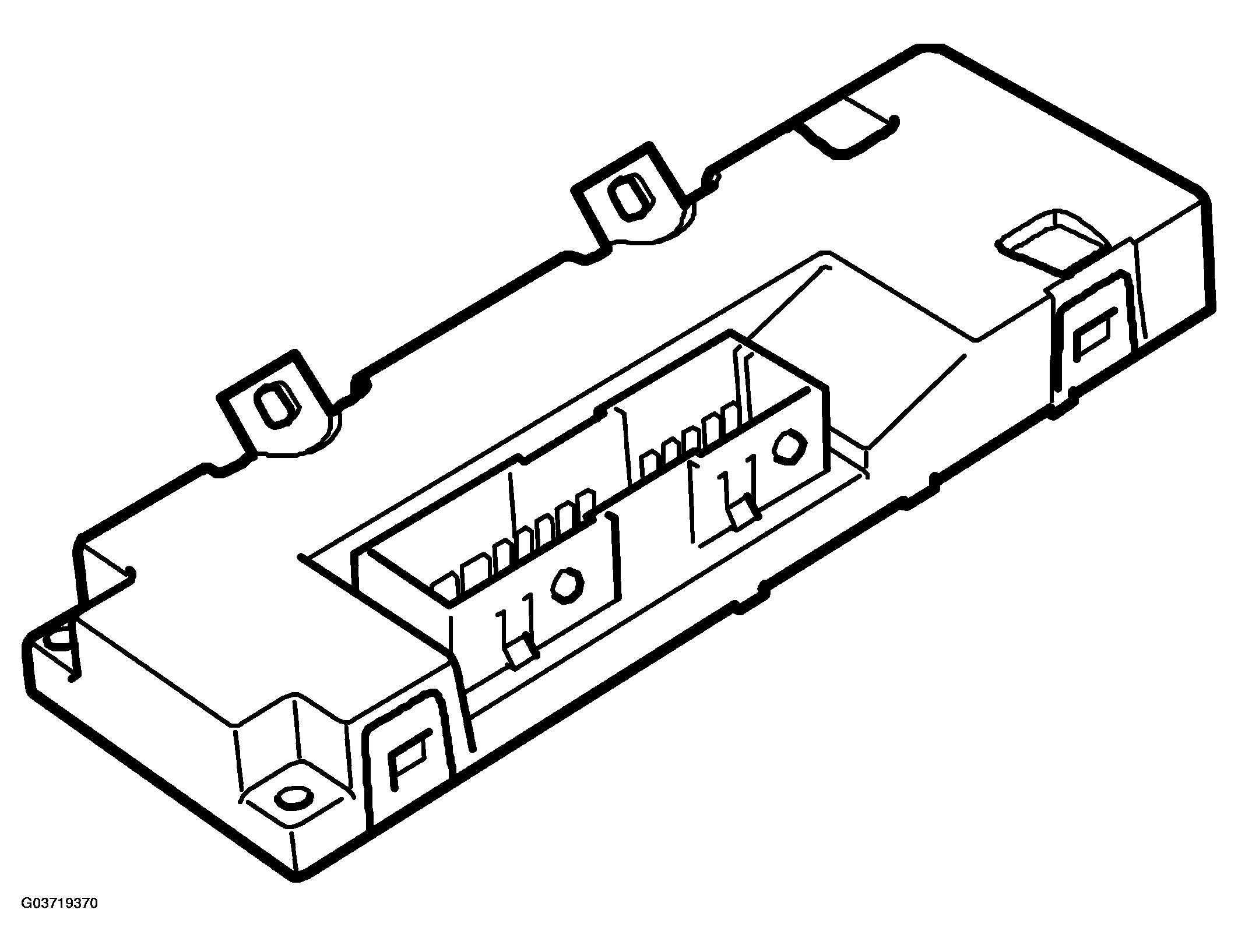

Fig 1: Identifying Control Module Seat
Courtesy of SAAB-SCANIA OF AMERICA, INC.
SEAT CONTROL MODULE SPECIFICATION
Power supply +30
pin
59
Ground
pin
58
Courtesy of SAAB-SCANIA OF AMERICA, INC.
