Relay unit, radiator fans (706a), B207 with two radiator fans
›
Connection
›
control
Relay unit, radiator fans (706a), B207 with two radiator fans: Connection: control

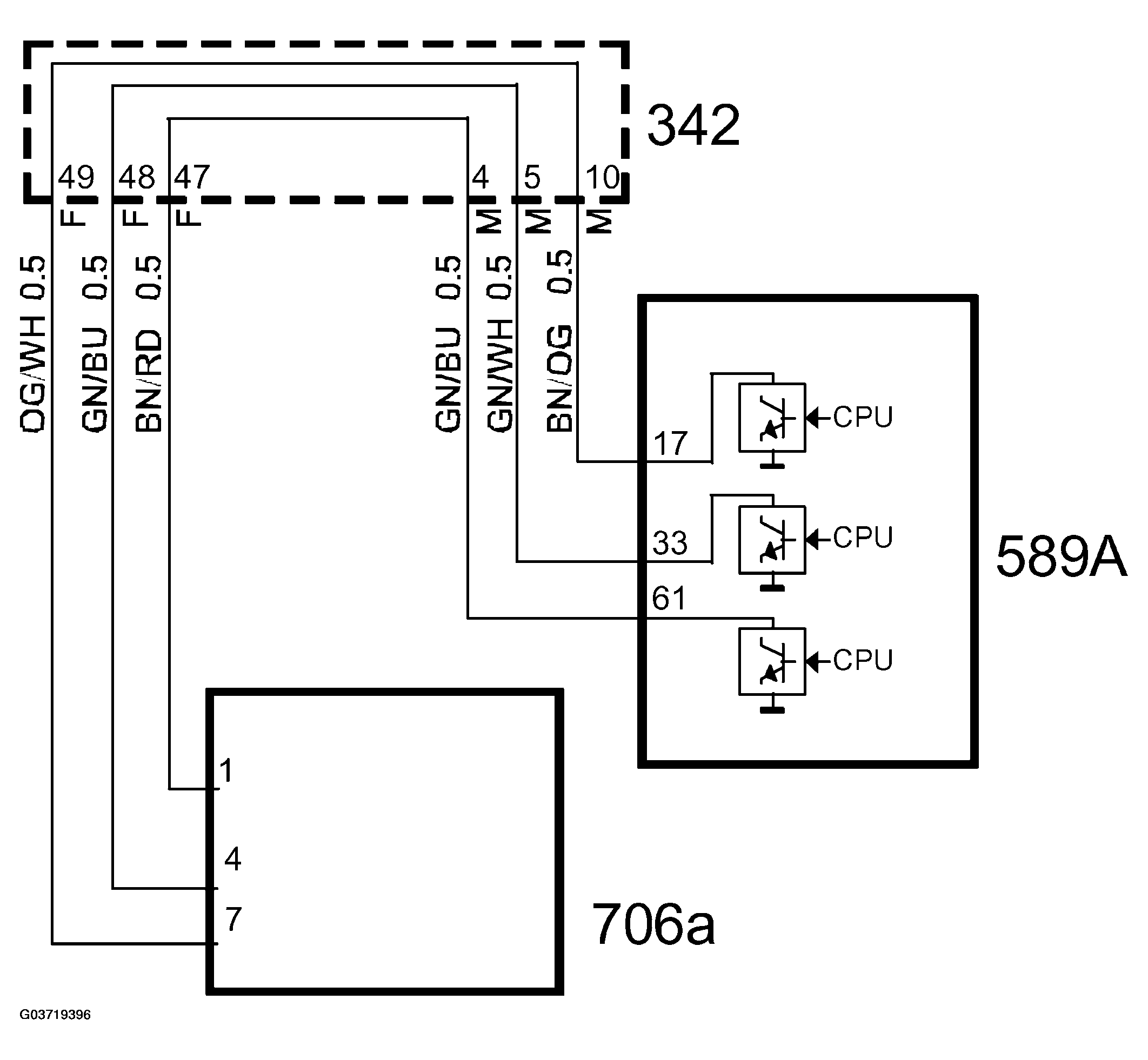

Fig 1: Power Supply Control Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
