Navigation unit

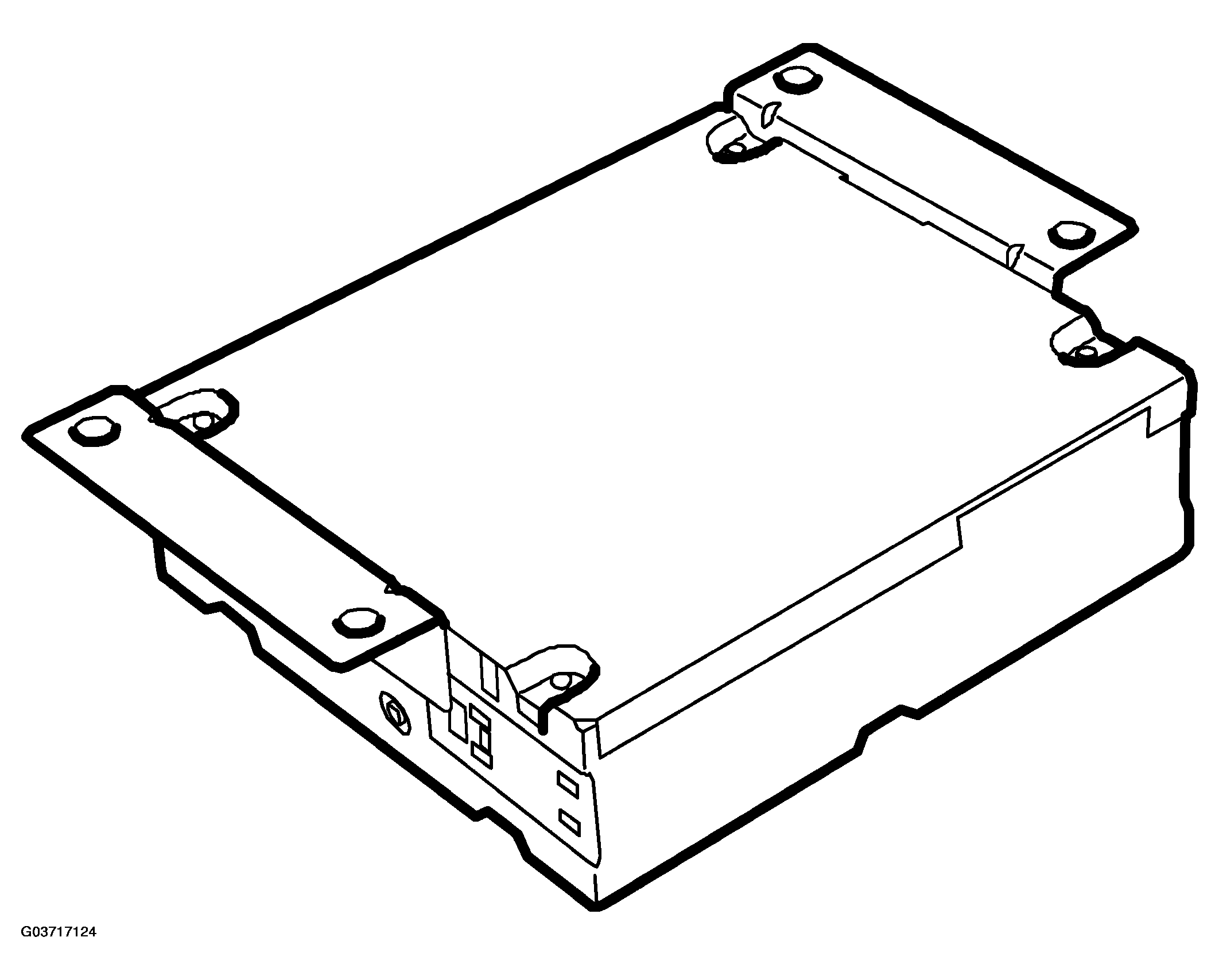

Fig 1: Identifying Navigation Unit

G03717124

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NAVIGATION UNIT SPECIFICATION

GPS/AMPS antenna	Pin no.	1, 2
Microphone	Pin no.	4, 5
+30	Pin no.	10
Ground	Pin no.	20
O-bus (receiver)	O-bus connection	1
O-bus (transmitter)	O-bus connection	2
