Brief description, Navigation: Overview

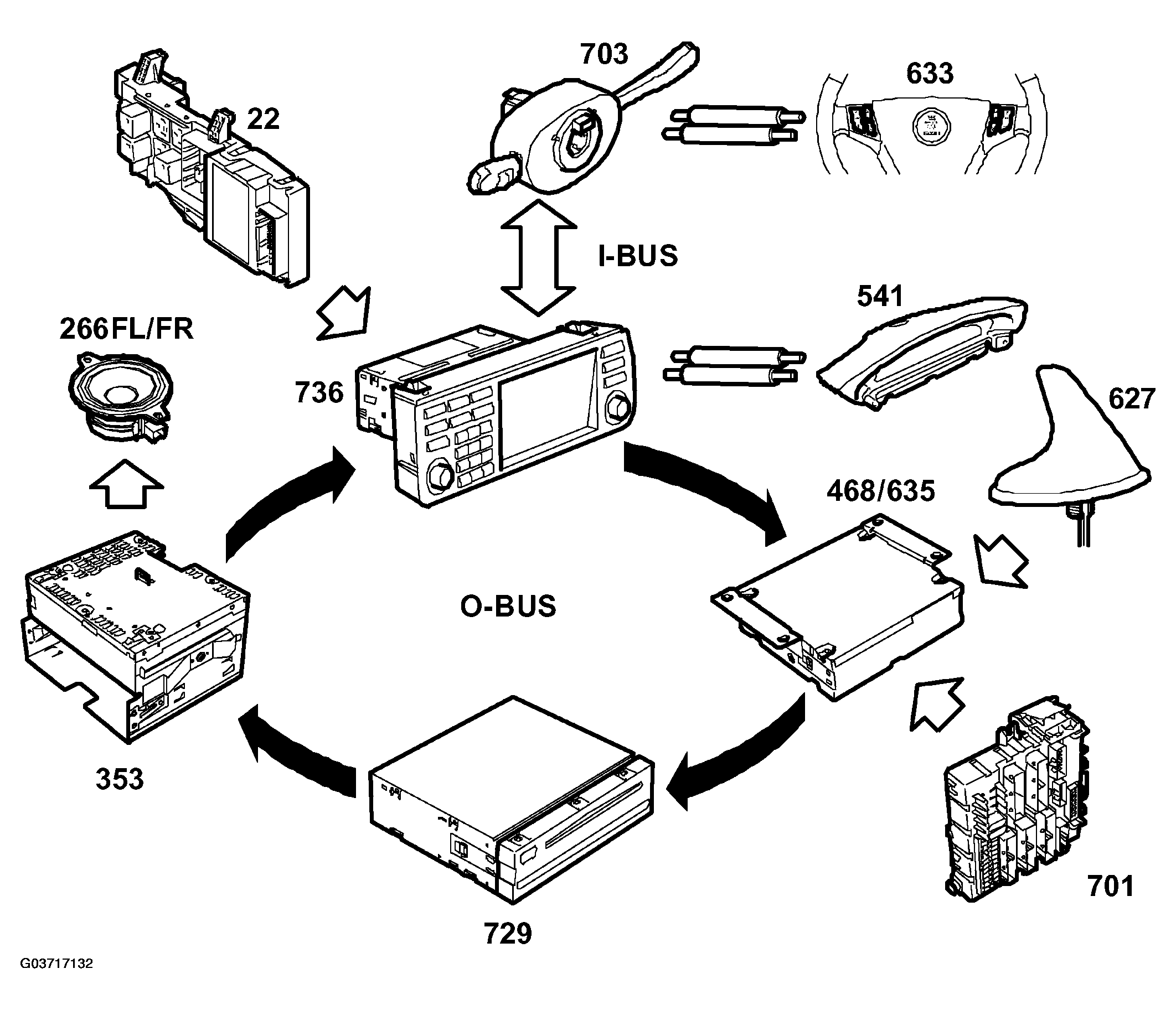

Fig 1: Identifying Electrical Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Electrical center, dashboard (22)
• Speaker (266 FR, FL)
• Entertainment Head Unit, EHU (353)
• Antenna, GPS/GSM (467)
• Navigation unit, CU/PU (468/635)
• SID (541c)
• Steering wheel controls (633)
• Rear Electrical Center, REC (701)
• DVD unit (729)
• Control panel, Infotainment system 3, ICM3 (736c)
