Home › Saab › 2004 › 9-3 Linear, Automatic › Repair and Diagnosis › Electrical › Starter › Starting System › Component location › Fuse 31, engine bay main fuse box 342, maxifuse › Notes

Fuse 31, engine bay main fuse box 342, maxifuse: Notes

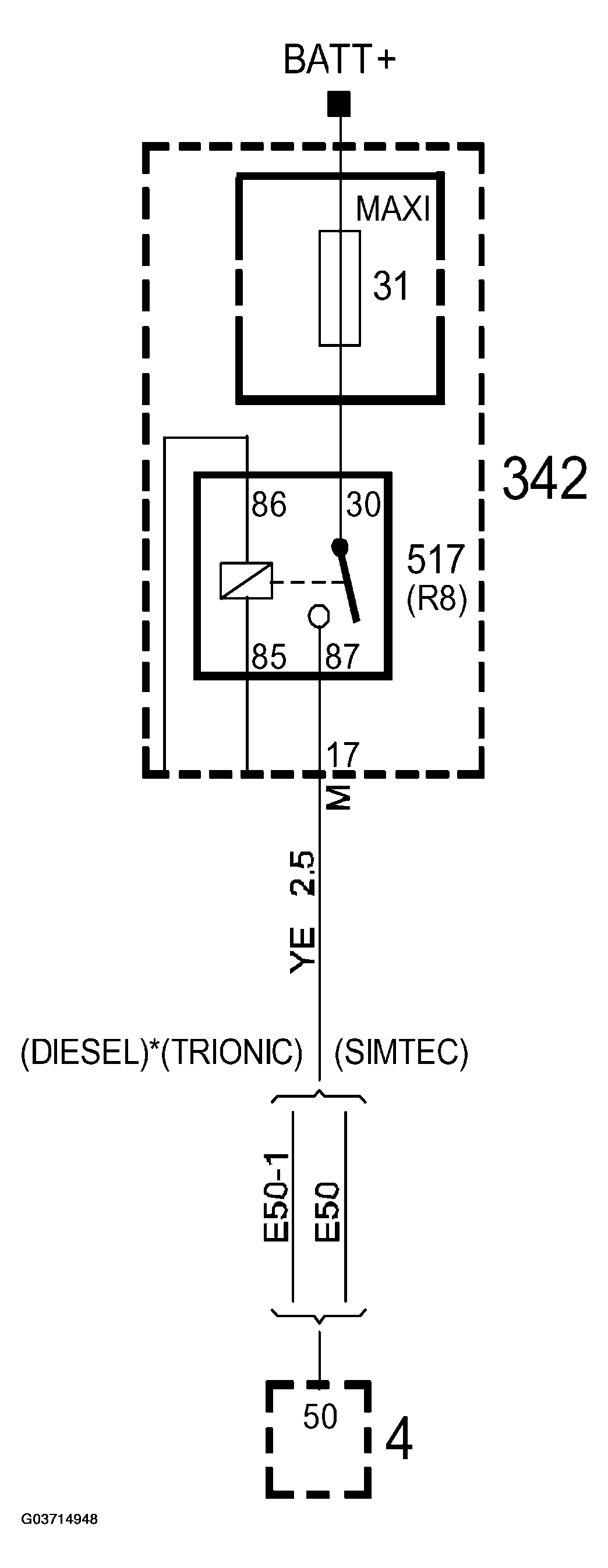

Fig 1: Engine Bay Main Fuse Box Circuit Diagram
G03714948Courtesy of SAAB-SCANIA OF AMERICA, INC.
