Fuse 6, engine bay fuse box 342: Notes

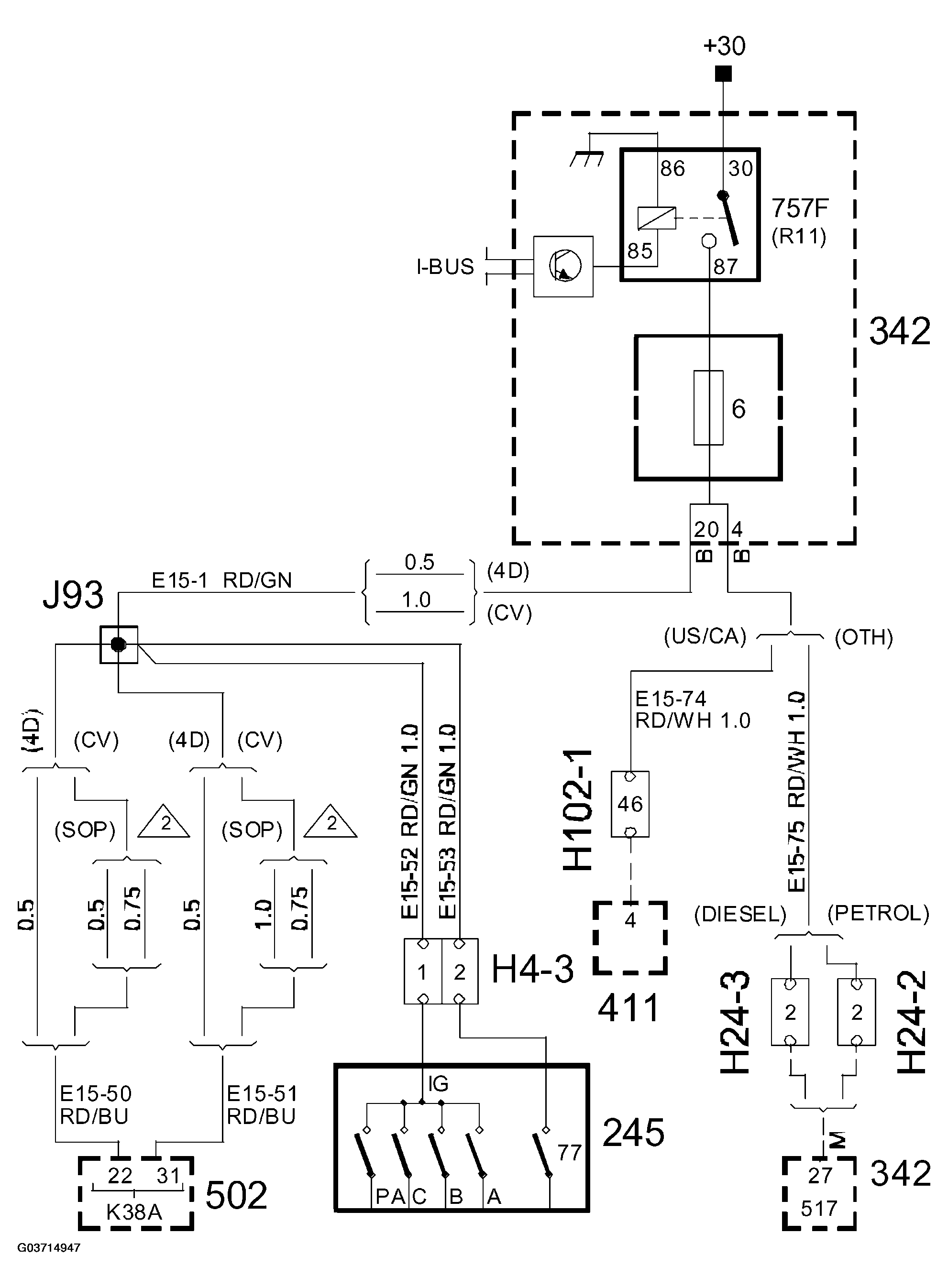

Fig 1: Engine Bay Fuse Box Circuit Diagram
G03714947Courtesy of SAAB-SCANIA OF AMERICA, INC.
