Starter motor, Z18XE: Notes

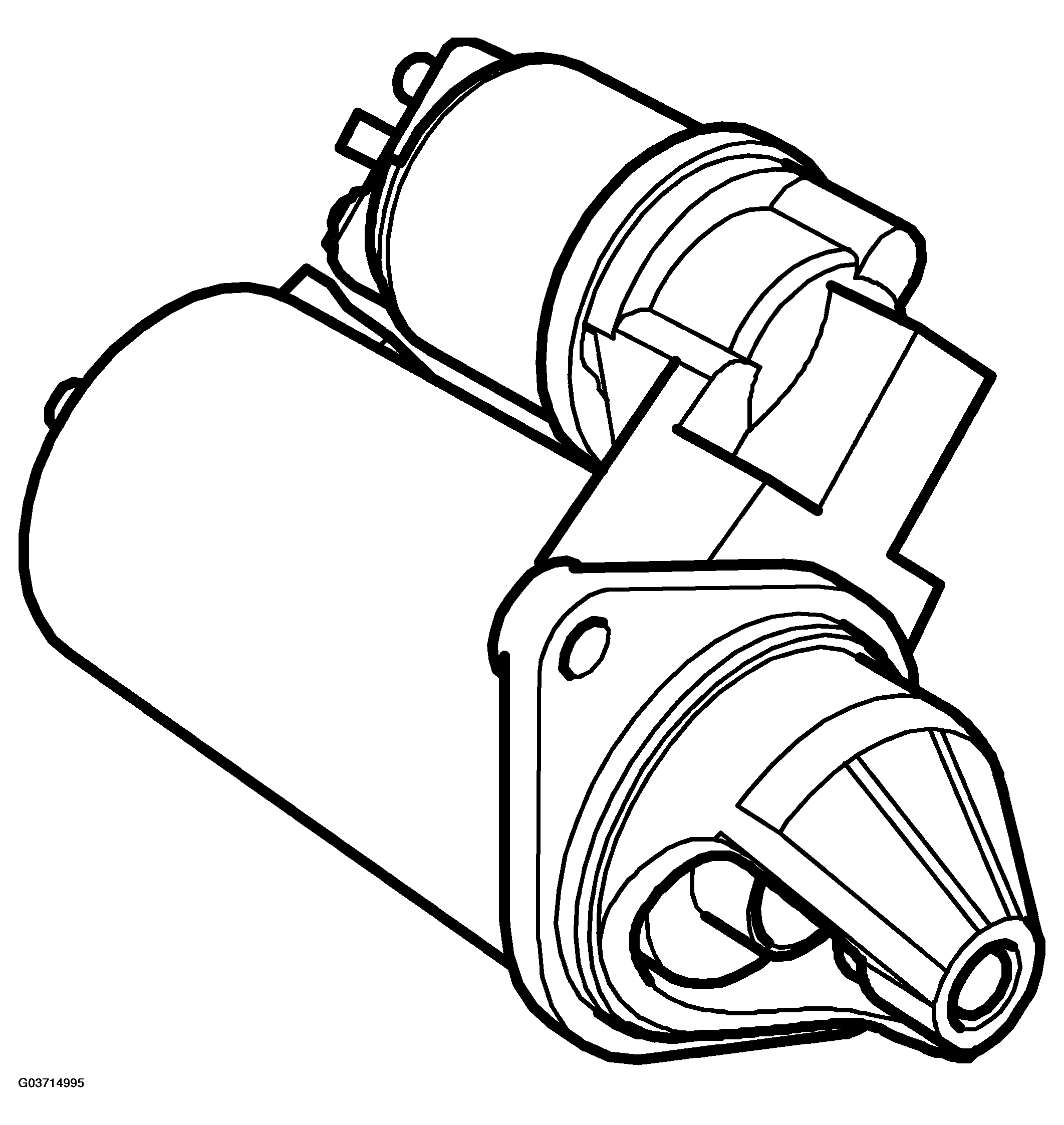

Courtesy of SAAB-SCANIA OF AMERICA, INC. STARTER MOTOR DESCRIPTION (Z18XE)
| Type designation |
|
Bosch R70-M10 12V |
| Power |
kW |
1.35 |
| No. of teeth on starter motor pinion |
|
9 |
| Number of teeth on ring gear |
|
135 |
| Ratio engine/starter motor |
|
15:1 |
