To remove

  1. Remove TIMING CHAIN AND CAMSHAFT SPROCKET  .
  2. Remove the chain tensioner and chain guide rails.

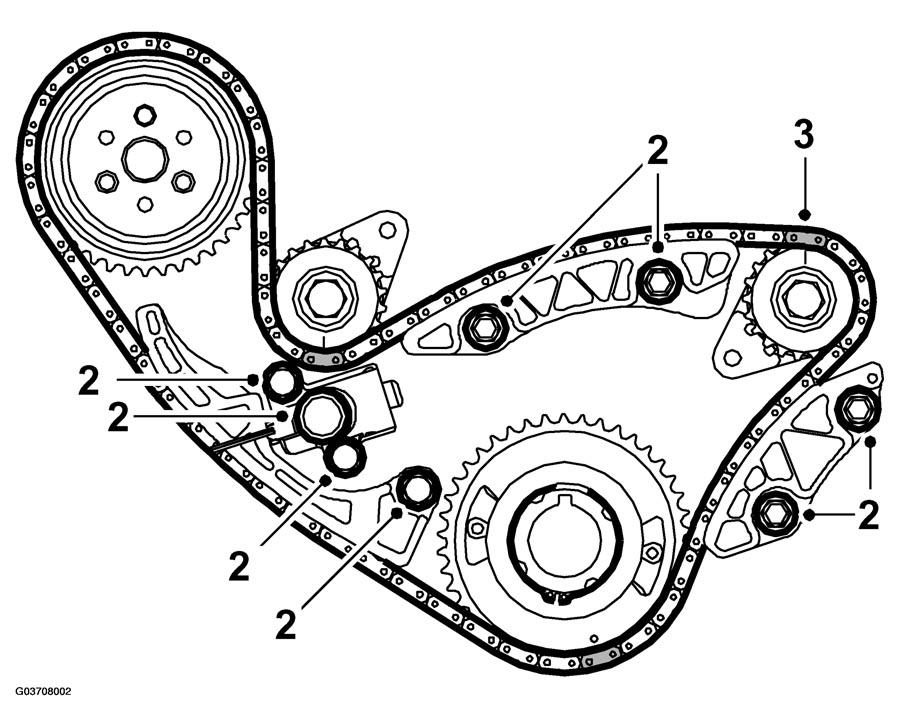

    Fig 1: Illustration For Steps 2, 3
    G03708002Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the chain.
