To fit

Fit the oil pump pinions. The markings on the pinions must be turned to the timing cover.
Lubricate the pinions with engine oil.

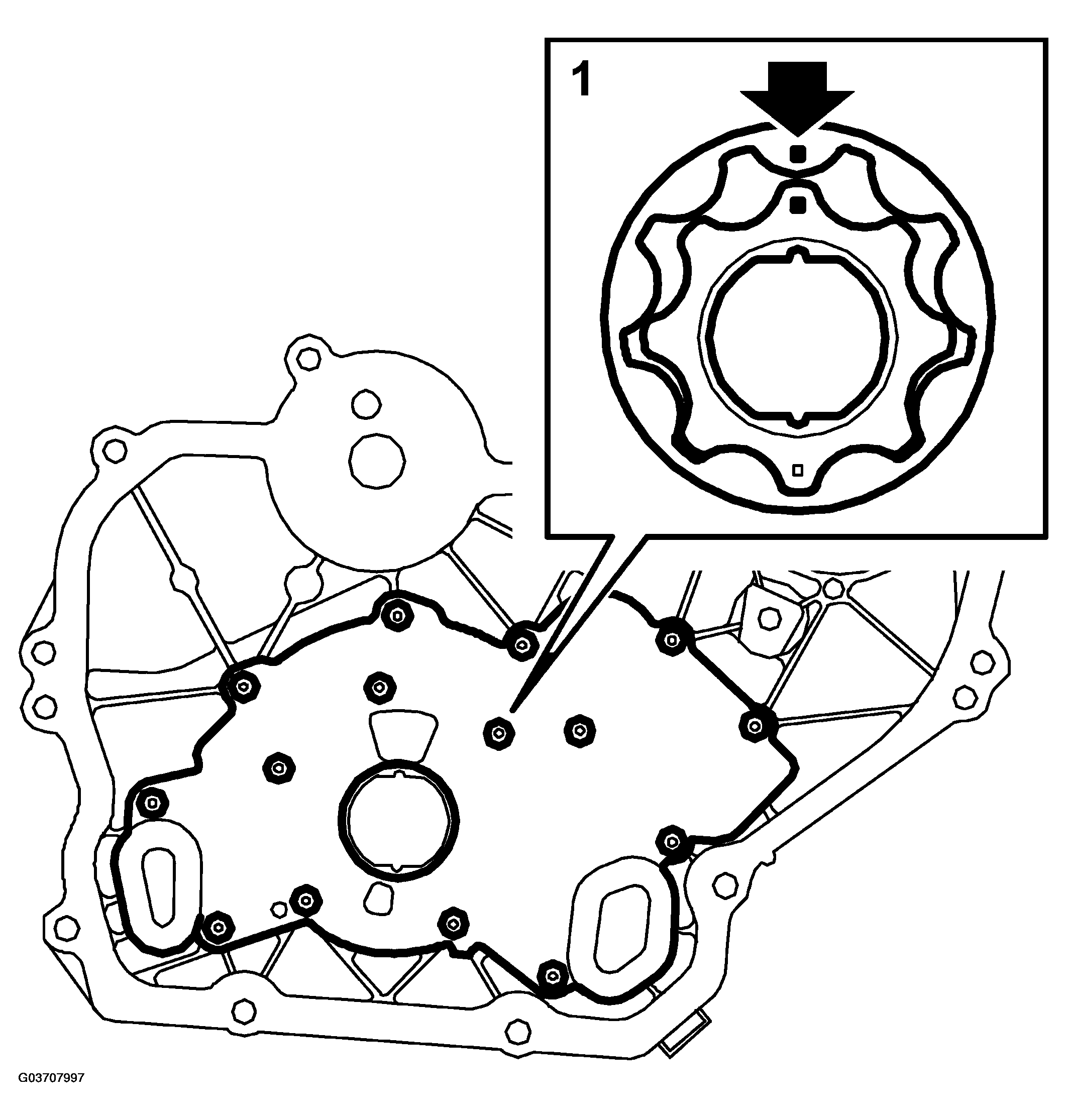

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the oil pump cover.
Tightening torque 6Nm (4 lbf ft)

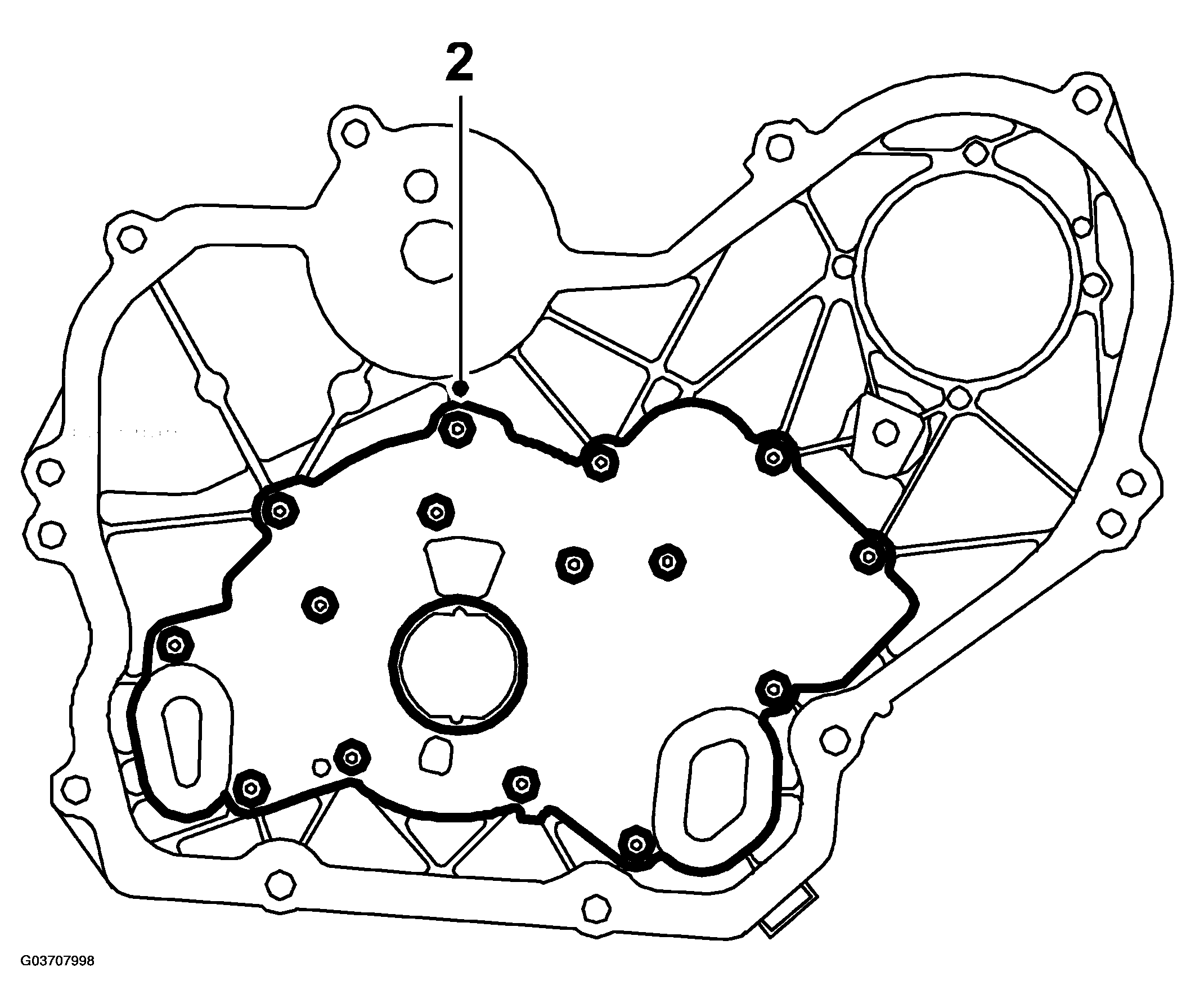

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the oil pressure valve with the piston and the spring. Replace the gasket.
Tightening torque 40 Nm (29 lbf ft)

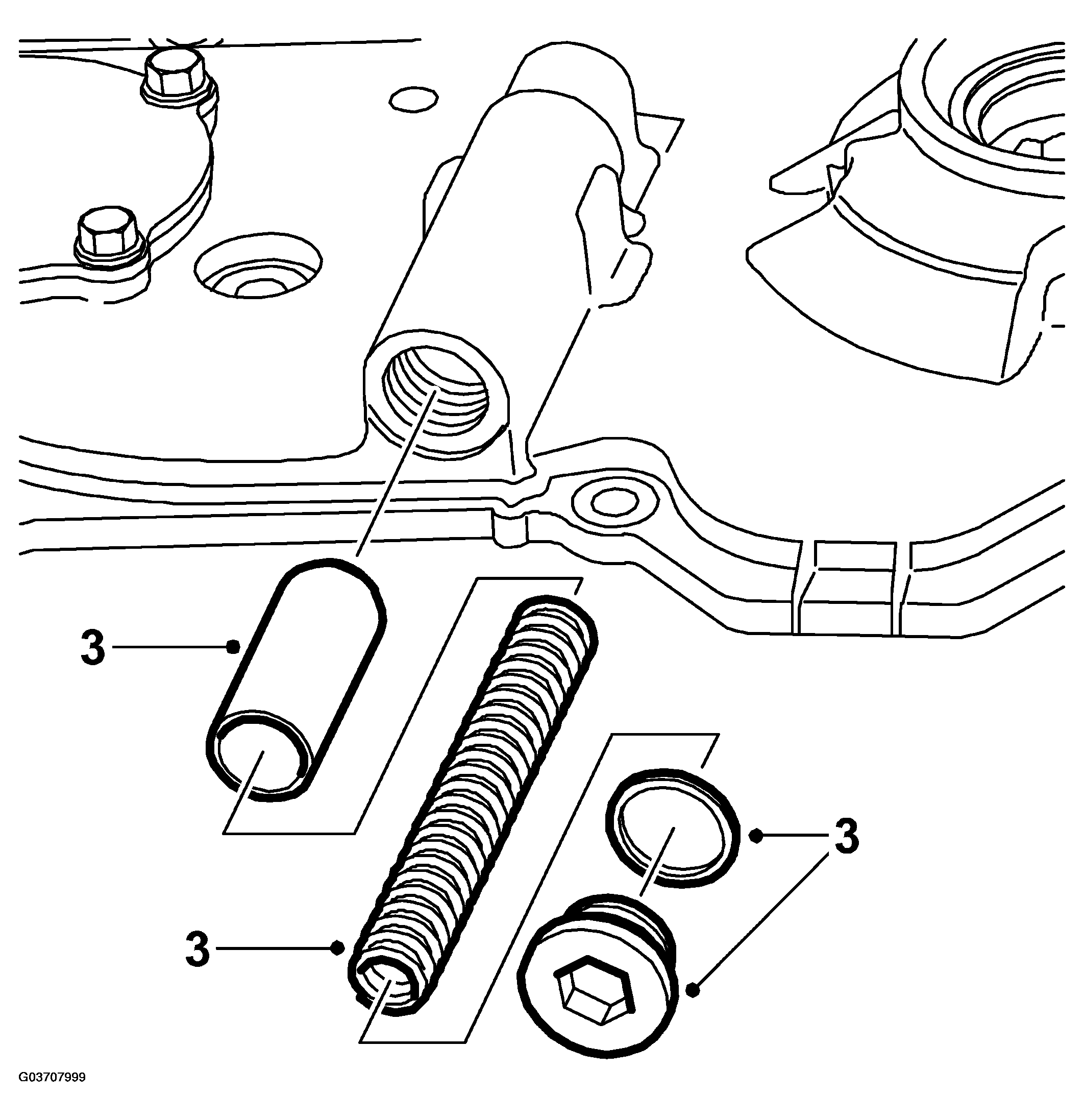

Fig 3: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the TIMING COVER .
