Transmission range switch, automatic (245): Location

Location: On automatic transmission casing in engine bay

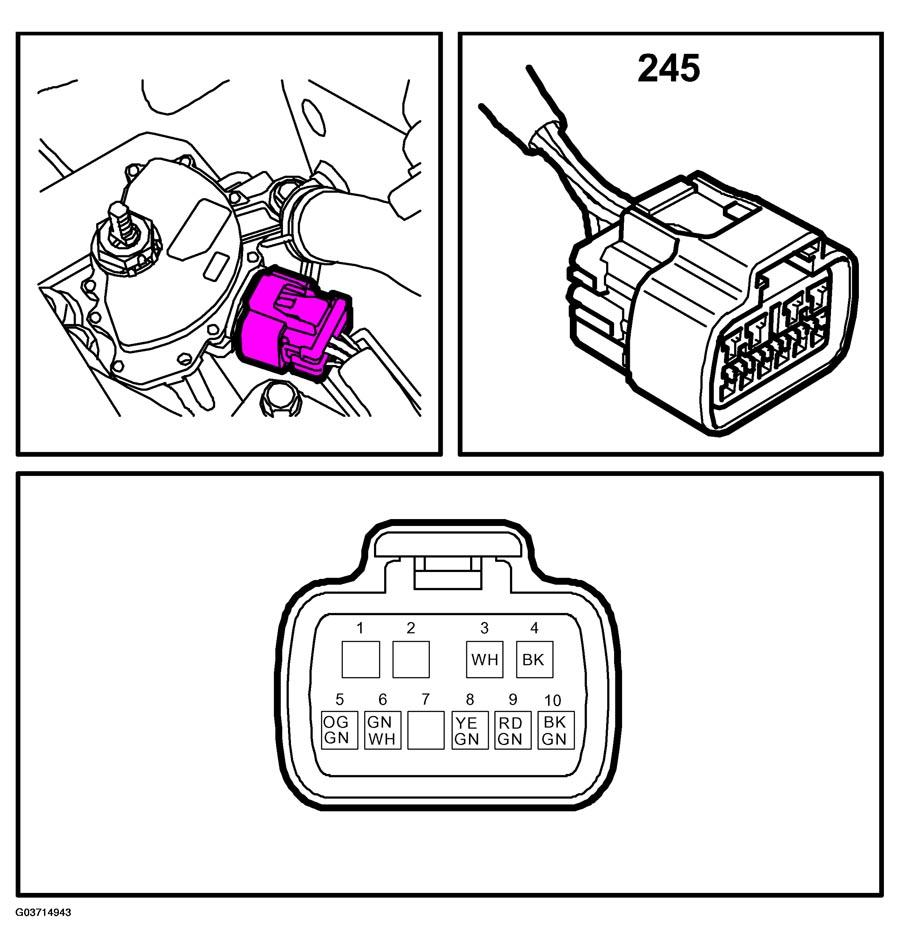

Fig 1: Identifying Transmission Range Switch Connector Terminal

Courtesy of SAAB-SCANIA OF AMERICA, INC.
