To fit

  1. Remove the plug.
  2. Fit a new hose to the filler pipe.
  3. Fit the filler pipe. Tighten the clamp's screw.

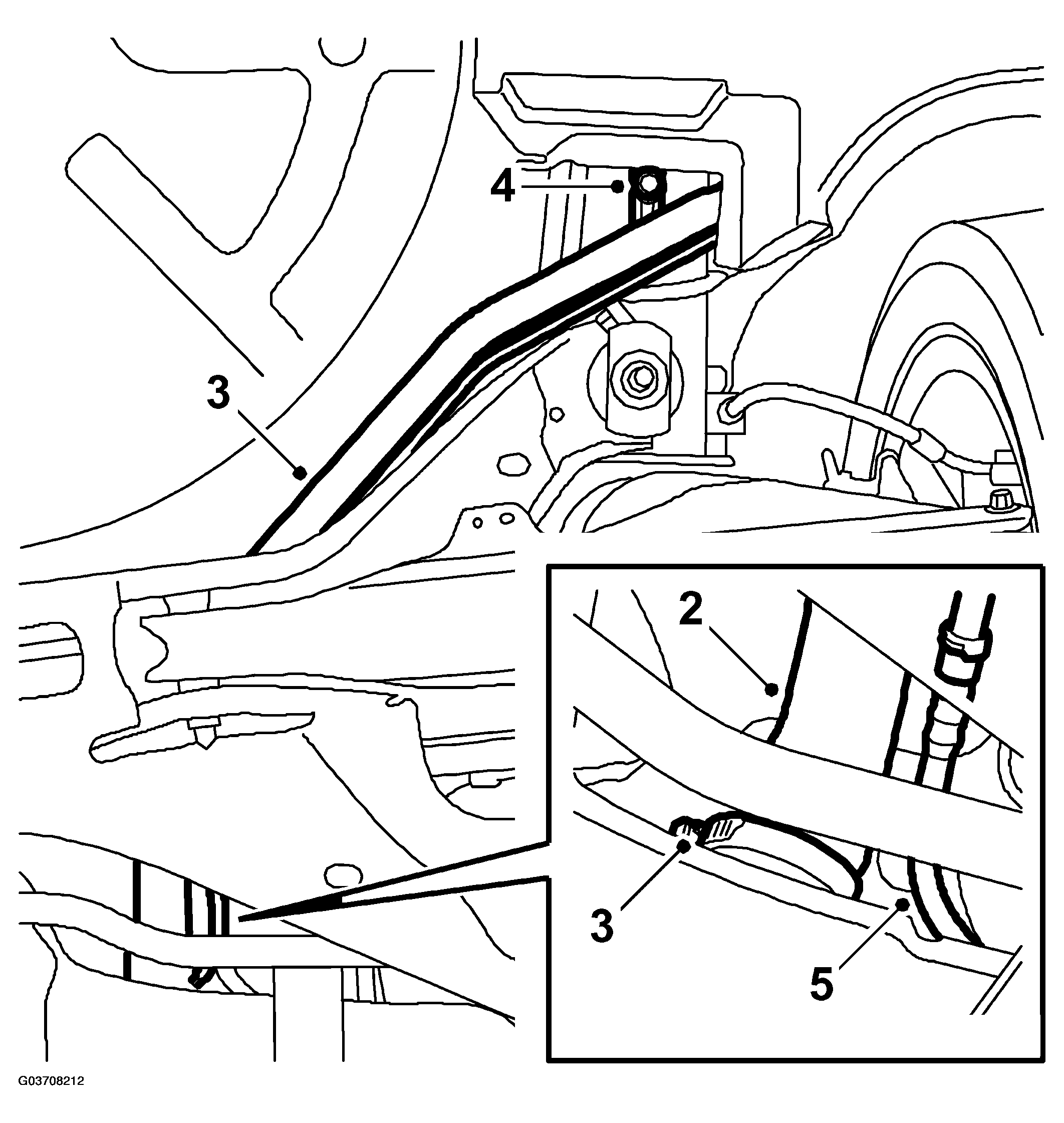

    Fig 1: Illustration For Step 2-5
    G03708212Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the filler pipe screw.
  5. Fit the quick coupling for bleeding.

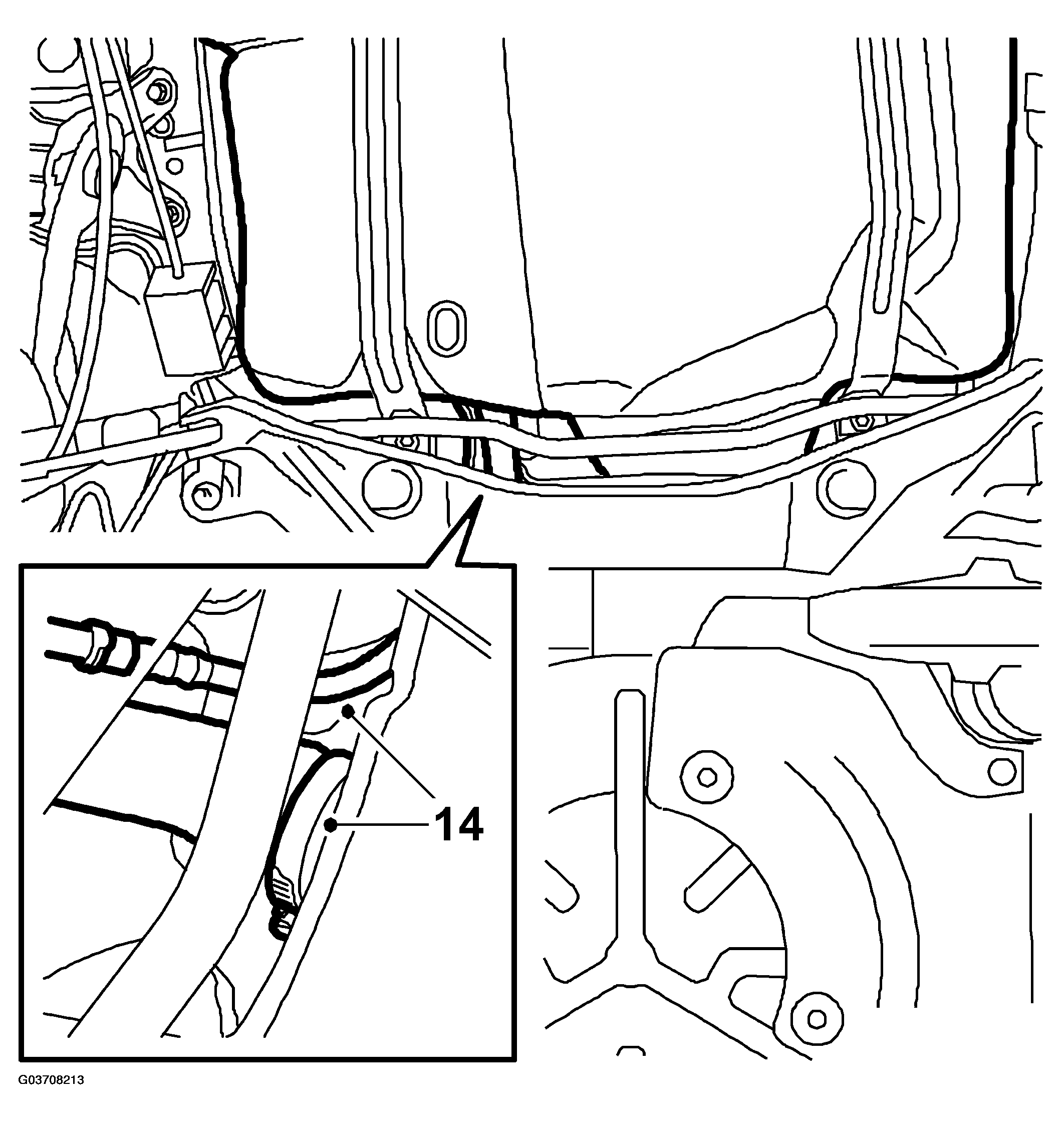

    Fig 2: Illustration For Step 14
    G03708213Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the Wing liner, rear
  7. Fit the Wheel.
