To remove

  1. Drain the fuel tank if necessary. See FUEL TANK .
  2. Remove the rear wheel.
  3. Remove the Wing liner, rear.
  4. Uncouple the quick coupling for bleeding. Detach the filler pipe clamp.

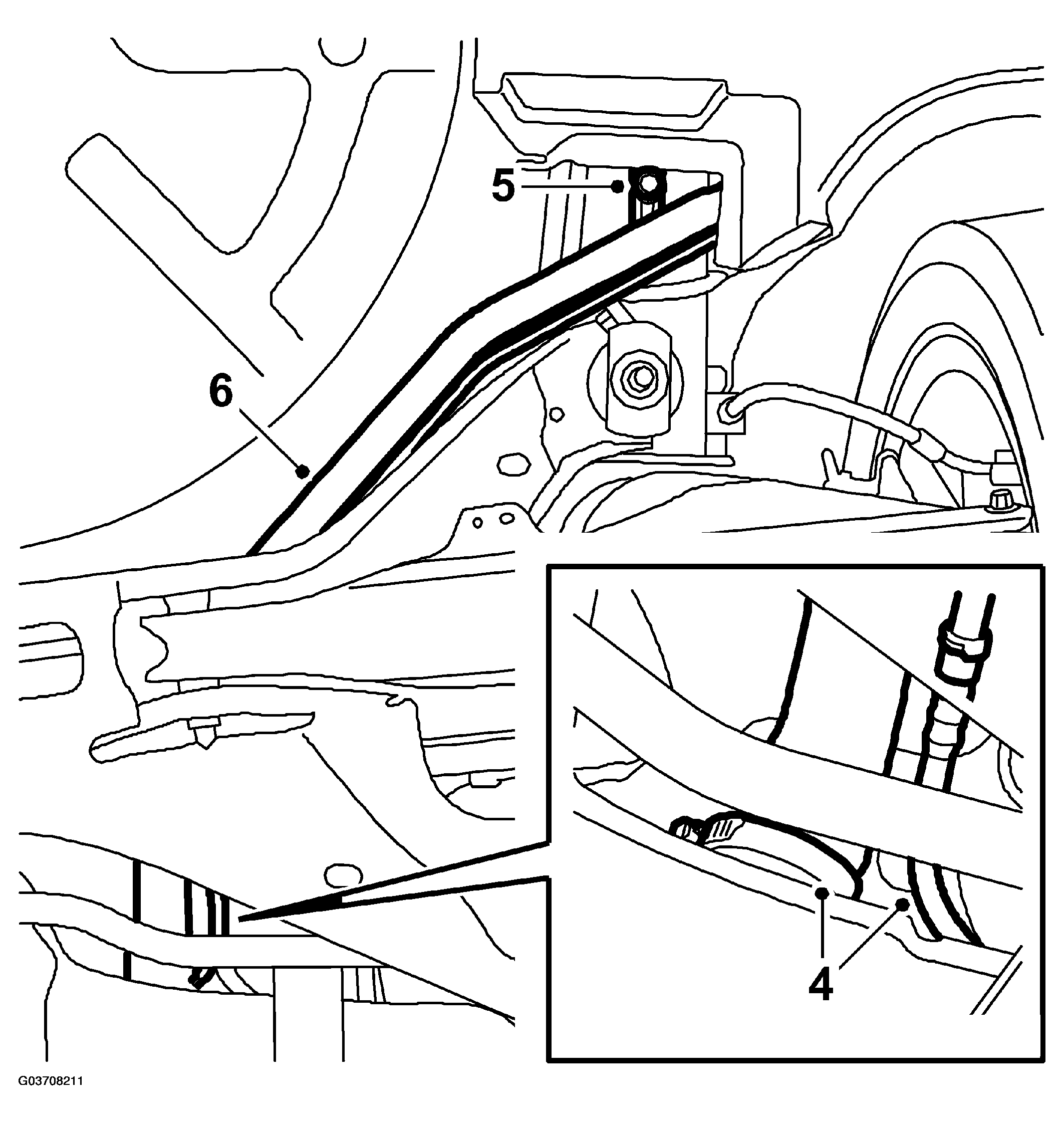

    Fig 1: Illustration For Step 4-5
    G03708211Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the filler pipe screw.
  6. Remove the filler pipe.
