To fit

  1. If changing the fuel pump housing, transfer the wiring.
  2. Connect the fuel hose to the pump.

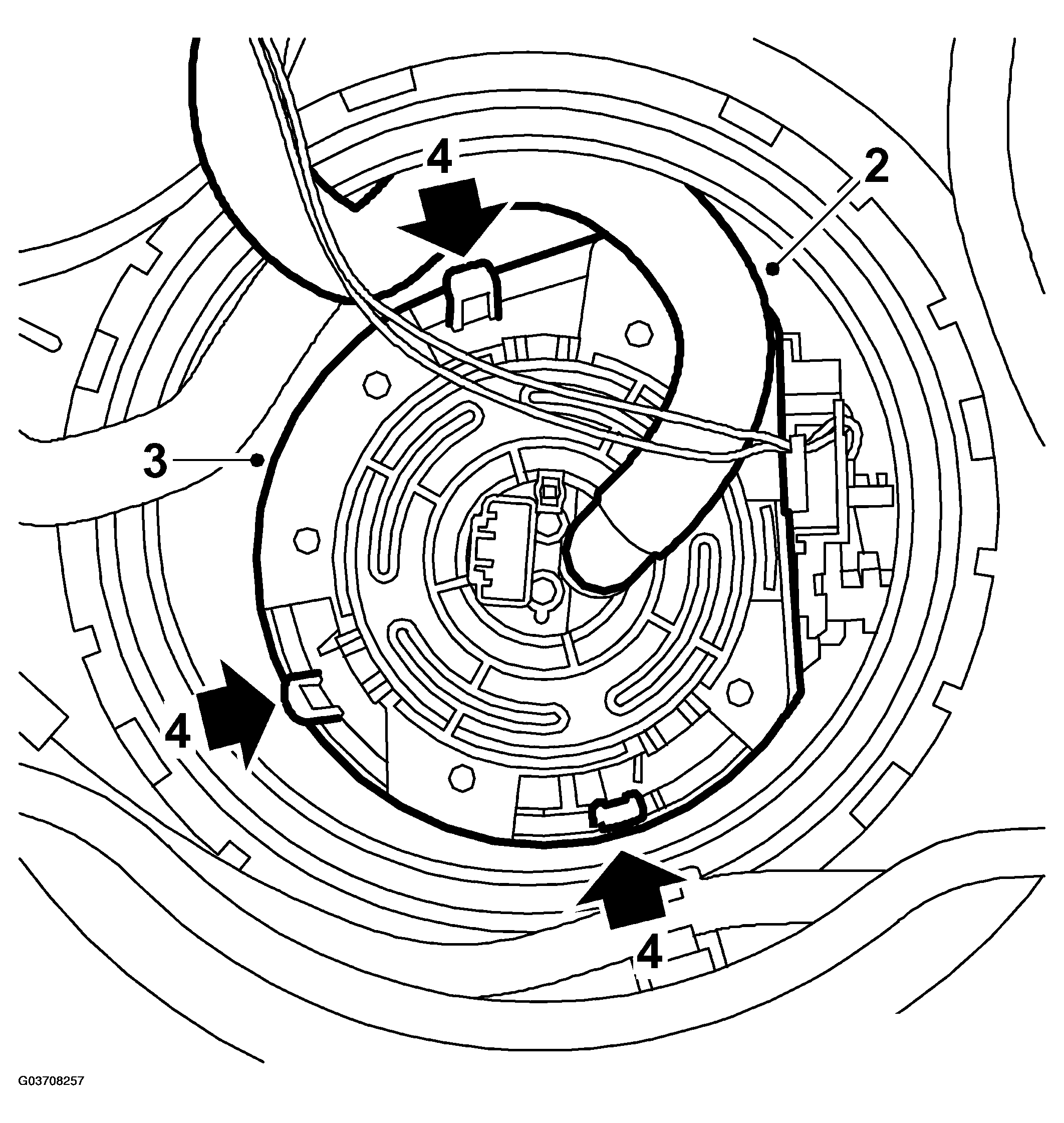

    Fig 1: Illustration For Step 2-4
    G03708257Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Carefully lower the fuel pump into the tank.
  4. Make sure the recesses in the tank connection are in line with the corresponding heels on the pump cover.
  5. Fit a new sealing ring. Check that this is seated properly.

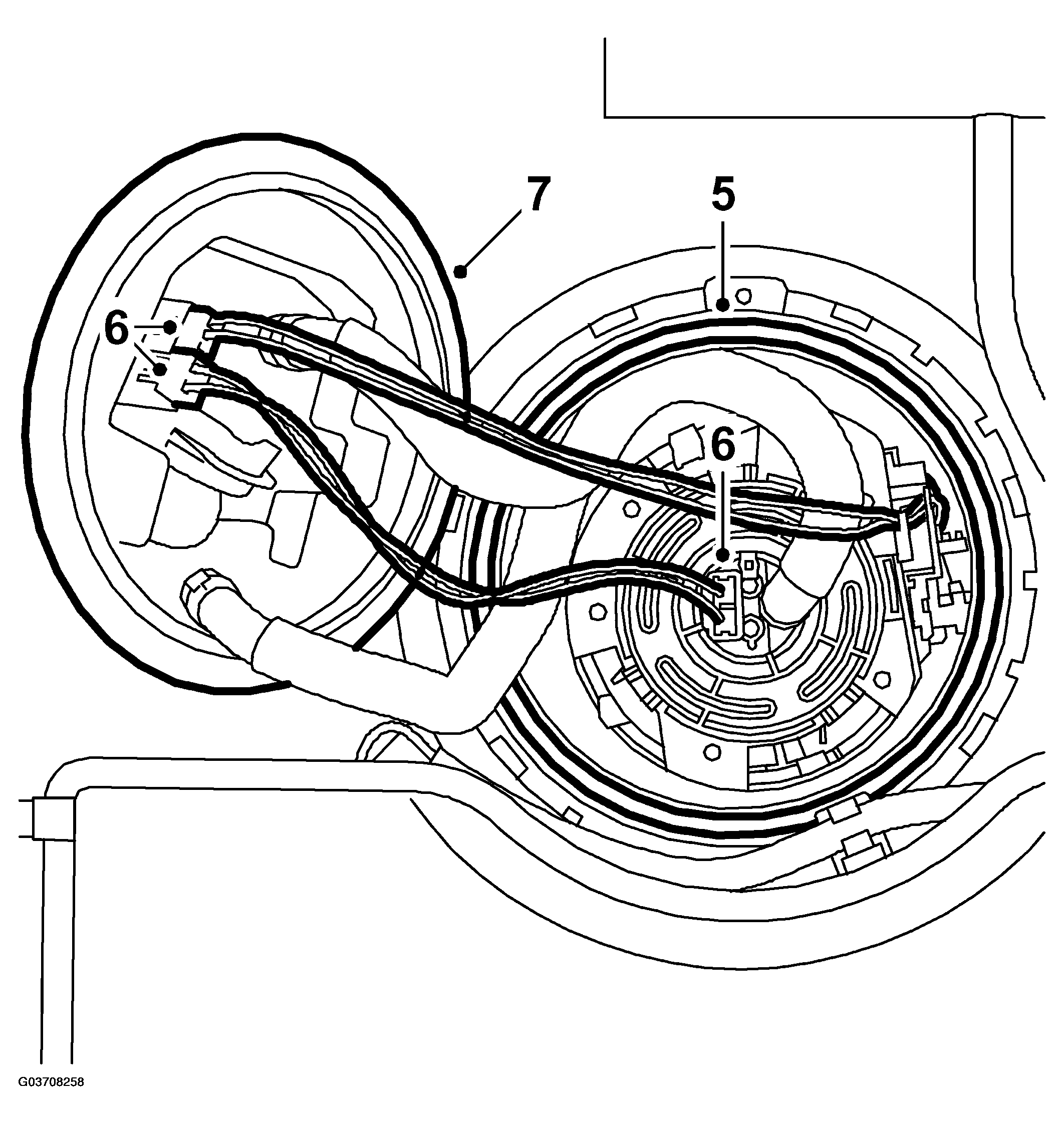

    Fig 2: Illustration For Step 5-7
    G03708258Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Plug in the connectors to the fuel level sensor and fuel pump.
  7. Carefully thread the cover into the maintenance hole.
  8. Fit the circlip. Turn clockwise.

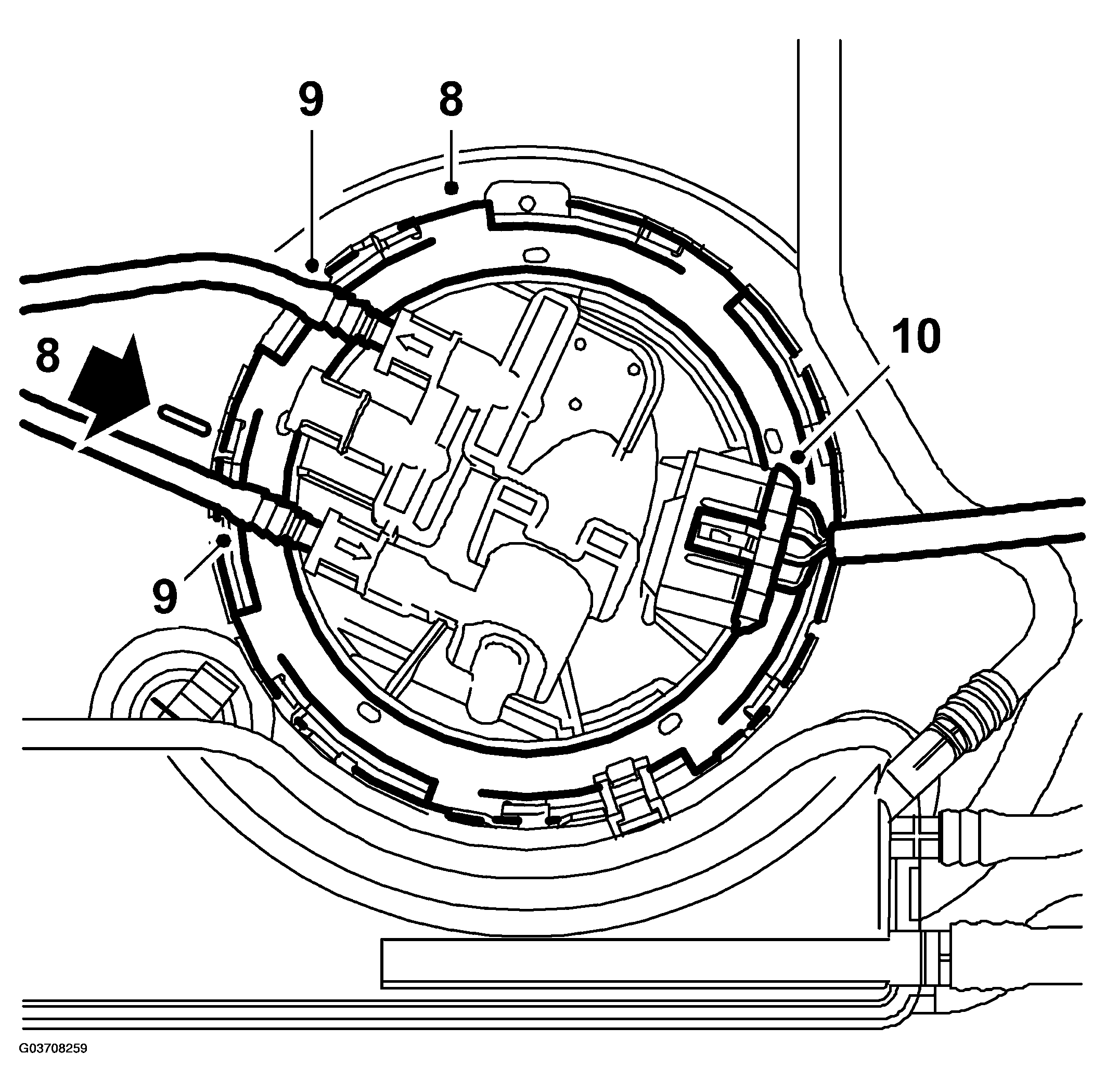

    Fig 3: Illustration For Step 8-10
    G03708259Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Remove the plugs and fit the fuel line.
  10. Fit the connector.
  11. Fit the fuel tank. Refer to FUEL TANK, EU  .
