To fit

Remove the filler pipe and change the connection hose between the tank and the filler pipe.
Use Vaseline to lubricate the filler pipe connection to the filler cap opening.
Fit the filler pipe and tighten the bolts. Check the rubber seal in the filler cap opening, and adjust if necessary.
Raise the tank and refit the tank straps.

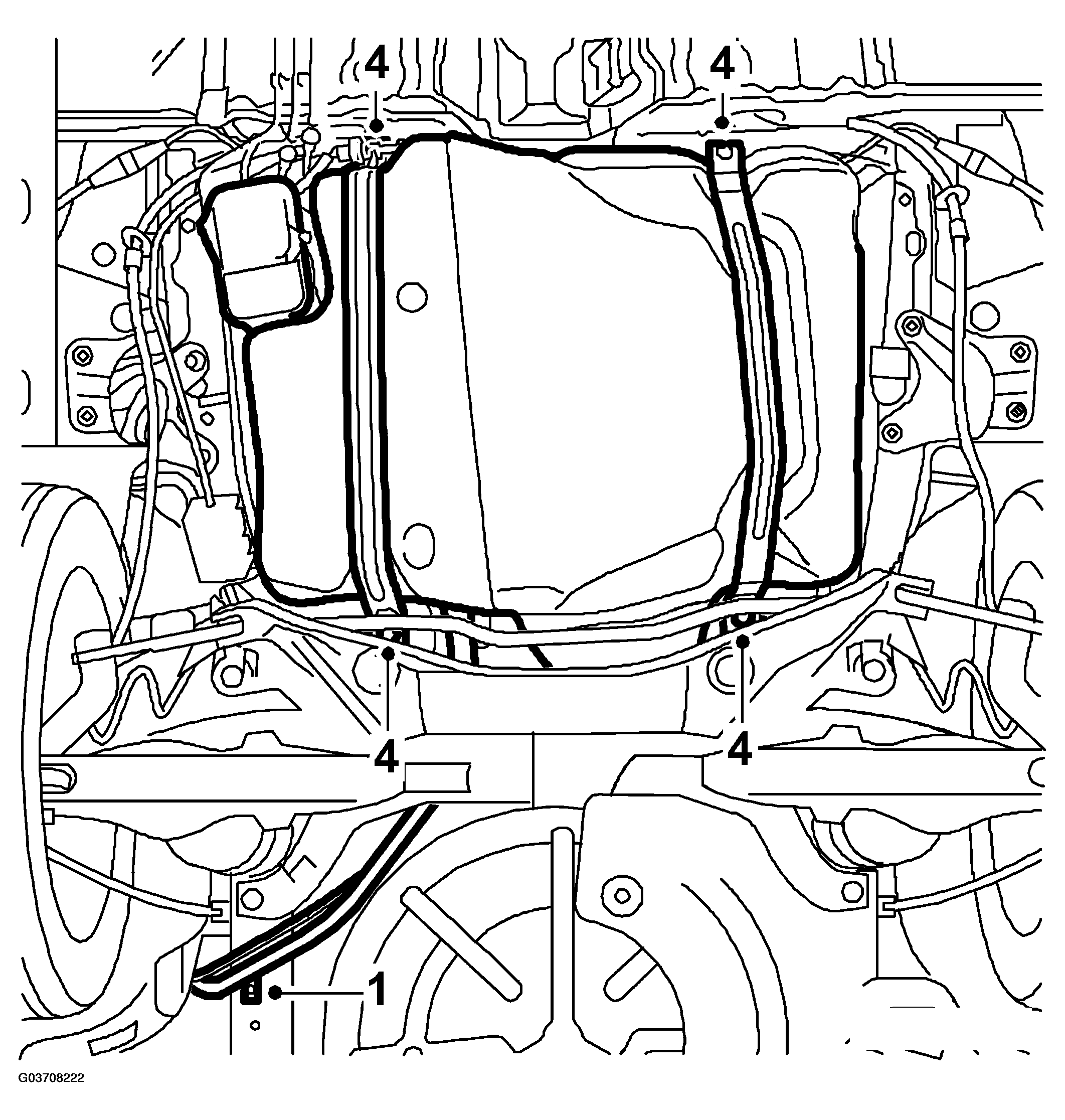

Fig 1: Illustration For Step 1, 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 25 Nm (18 lbf ft) .
Connect the fuel filler pipe hose and tighten the clamp.

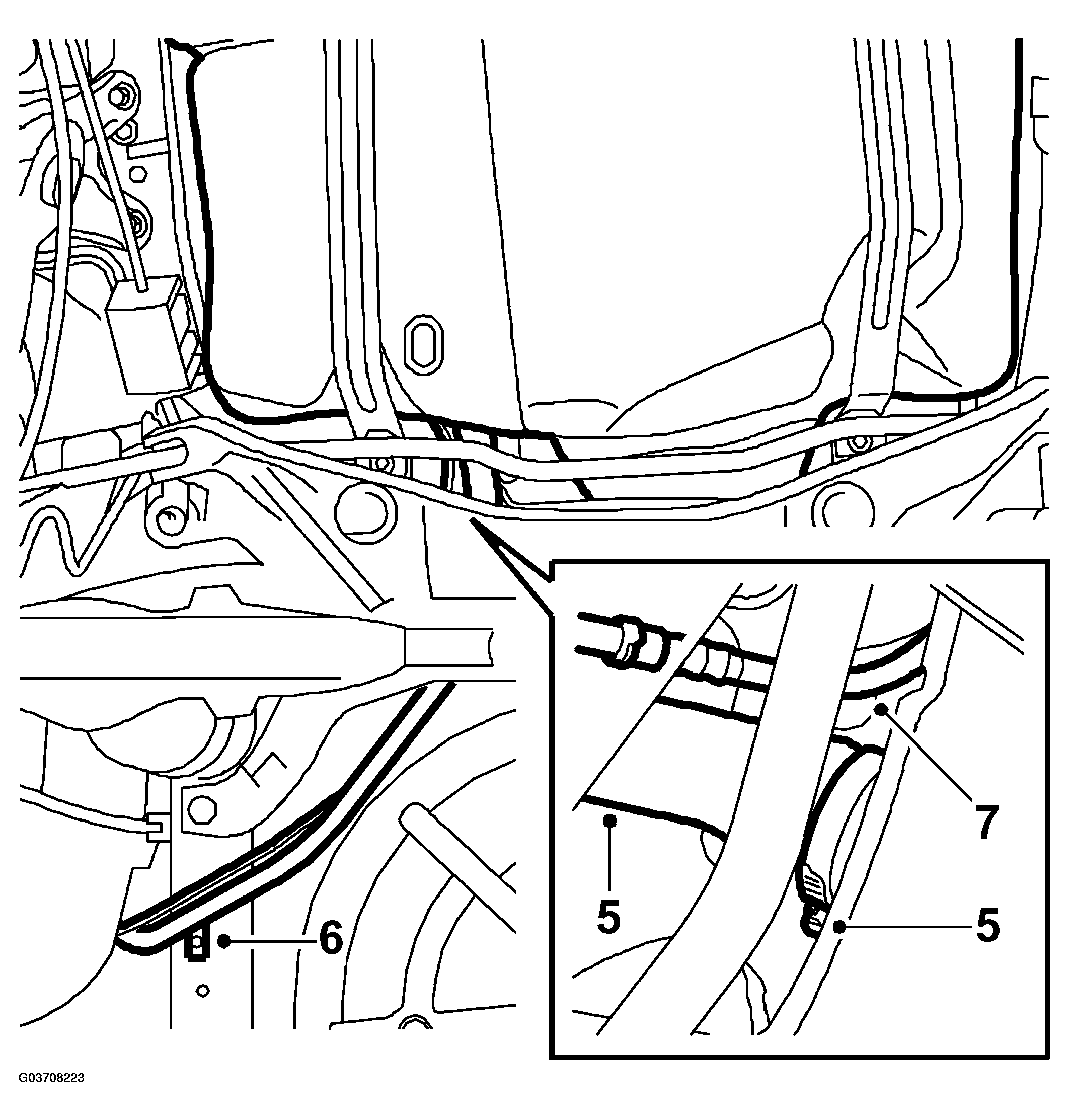

Fig 2: Illustration For Step 5-7
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 4 Nm (3 lbf ft)
Tighten the bolt on the fuel filler tube.
Tightening torque 25 Nm (18 lbf ft) .
Connect vent hose.
Attach the connector to the evaporative emission canister.

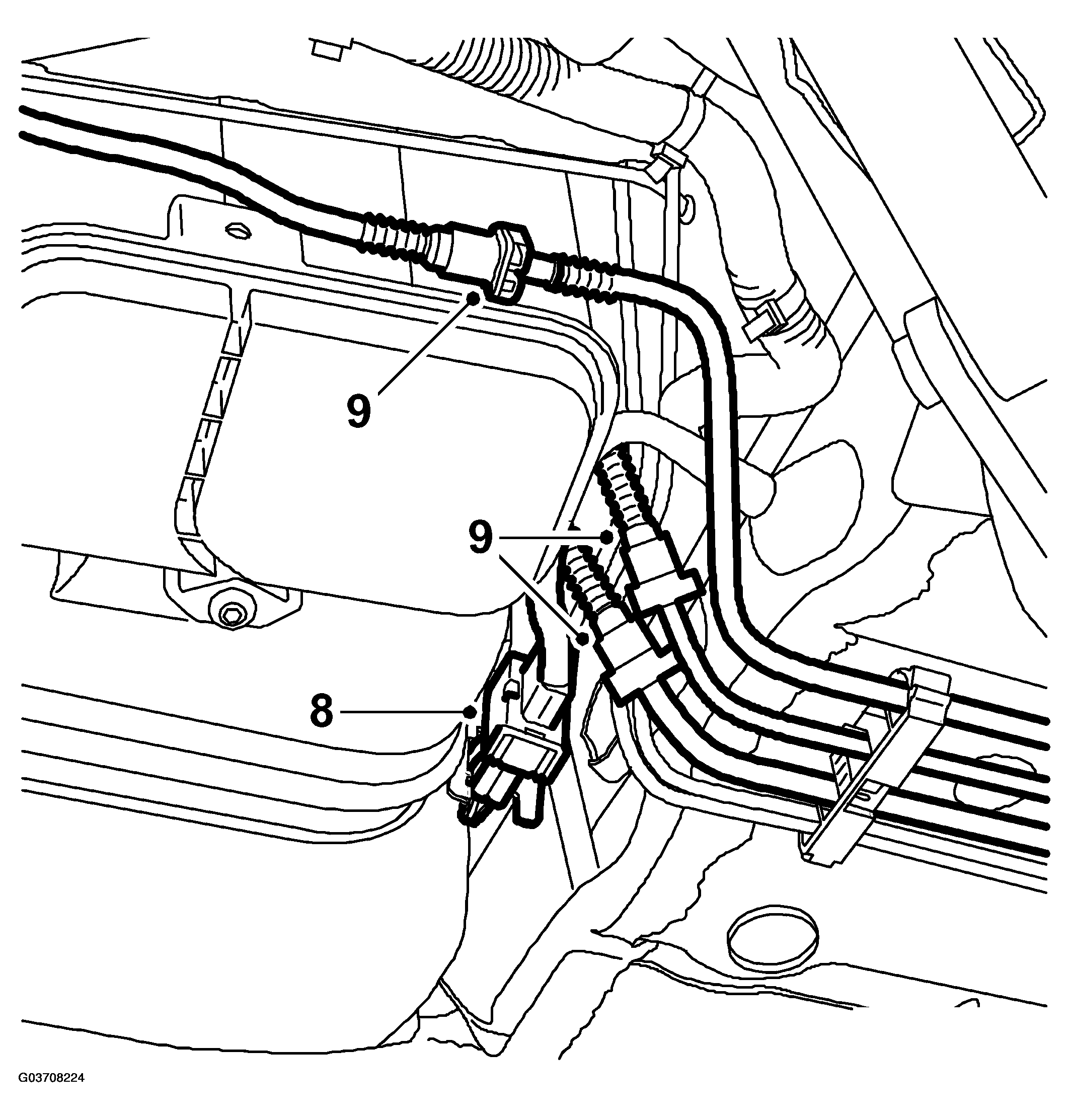

Fig 3: Illustration For Step 8-9
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Connect the vent and fuel lines.
Fold in the wing liner. Press the lower liner edge against the wheel arch. Guide the liner onto the upper stud bolts. Then fit onto the other stud bolts.

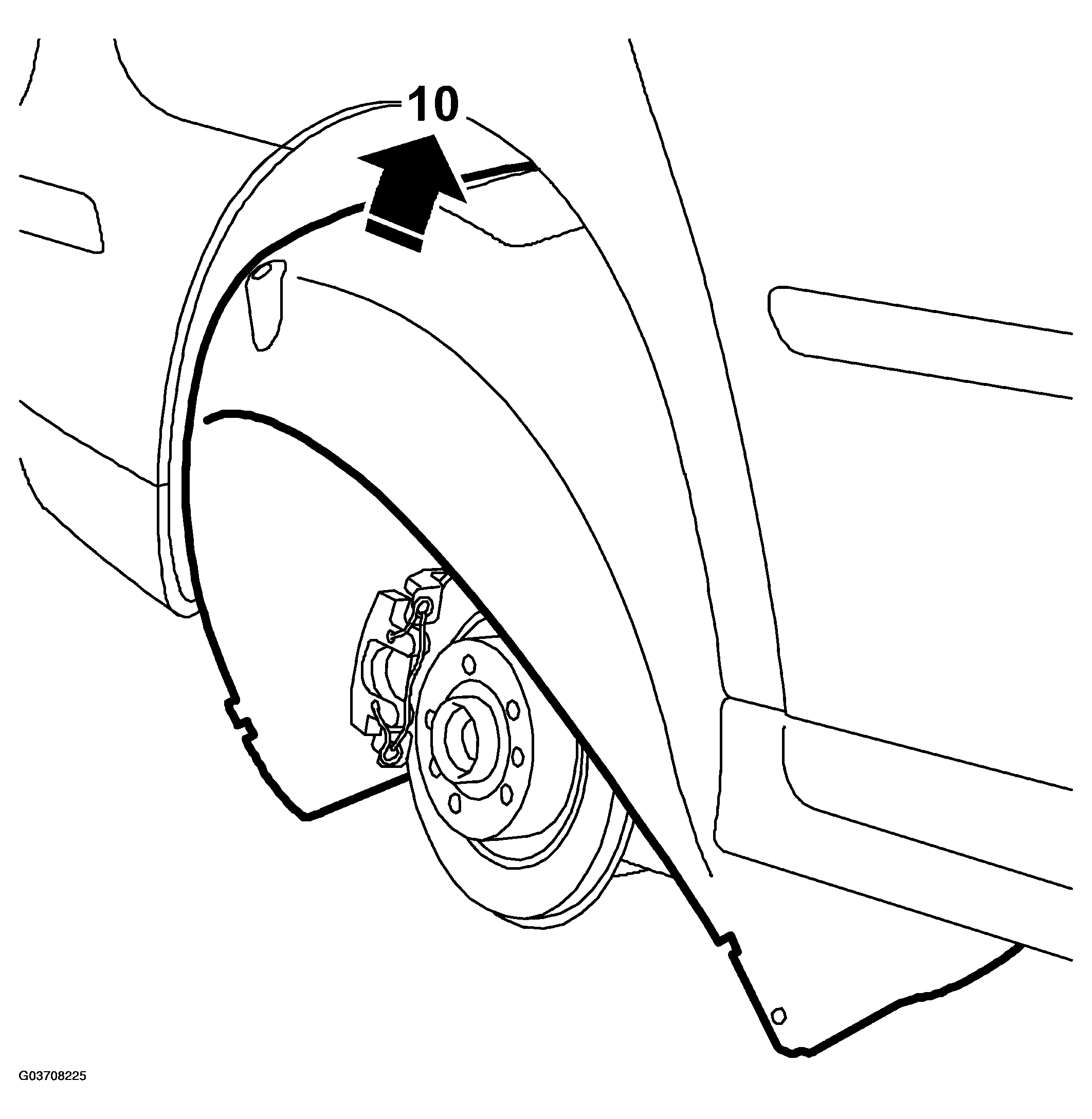

Fig 4: Illustration For Step 10
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the wing liner to the liner edge and bumper cavity. The wing liner should lie behind the bumper cavity.

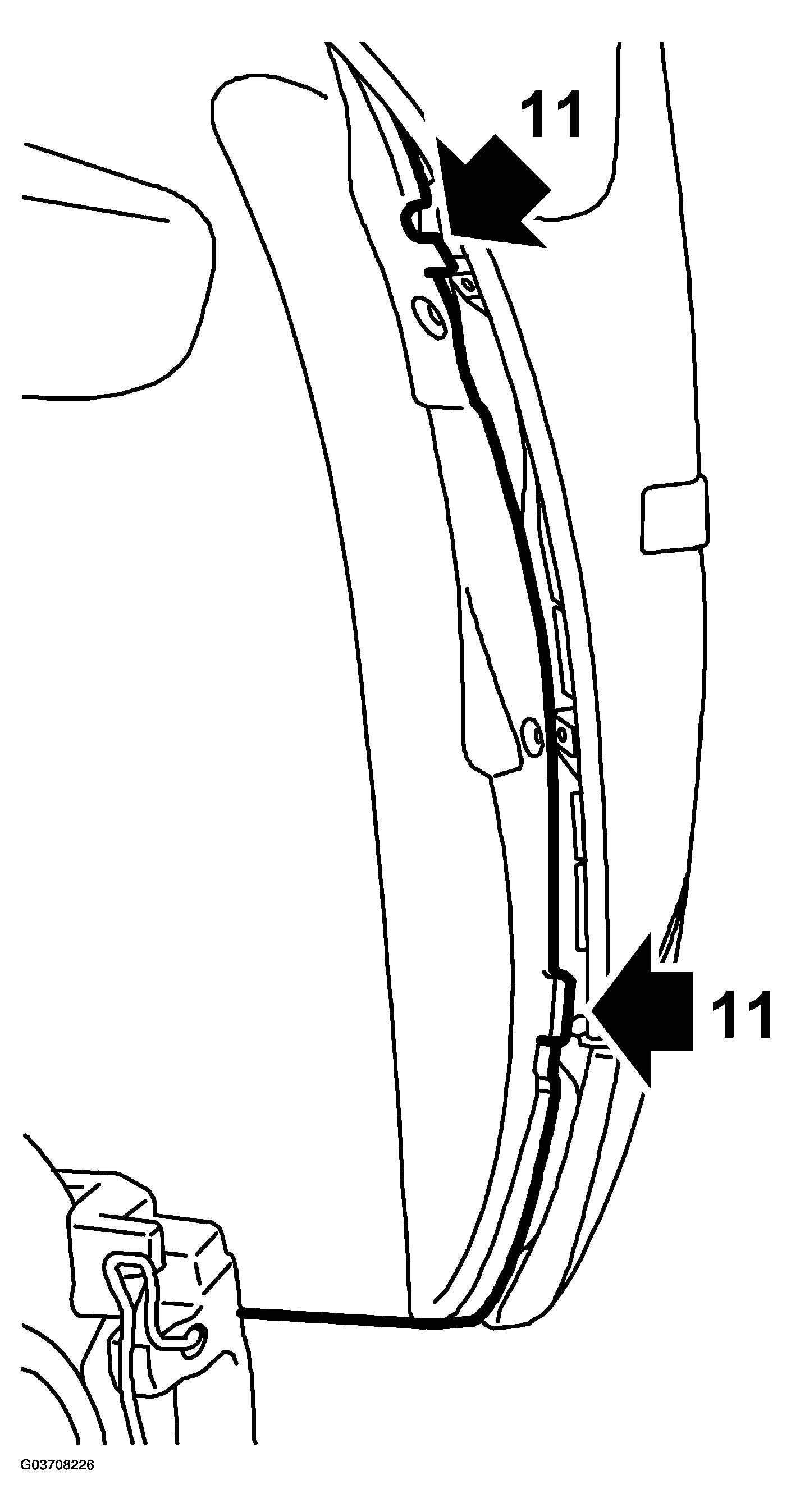

Fig 5: Illustration For Step 11
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Check the fit of the wing liner.
Attach the rear spoiler shield.

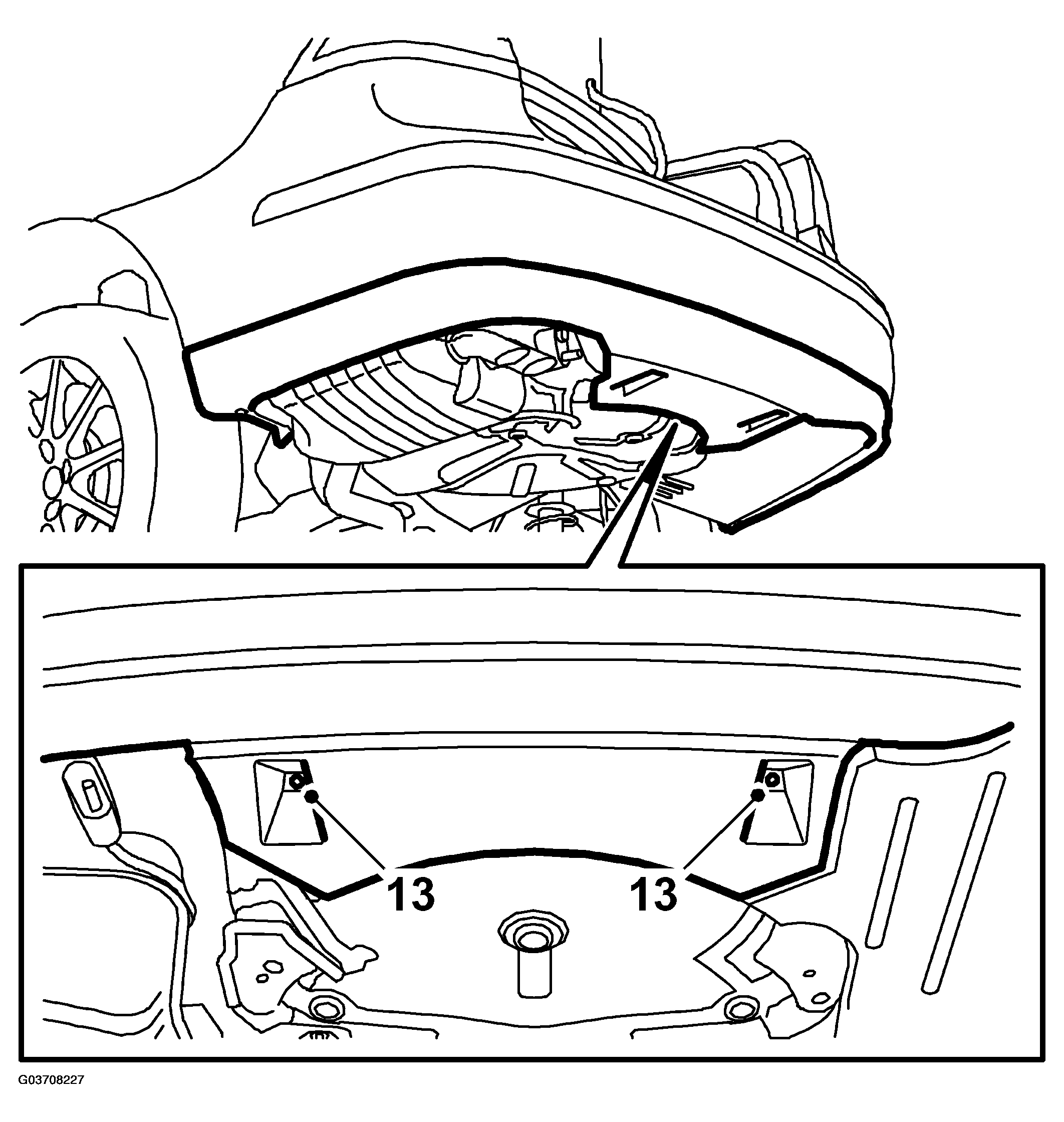

Fig 6: Illustration For Step 13
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refit all bolts and nuts.

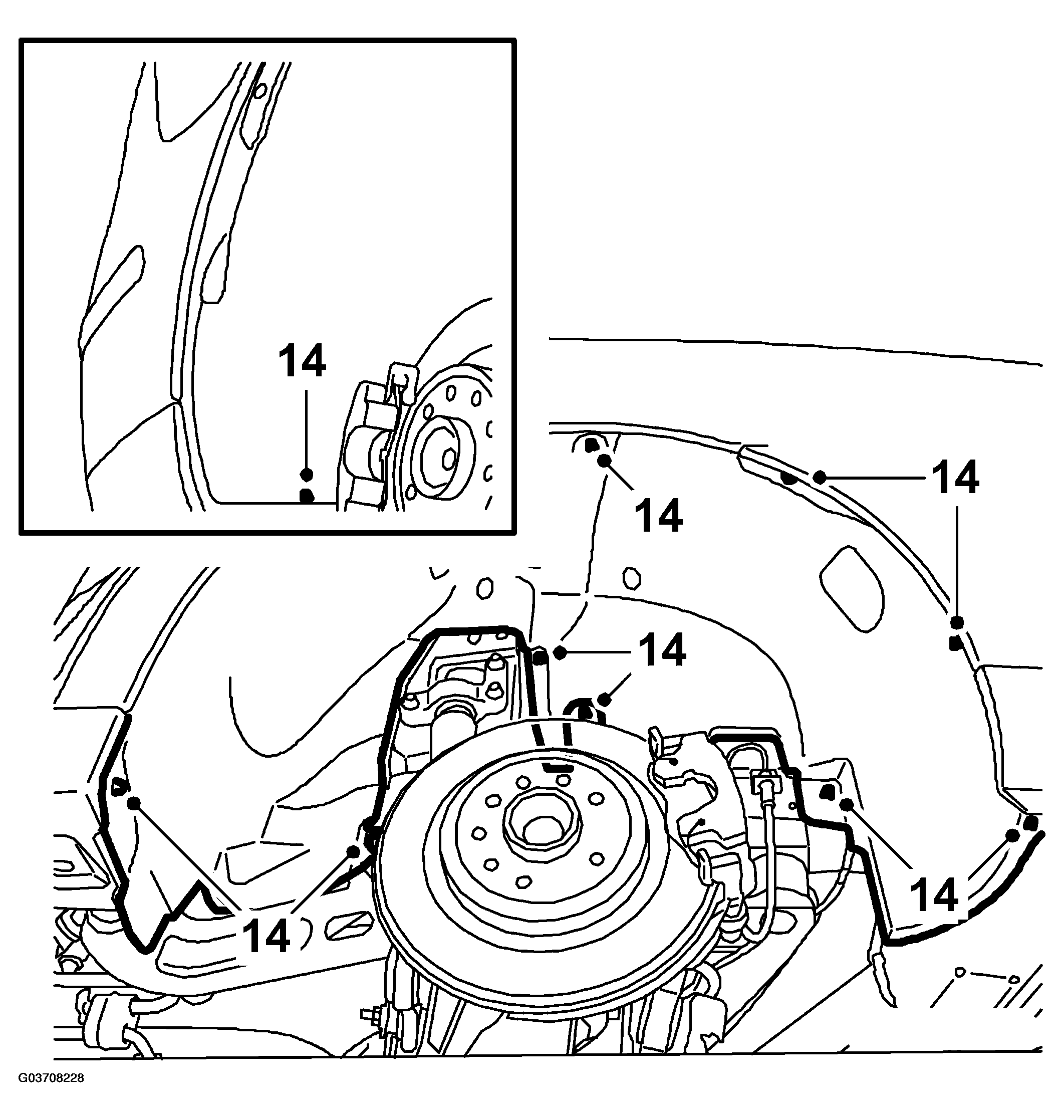

Fig 7: Illustration For Step 14
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit Wheel.
Fit the rubber mounts and exhaust system. CV: Fit Chassis reinforcement, rear support frame, CV right side and Chassis reinforcement, center tunnel, CV,.

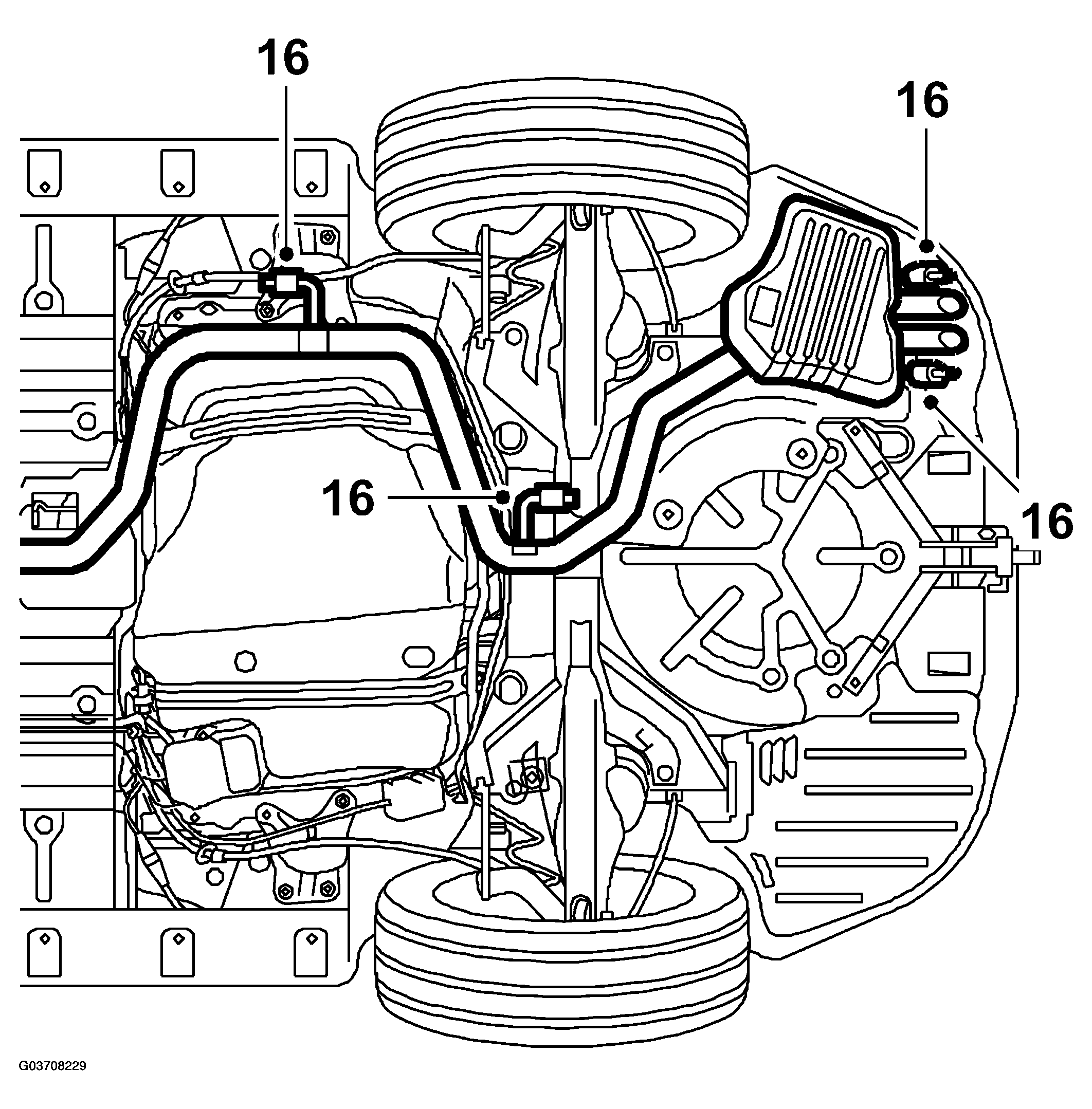

Fig 8: Illustration For Step 16
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lower the car.
Fill with petrol of the correct octane rating, and fit the filler cap.
Connect and exhaust extractor and start the engine for function test.
