Crimp J40, engine harness, Trionic: Location:

Approximately 190 mm from crankshaft position sensor branching point towards the engine control module

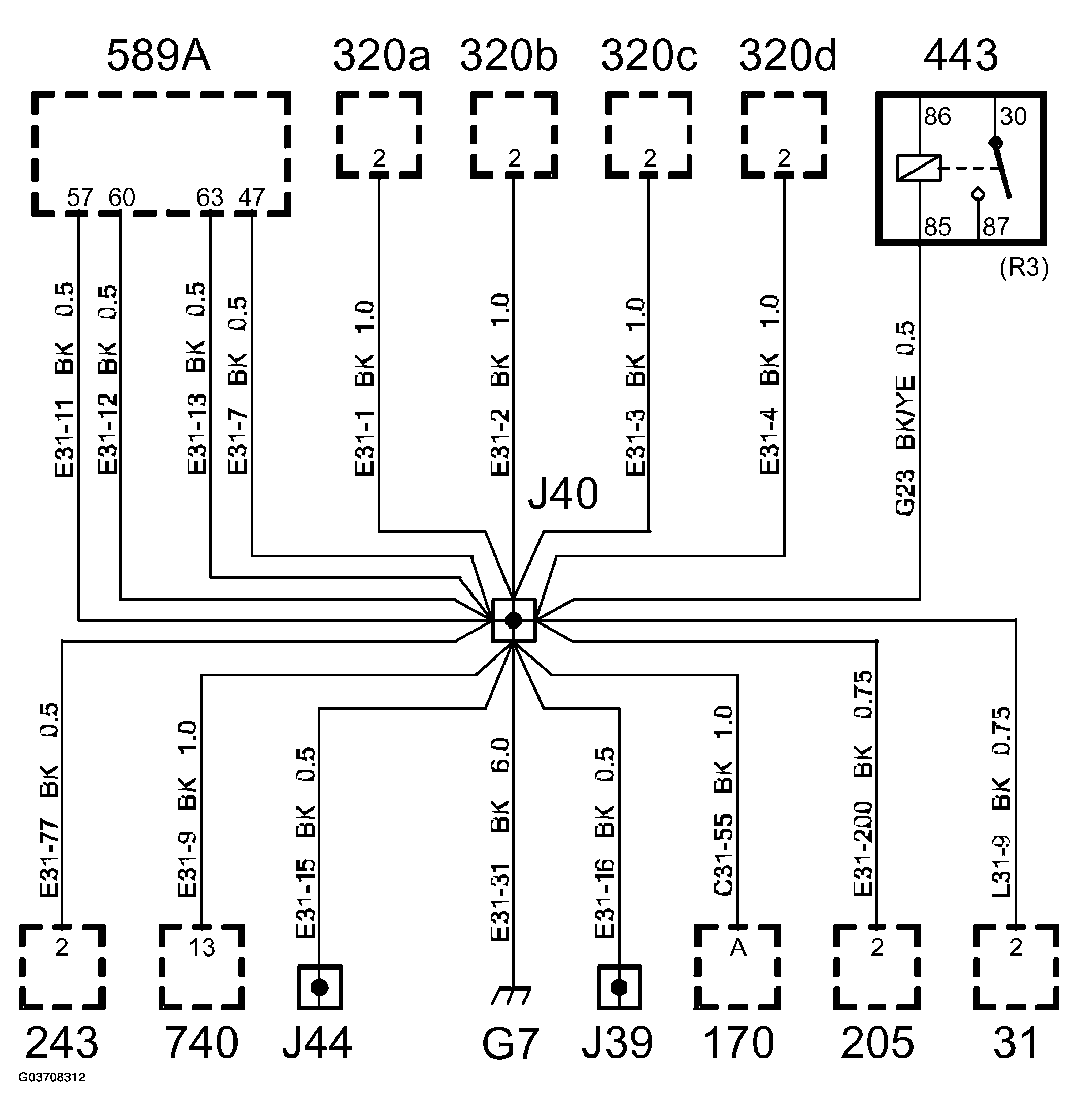

Fig 1: Circuit Diagram - Crimp J40, Engine Harness, Trionic

Courtesy of SAAB-SCANIA OF AMERICA, INC.
