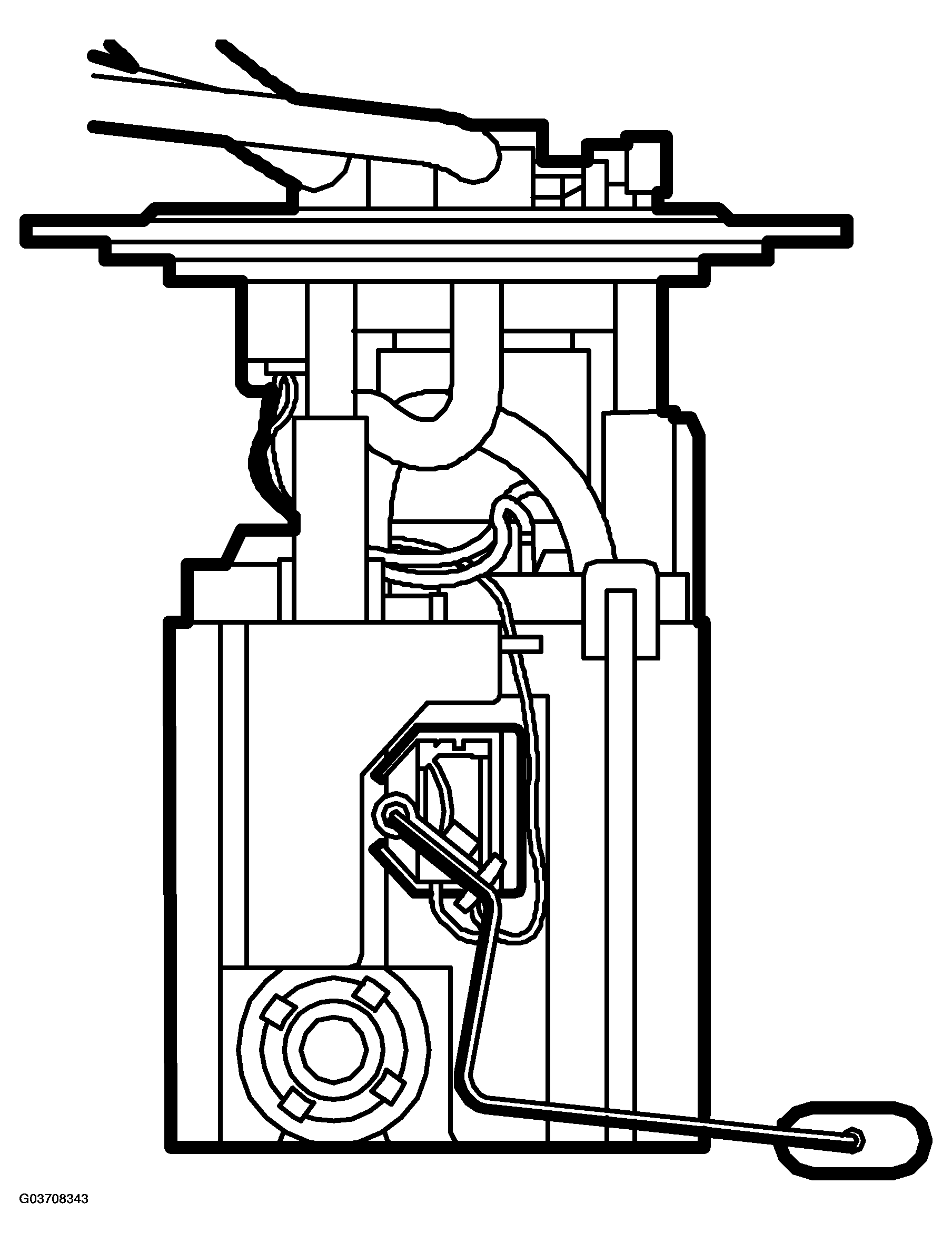

Fuel pump motor (323), T8
FUEL PUMP MOTOR TECHNICAL DATA
| Capacity at 3.0 bar backpressure | ml/30 s | min. 700 |
| Resistance, level sensor See also FUEL LEVEL SENSOR (46), T8 |
Ohm | Empty tank: 39.0+/-2.6 Full tank: 250.0+/-6.0 |
| Tightening torque, locknut | Nm (lbf ft) | 75 (55) |
