Injectors (206), T8
Injectors (206), T8

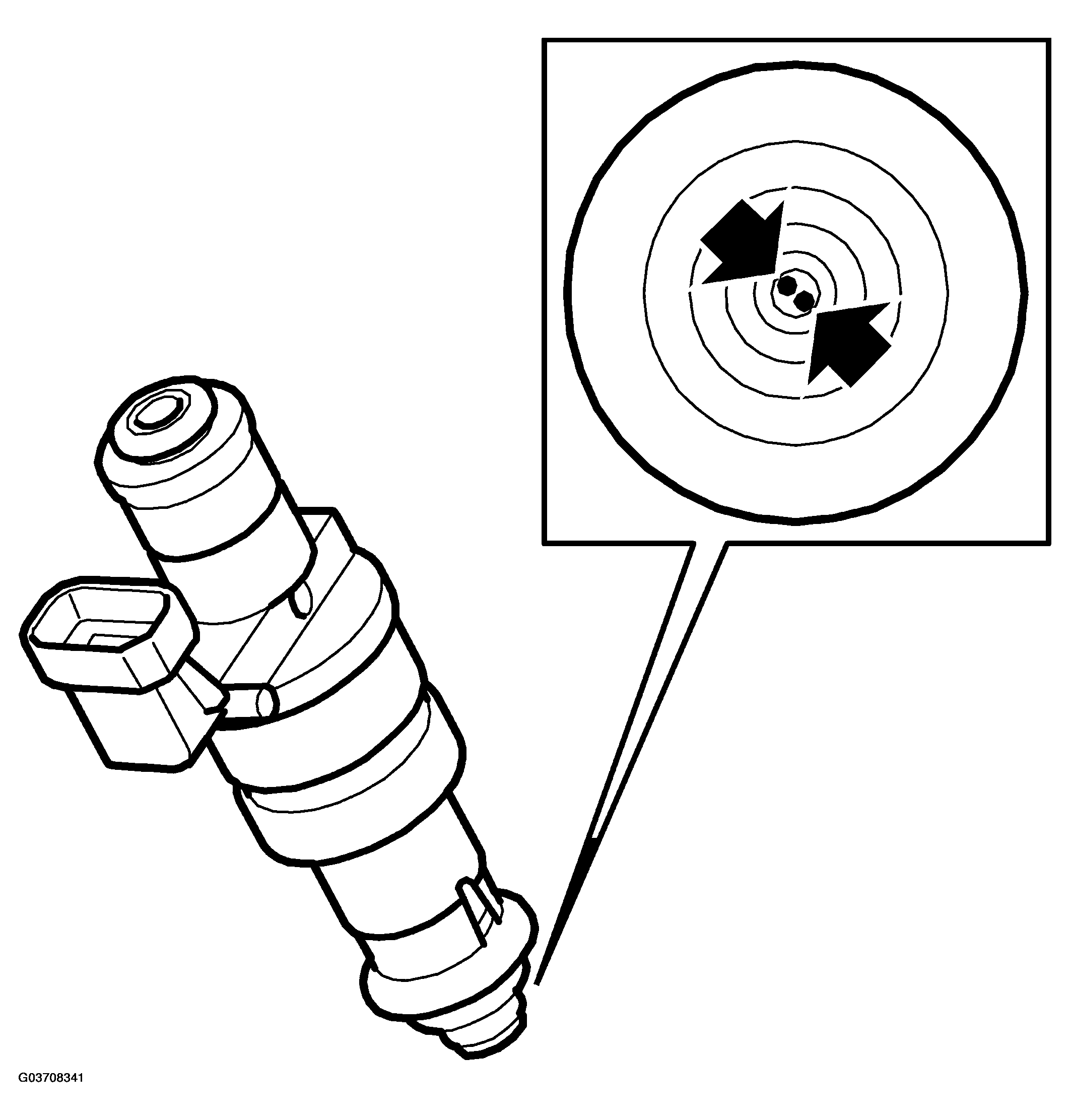

Fig 1: Identifying Injectors
Courtesy of SAAB-SCANIA OF AMERICA, INC.
INJECTORS TECHNICAL DATA
Engine type
B207E, B207L
B207R
Type
Siemens, color blue
Siemens, color green
Style
2 hole
2 hole
Resistance
Ohm
12
12
Flow capacity
ml/ 30 s
134 +/-5
176 +/-7
Maximum permitted difference between injectors
ml/ 30 s
10
14
