Home › Saab › 2004 › 9-3 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T8 Fuel Control System › Adjustment - Replacement › Intake manifold sensor (688) › To fit

To fit

  1. Fit the sensor with a new O-ring sparingly lubricated with Vaseline.

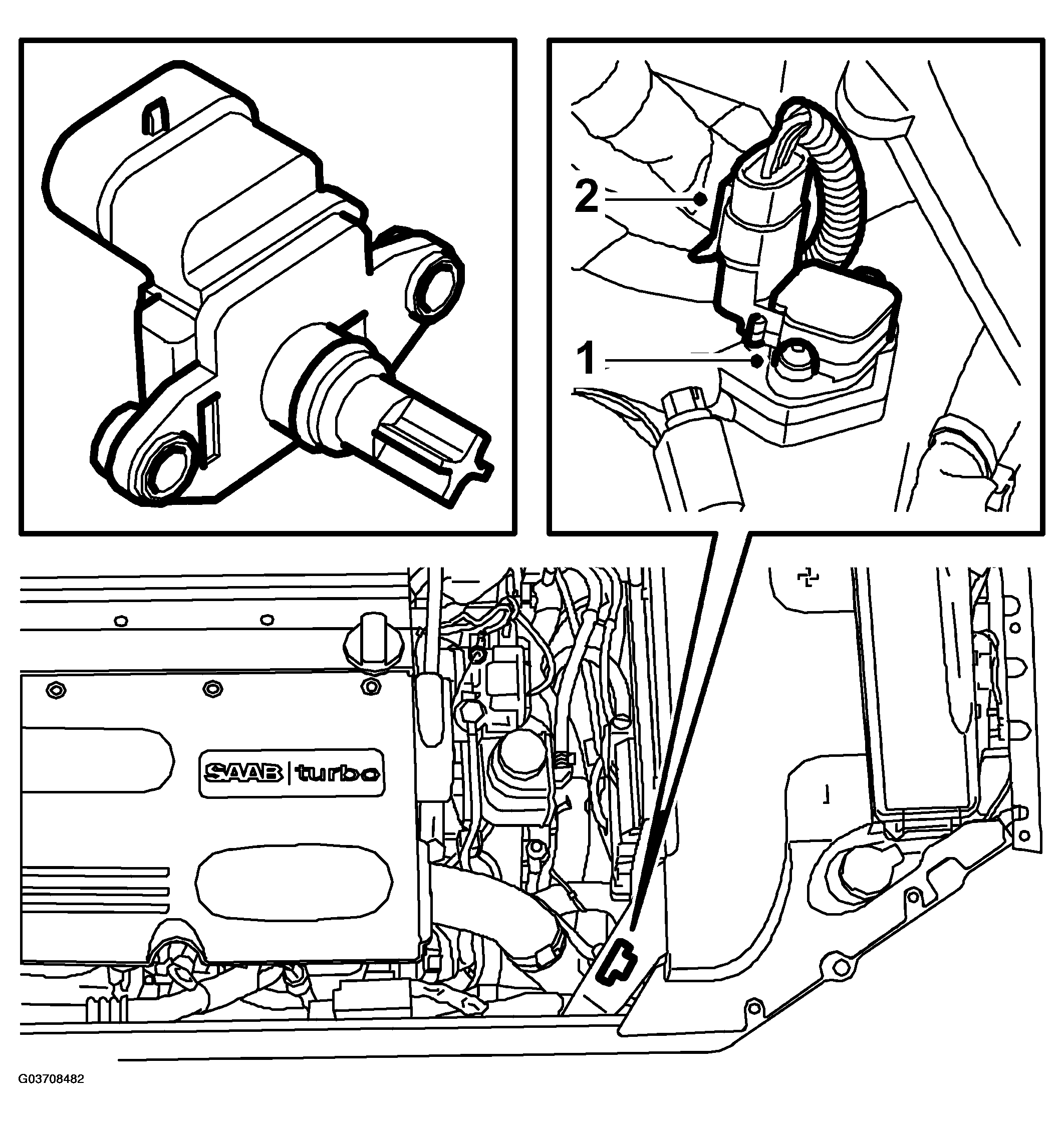

    Fig 1: Illustration For Step 1-2
    G03708482Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
