To remove

  1. Remove the oil sump as described in OIL SUMP .
  2. Remove the connector clip.

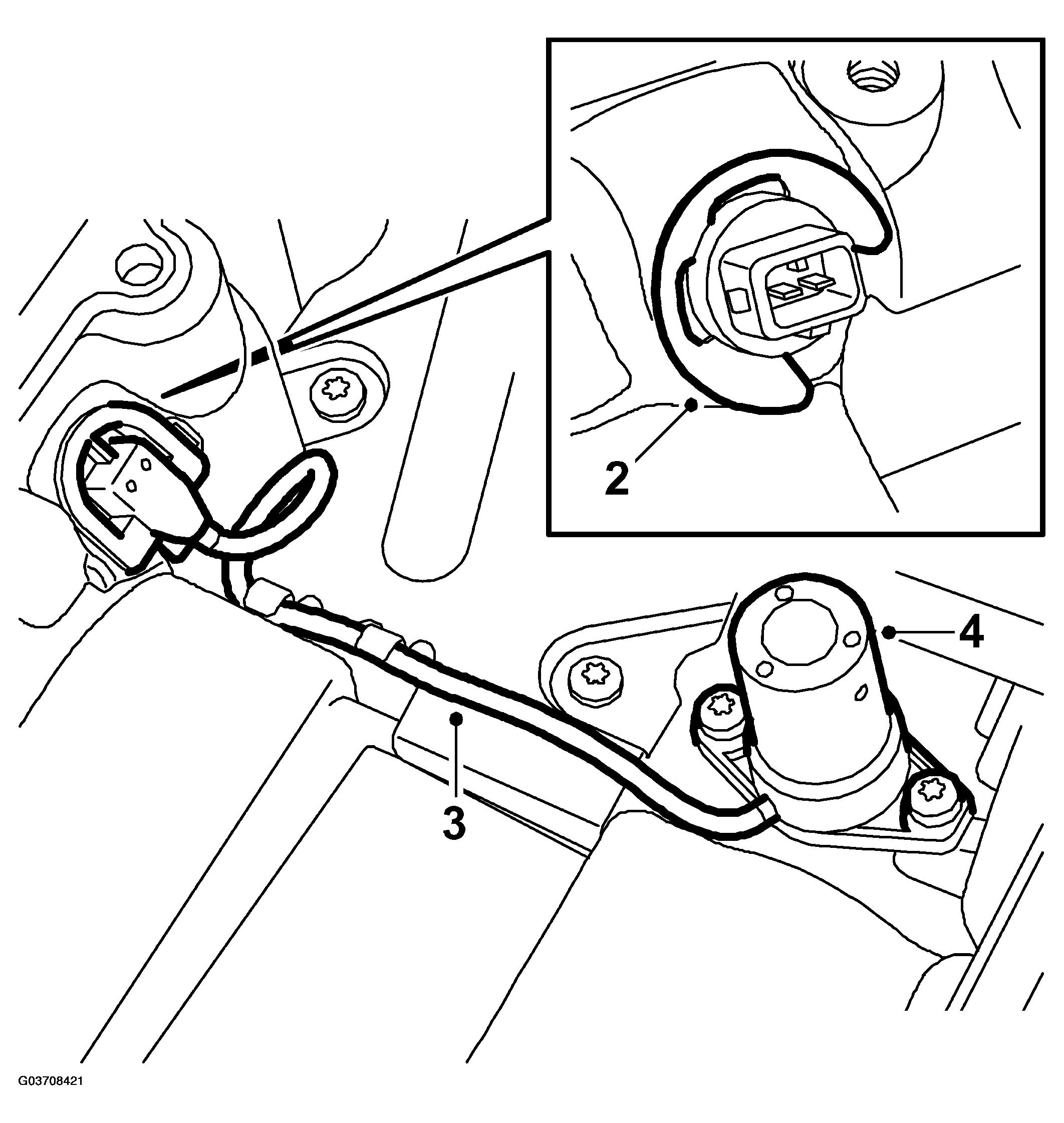

    Fig 1: Illustration For Step 2-4
    G03708421Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Make a note of how the cables are run and secured.
  4. Remove the oil level sensor.
