To remove

  1. Cut off the cable tie securing the sensor connector.

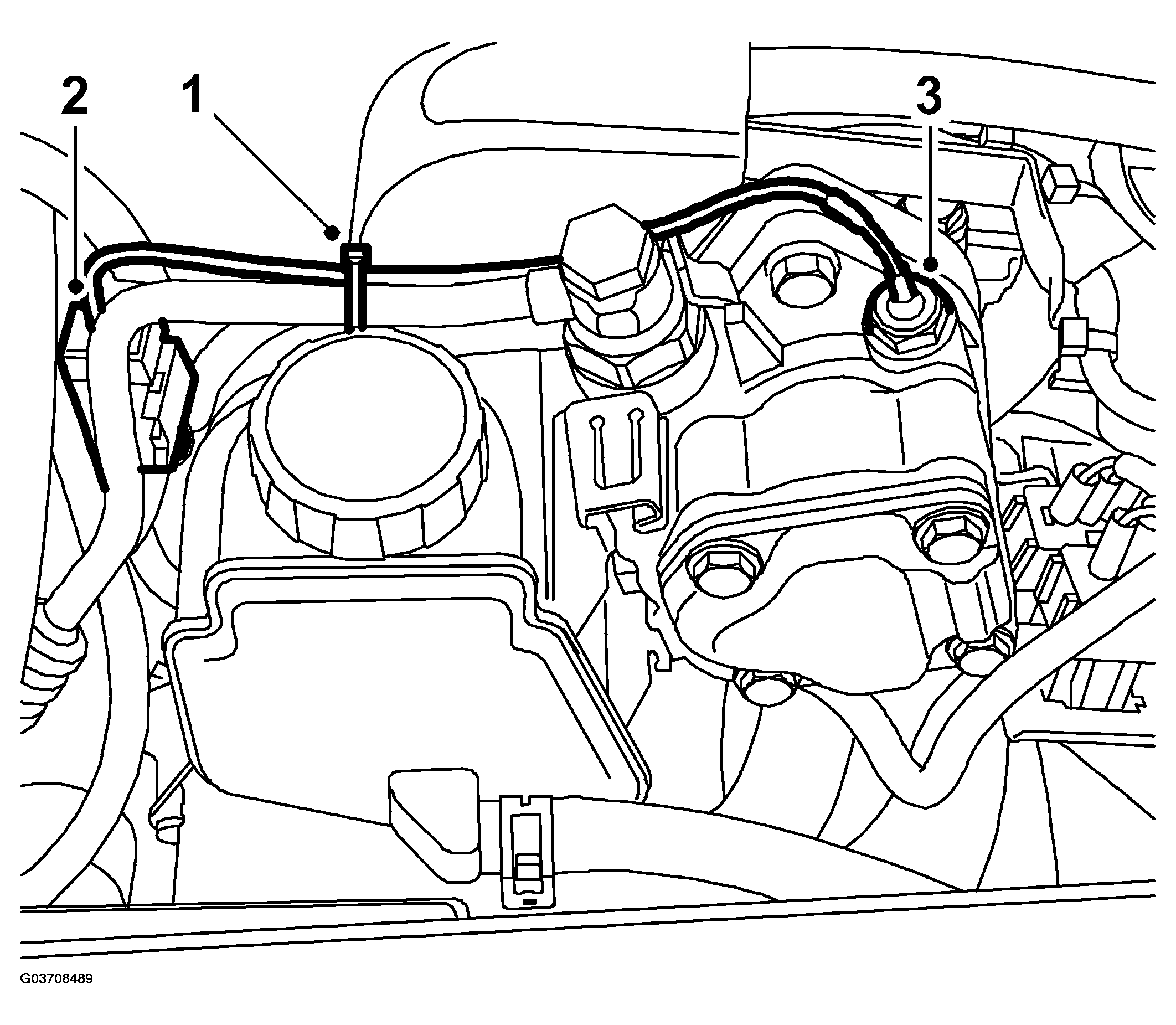

    Fig 1: Illustration For Step 1-3
    G03708489Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the sensor connector.
  3. Carefully remove the pressure sensor as it contains loose parts.
