To remove

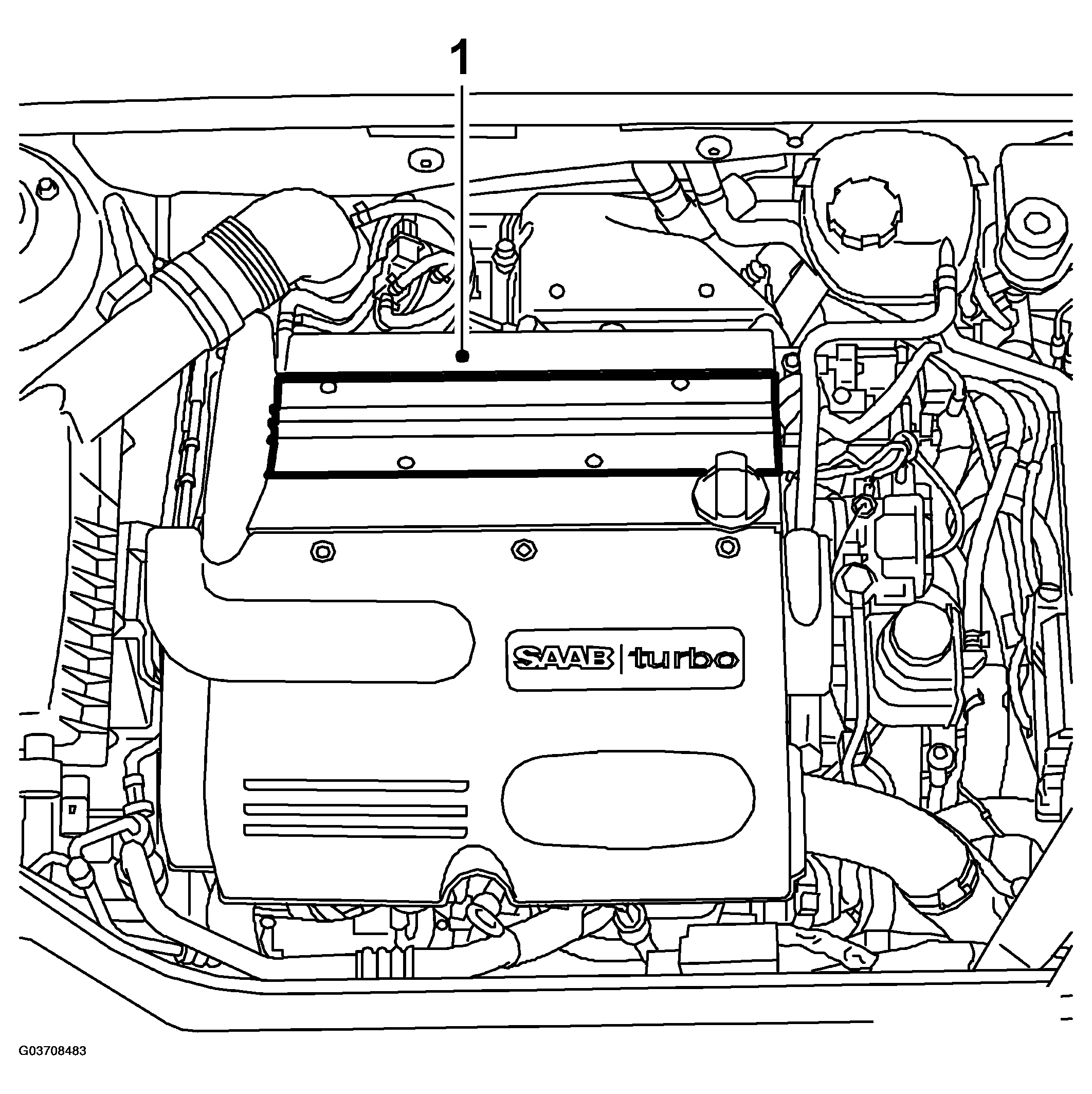

  1. Remove the cover over the ignition coils.
    Fig 1: Illustration For Step 1
    G03708483Courtesy of SAAB-SCANIA OF AMERICA, INC.

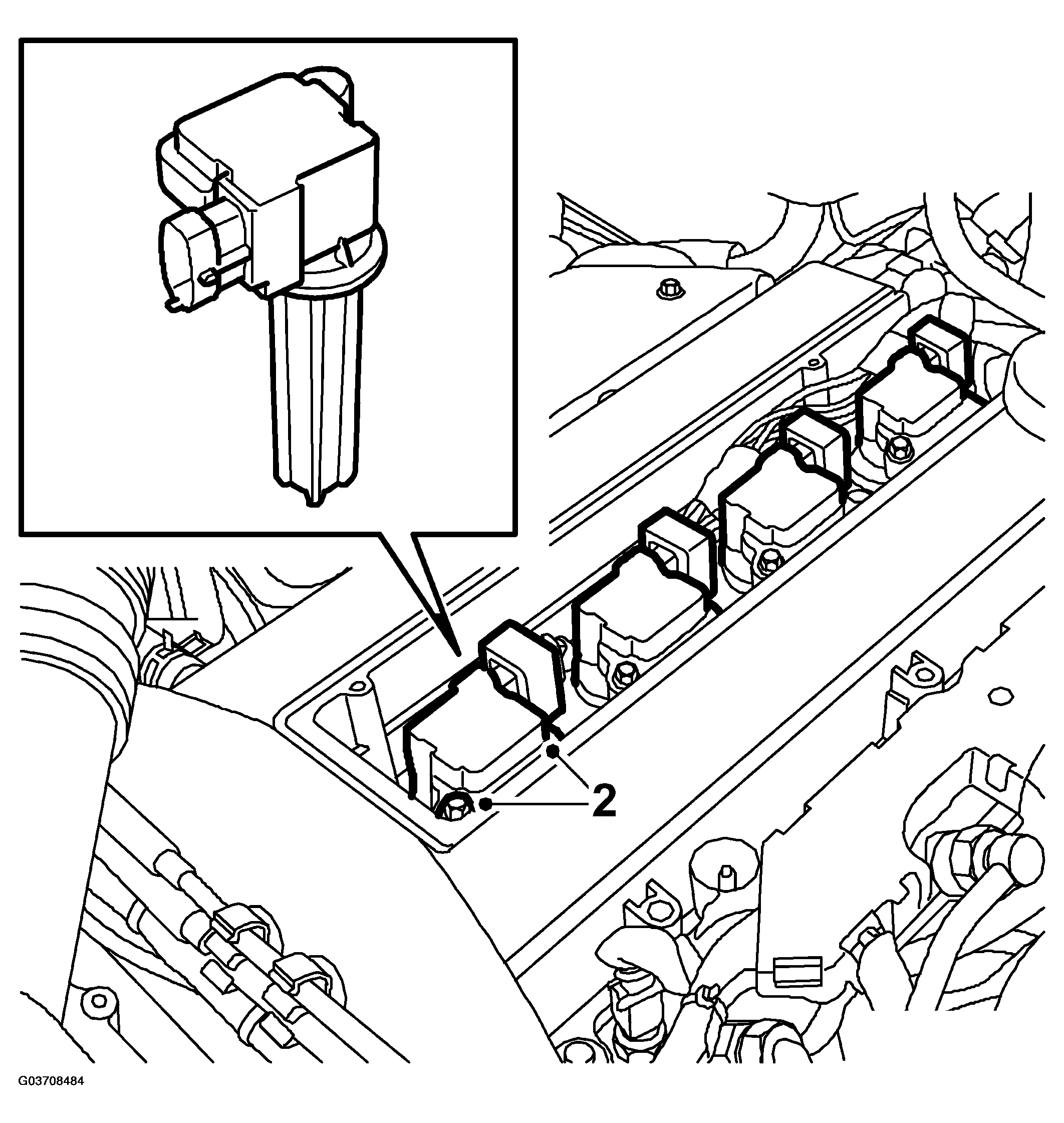

  2. Remove the bolts, lift up each ignition coil and move aside. Start with the ignition coil for cylinder 1.
    Fig 2: Illustration For Step 2
    G03708484Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the spark plugs, socket 8394785.
