TRIONIC T8 Fuel Control System
›
Adjustment - Replacement
›
Upper heated oxygen sensor (592)
›
To remove
To remove
Unplug the oxygen sensor and carefully lower the cable.

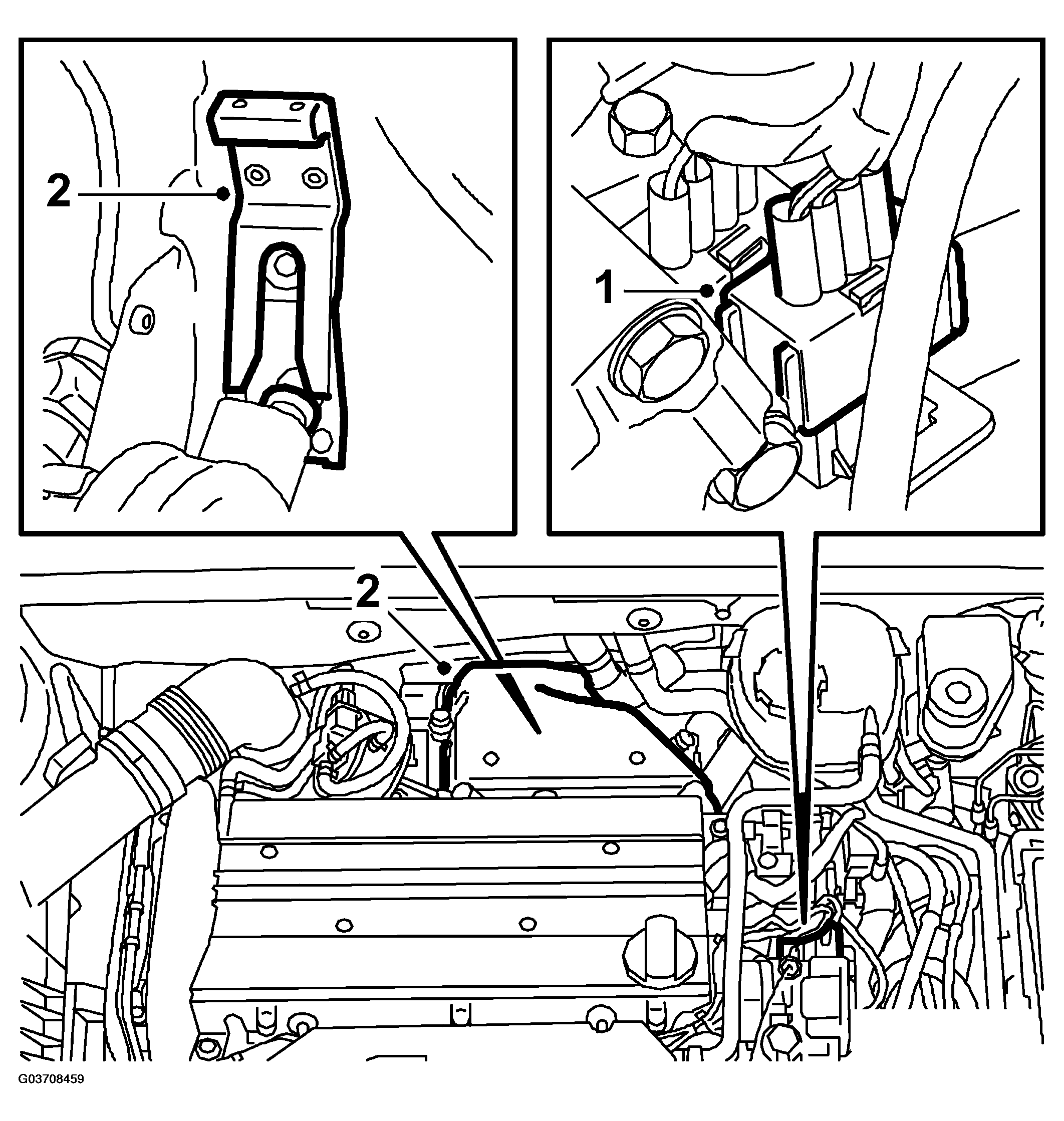

Fig 1: Illustration For Step 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the heat shield over the turbocharger (note the clip underneath the heat shield).
Remove the oxygen sensor.

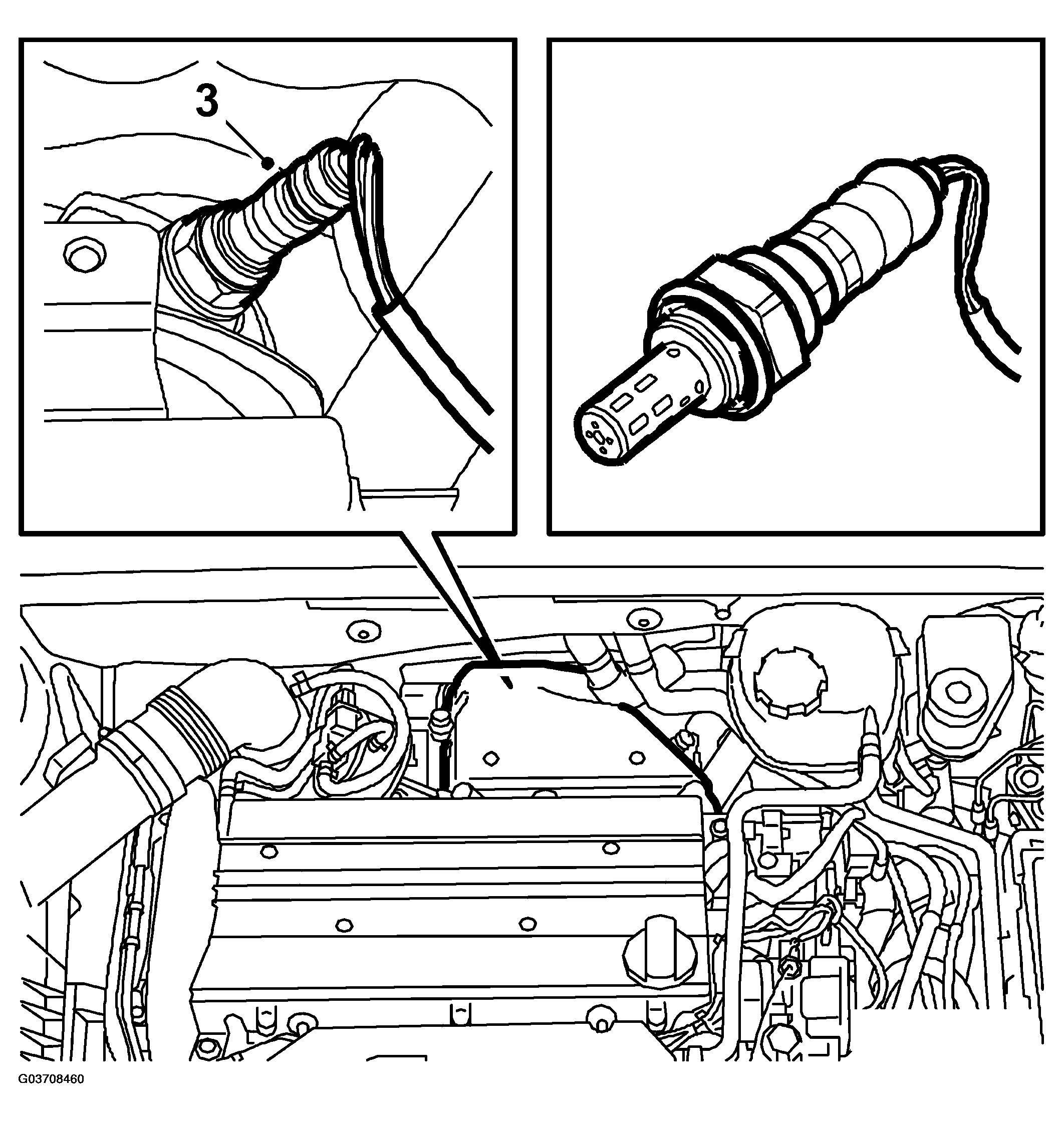

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
