TRIONIC T8 Fuel Control System
›
Component Location
›
Ignition Switch Module (20)
›
Location:
Ignition Switch Module (20): Location:
in the floor console between the front seats

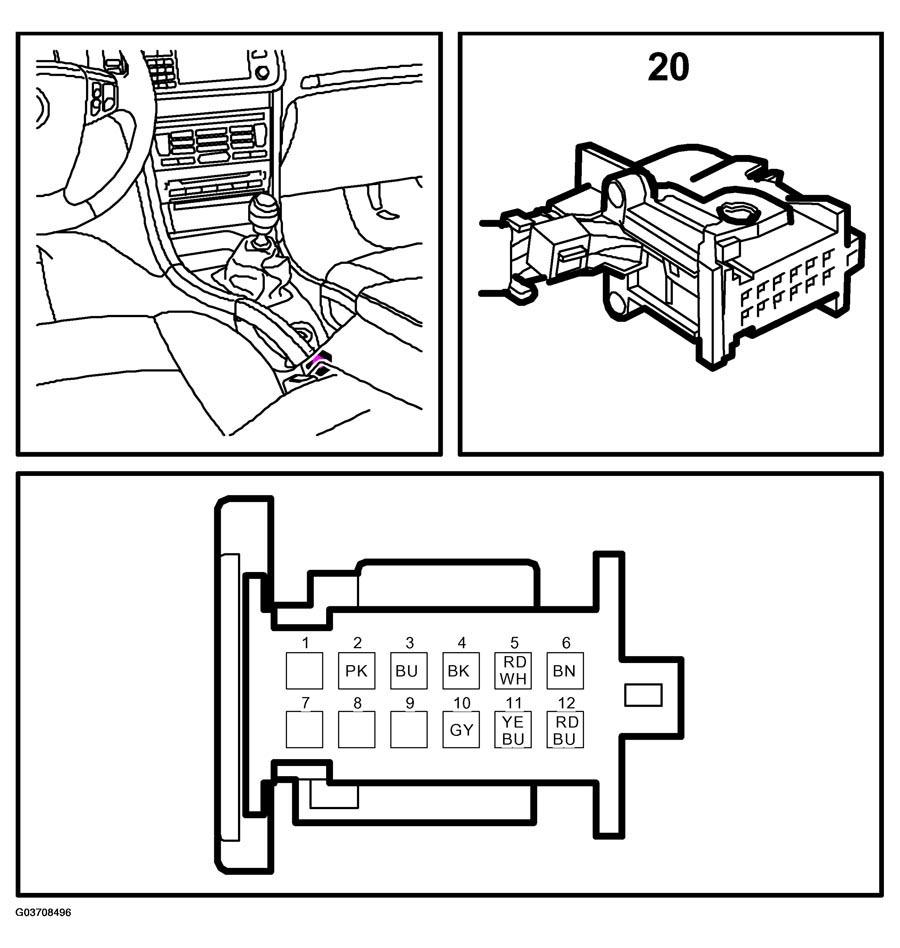

Fig 1: Identifying Ignition Switch Module Connector Pinout
Courtesy of SAAB-SCANIA OF AMERICA, INC.
