Home › Saab › 2004 › 9-3 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T8 Fuel Control System › Component Location › Unit, steering wheel assembly (703) › K25

Unit, steering wheel assembly (703): K25

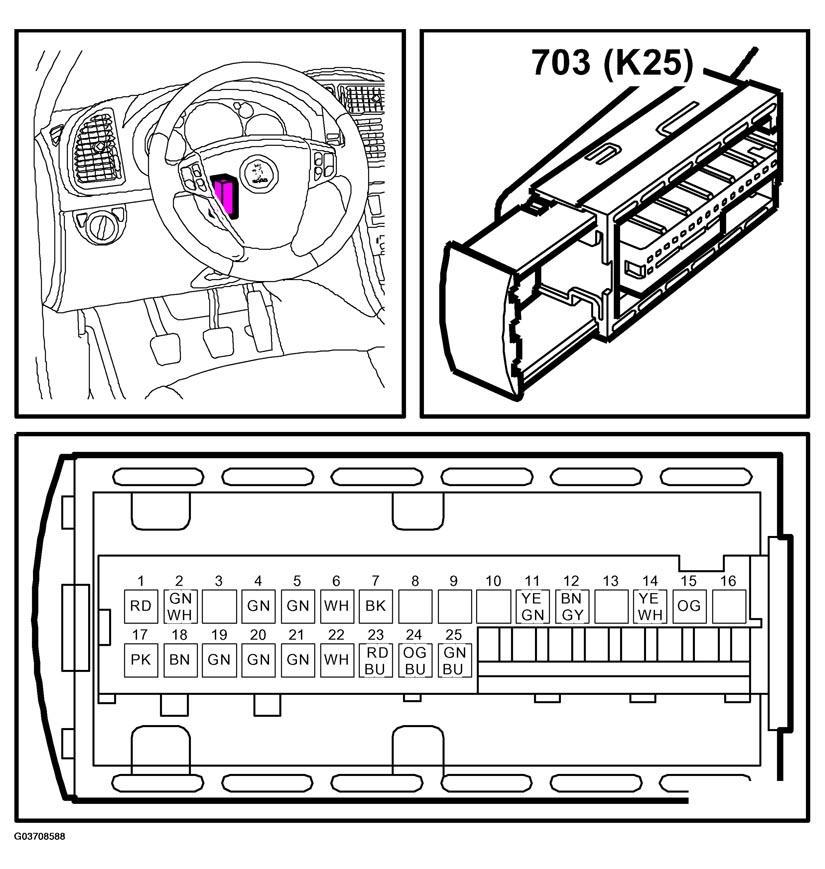

Fig 1: Identifying Steering Wheel Assembly Connector Pinout Unit K25
G03708588Courtesy of SAAB-SCANIA OF AMERICA, INC.
