Home › Saab › 2004 › 9-3 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T8 Fuel Control System › Technical Data › Fuel pump relay (102)

Fuel pump relay (102)

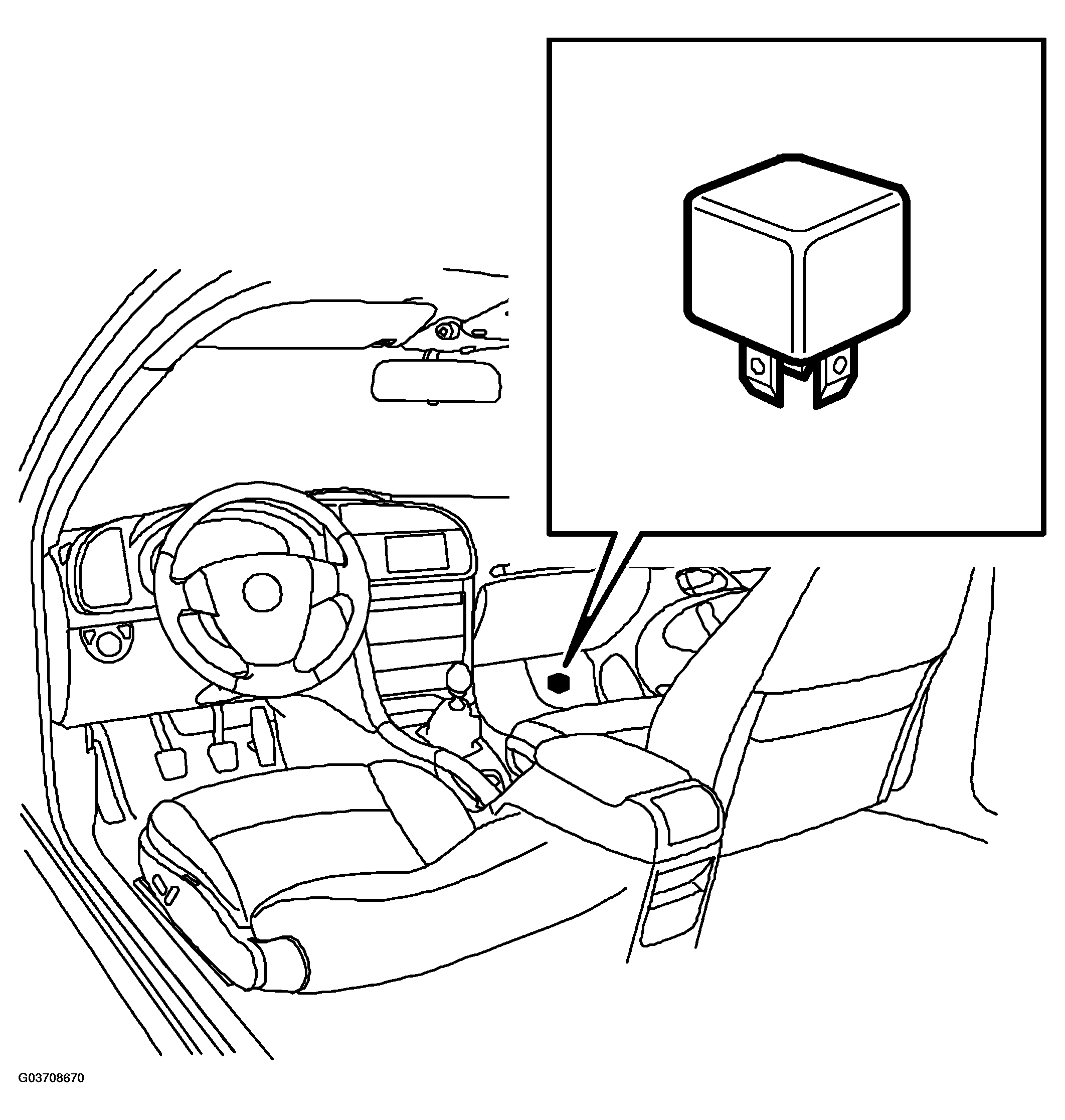

Fig 1: Identifying Fuel Pump Relay (102)
G03708670Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PUMP RELAY (102) TECHNICAL DATA

Resistance, winding at 20°C (68°F) Ohm 85+/-5
Nominal control voltage V 12
Rated current A 30
