Main relay, engine control system (229)

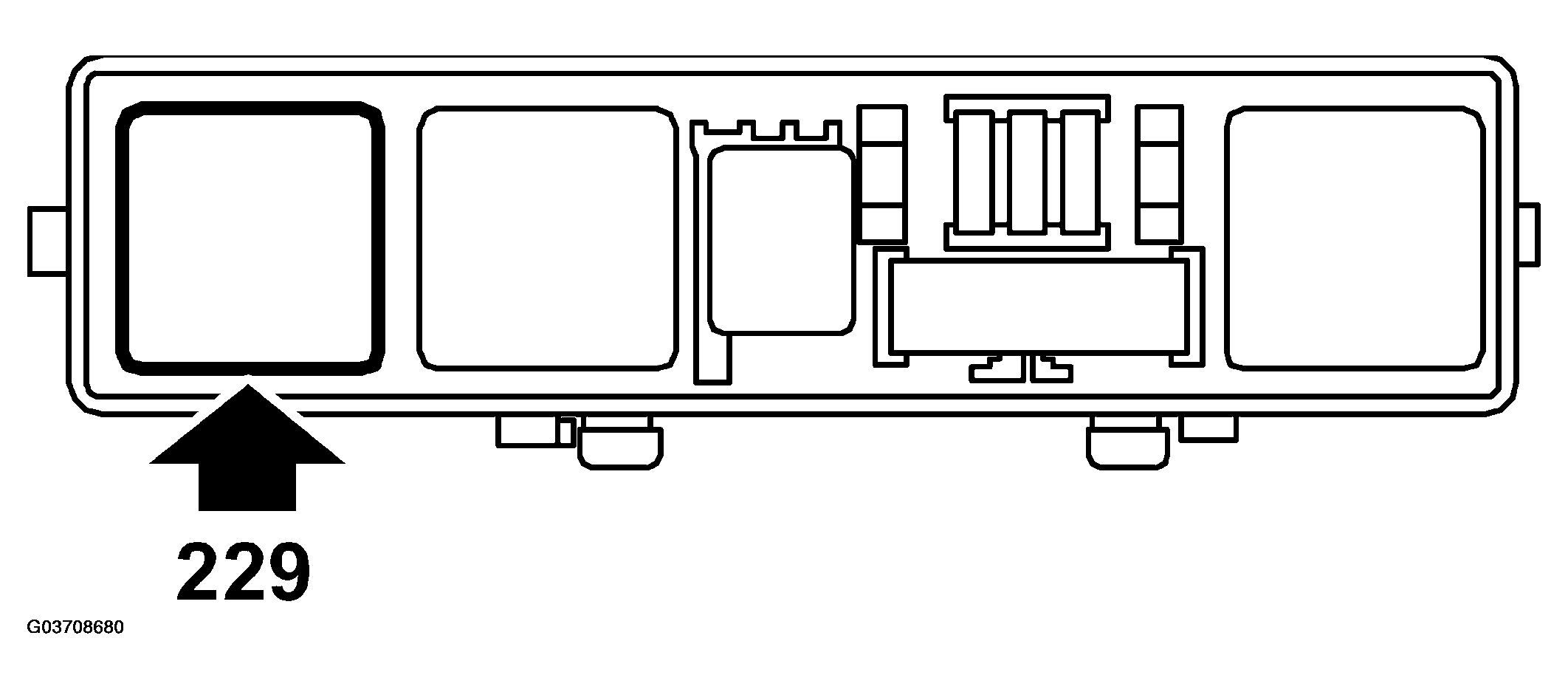

Fig 1: Identifying Engine Control System Main Relay (229)
G03708680Courtesy of SAAB-SCANIA OF AMERICA, INC.
ENGINE CONTROL SYSTEM MAIN RELAY TECHNICAL DATA

Resistance, winding at 20°C (68°F) Ohm 85+/-5
Nominal control voltage V 12
Nominal current A 30
