Accelerator pedal position sensor (379), T8: Connection

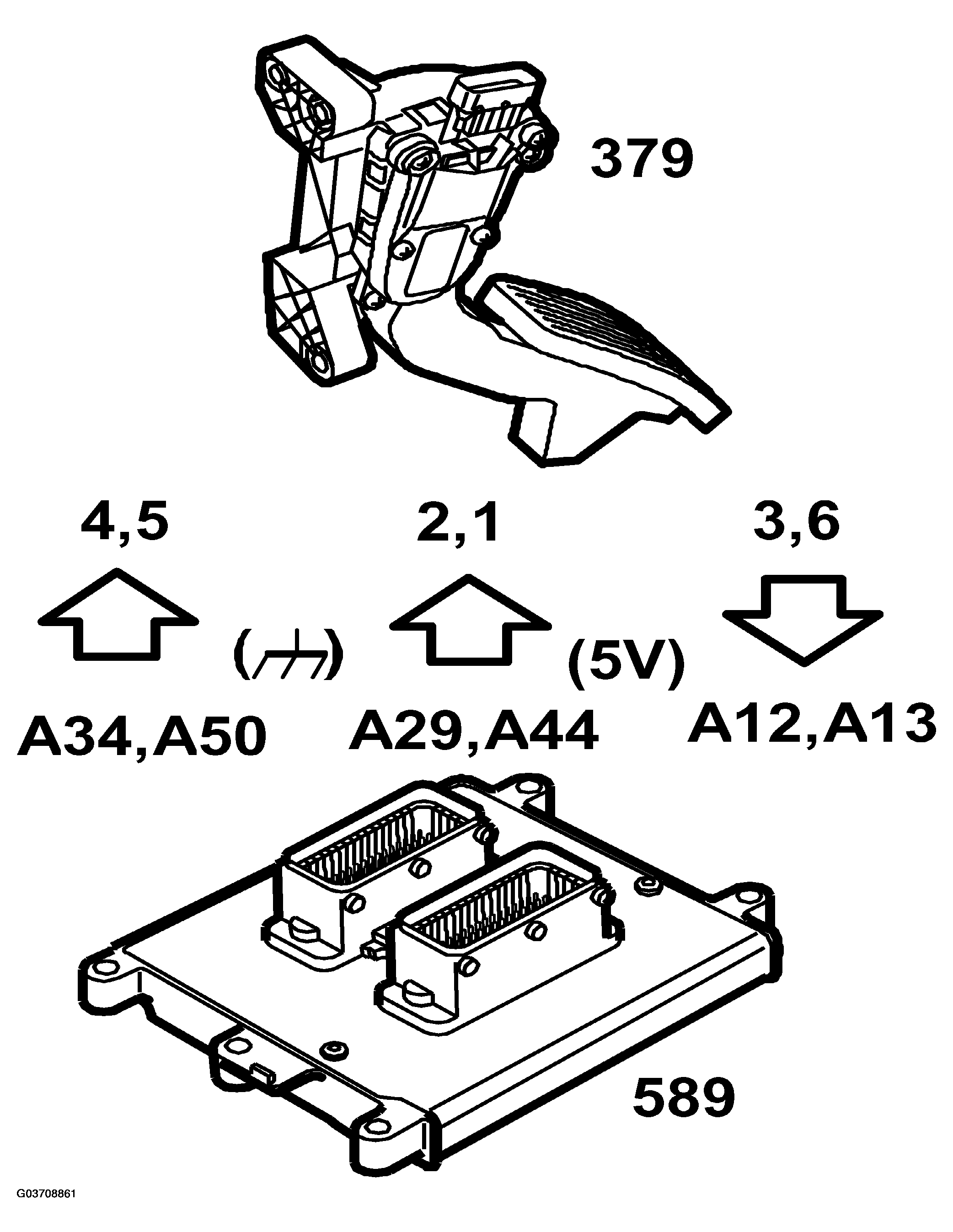

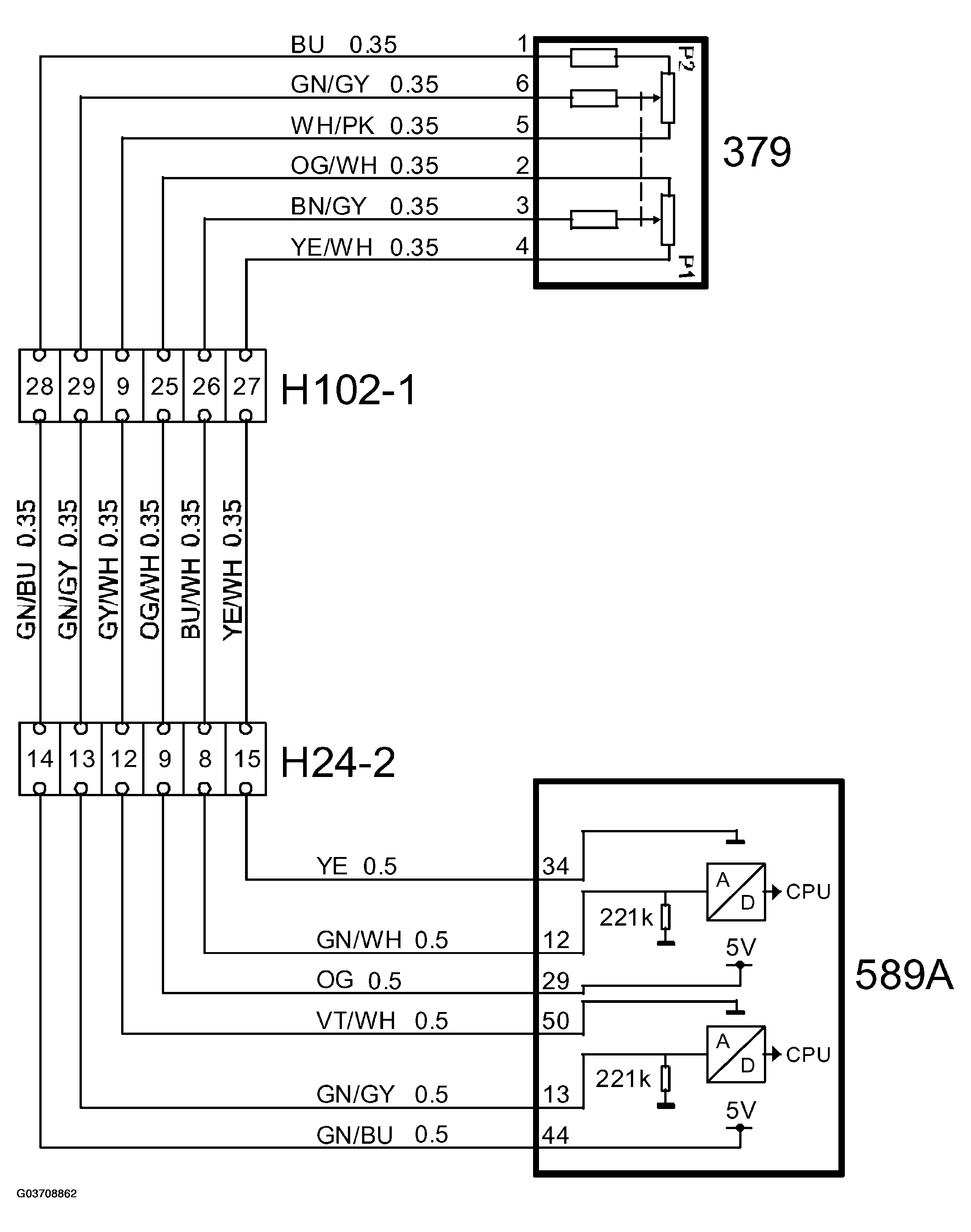

PIN DESCRIPTION
| Pin No. | Signal type | Description |
|---|---|---|
| 1 | Power supply, 5 V | Connected to ECM pin 44 (A). |
| 2 | Power supply, 5 V | Connected to ECM pin 29 (A). |
| 3 | Signal, P1 | Connected to ECM pin 12 (A). |
| 4 | Ground | Connected to ECM pin 34 (A). |
| 5 | Ground | Connected to ECM pin 50 (A). |
| 6 | Signal, P2 | Connected to ECM pin 13 (A). |
Voltage from the sensor varies in relation to the angle of the sensor shaft.
