Adaptation of pedal position

When the pedal is fully released, the voltage value from potentiometer 1 for the released pedal will be adapted and constitute the idling speed position for the pedal.

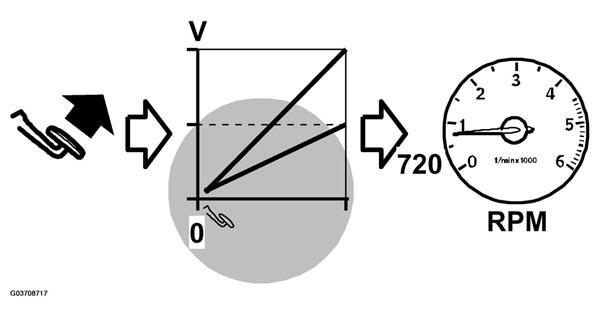

Fig 1: Identifying Adaptation Of Pedal Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.
