Main relay, engine control system (229)

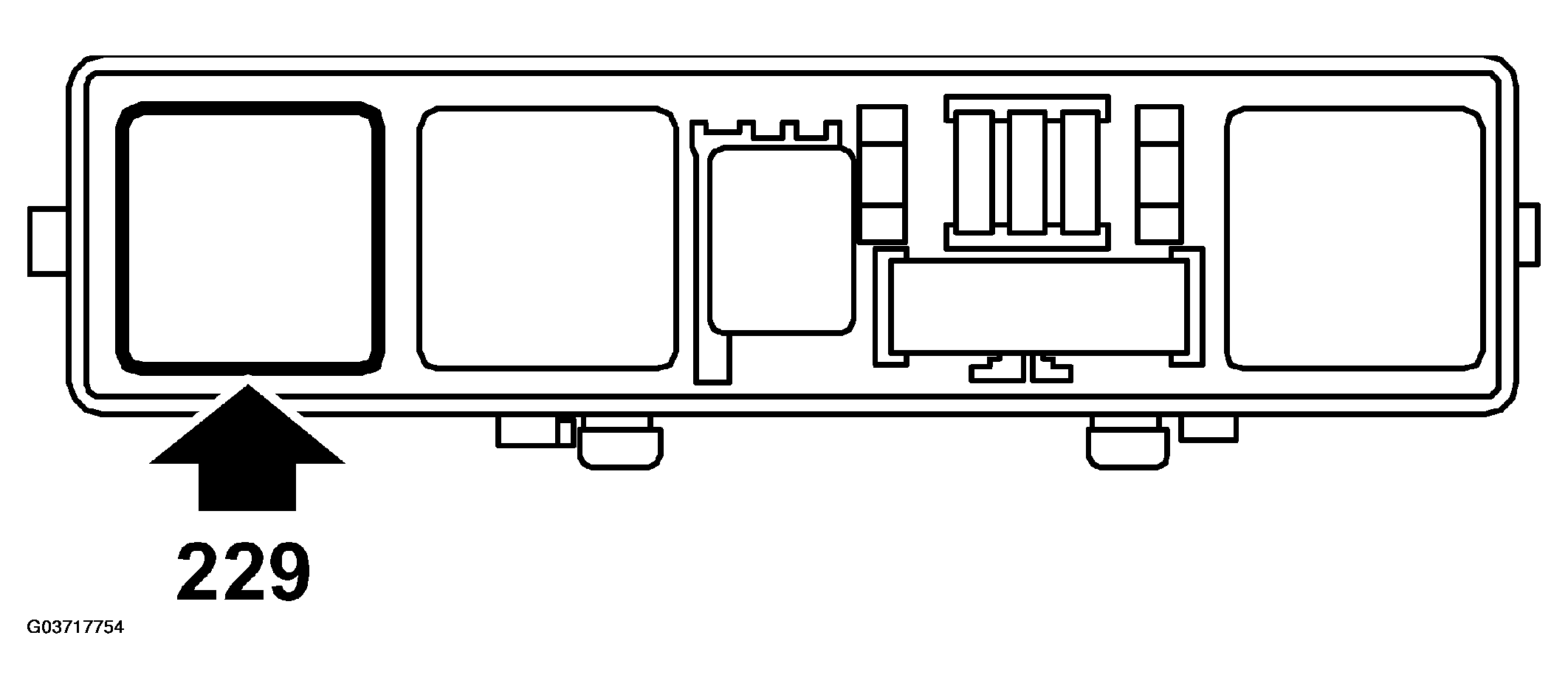

Fig 1: Identifying Main Relay, Engine Control System (229) - Connector Location
G03717754Courtesy of SAAB-SCANIA OF AMERICA, INC.
MAIN RELAY, ENGINE CONTROL SYSTEM (229) TECHNICAL DATA

Resistance, winding at 20°C (68°F) Ohm 85+/-5
Nominal control voltage V 12
Nominal current A 30
