Sun sensor (223)
Sun sensor (223)

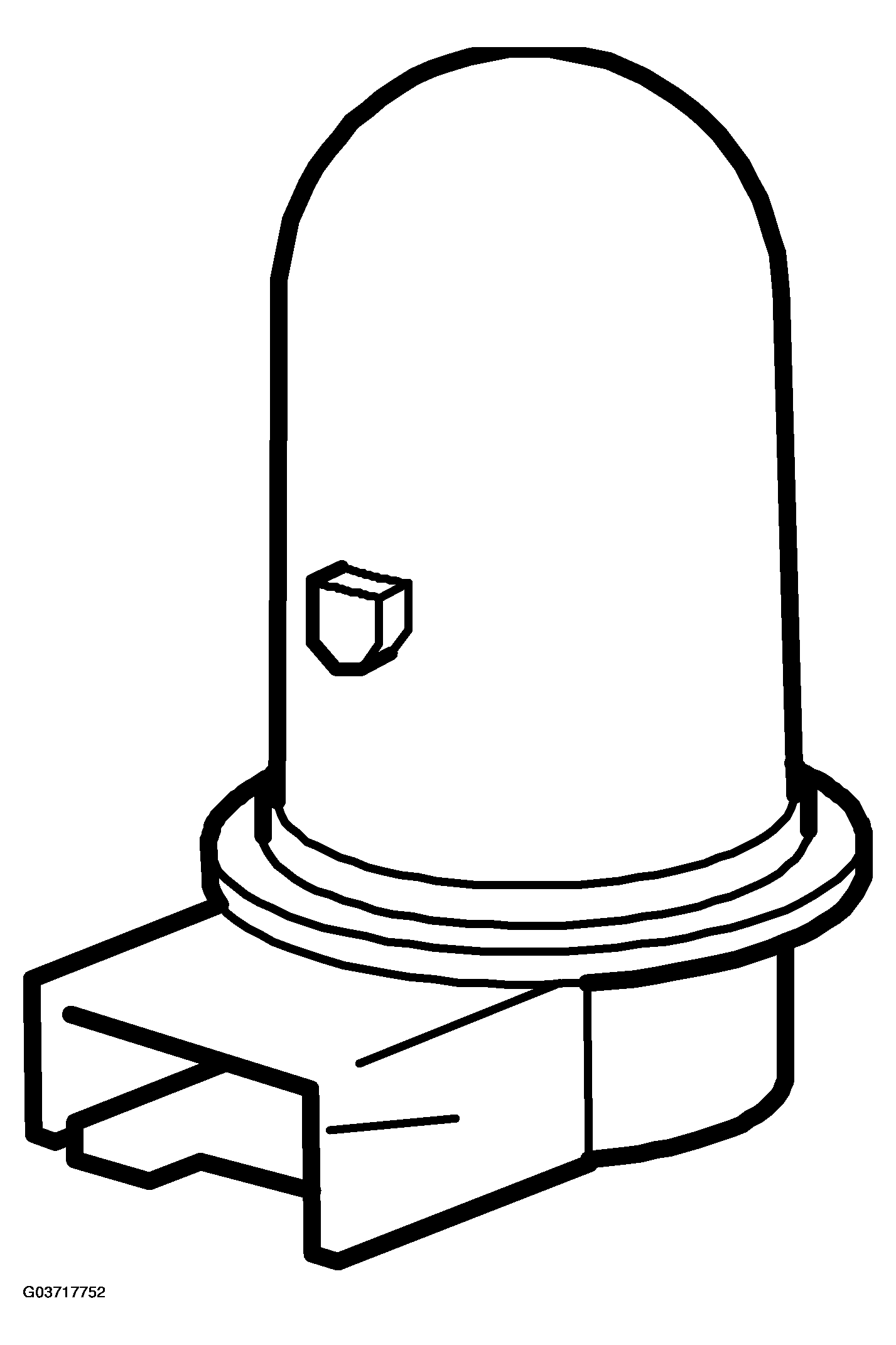

Fig 1: View Of Sun Sensor (223)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
SUN SENSOR (223) TECHNICAL DATA
Power supply B+
pin no
1
Ground
pin no
4
Sensor signal
pin no
2

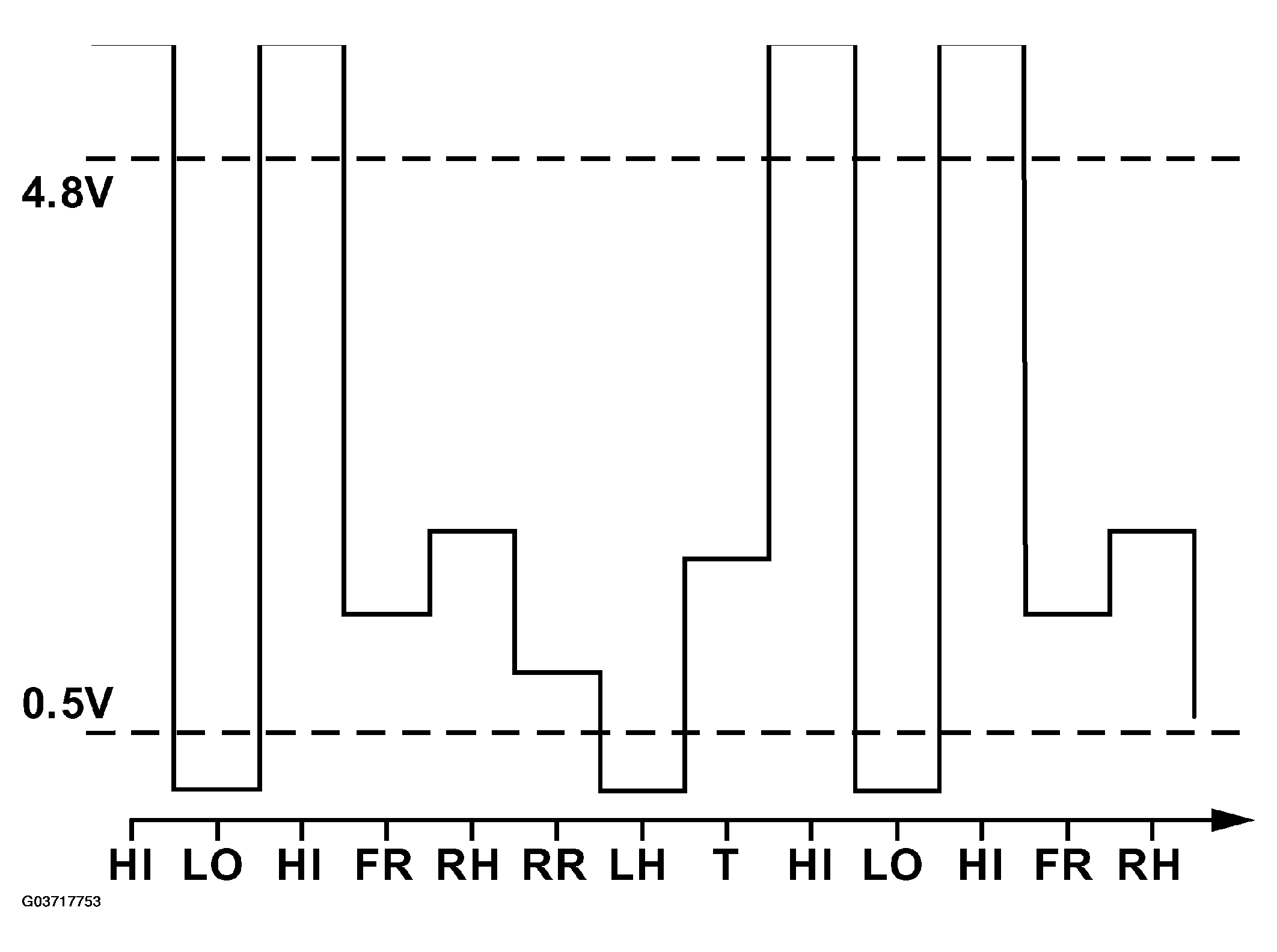

Fig 2: Sun Sensor (223) Graph
Courtesy of SAAB-SCANIA OF AMERICA, INC.
