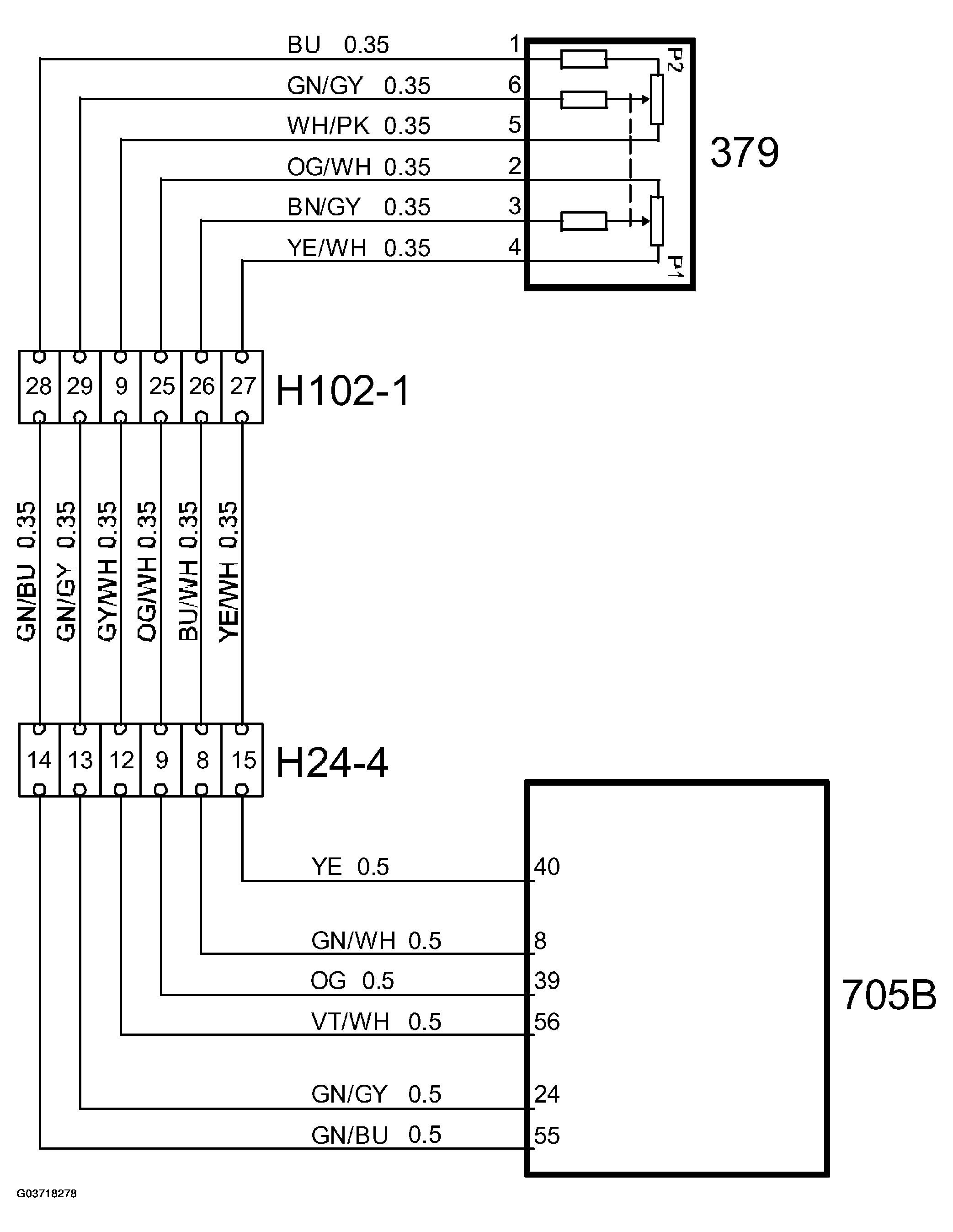

Accelerator pedal position sensor (379), Simtec: Connection
CONNECTOR PINOUTS REFERENCE
| Pin No. | Signal type | Description |
|---|---|---|
| 1 | Power supply, 5 V | Connected to ECM pin 55(B) |
| 2 | Power supply, 5 V | Connected to ECM pin 39(B) |
| 3 | Signal, P1 | Connected to ECM pin 8(B) |
| 4 | Ground | Connected to ECM pin 40(B) |
| 5 | Ground | Connected to ECM pin 56(B) |
| 6 | Signal, P2 | Connected to ECM pin 24(B) |
Voltage from the sensor varies in relation to the angle of the sensor shaft.
