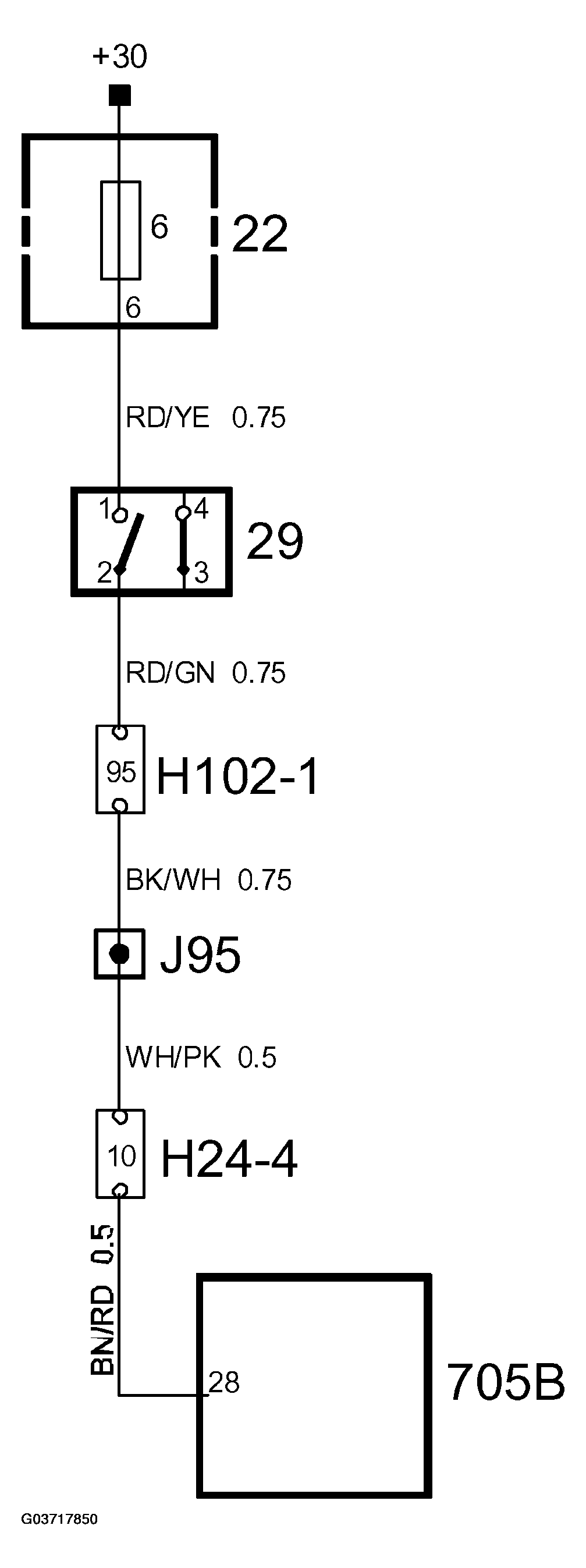

Brake light switch (29), Simtec: Connection
CONNECTOR PINOUTS REFERENCE
| Pin No. |
Signal type |
Description |
| 1 |
+30 |
Power supply from fuse 6 in the dashboard fuse box |
| 2 |
Signal |
The pin receives B+ when the brake pedal is depressed. Connected to ECM pin 28(B). |
