Brake light switch (29), T8: Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	+30	Power supply from fuse 6.
2	Signal	The pin receives B+ when the brake pedal is depressed. Connected to ECM pin 14(A).

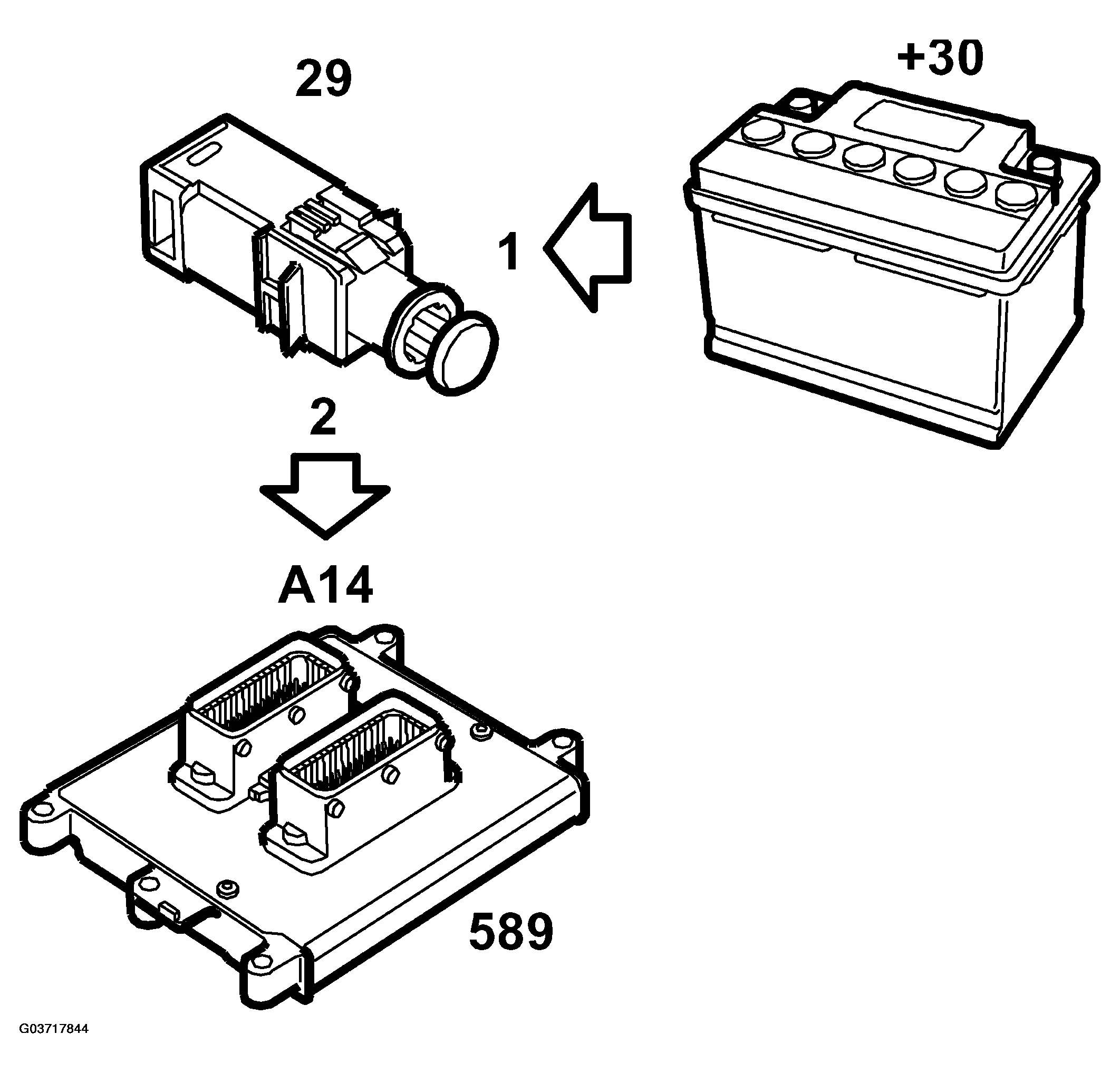

Fig 1: Identifying Communication Flow - Brake Light Switch (T8)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

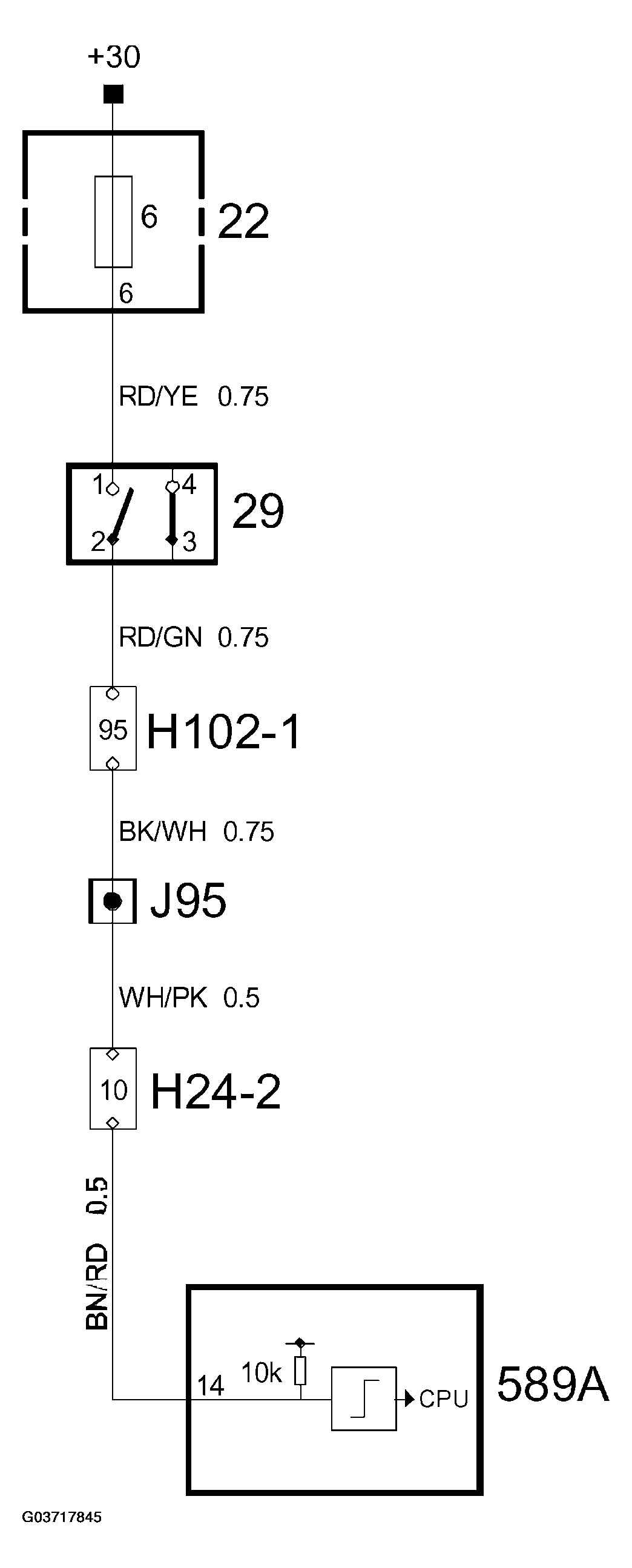

Fig 2: Circuit Diagram - Brake Light Switch (T8)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
