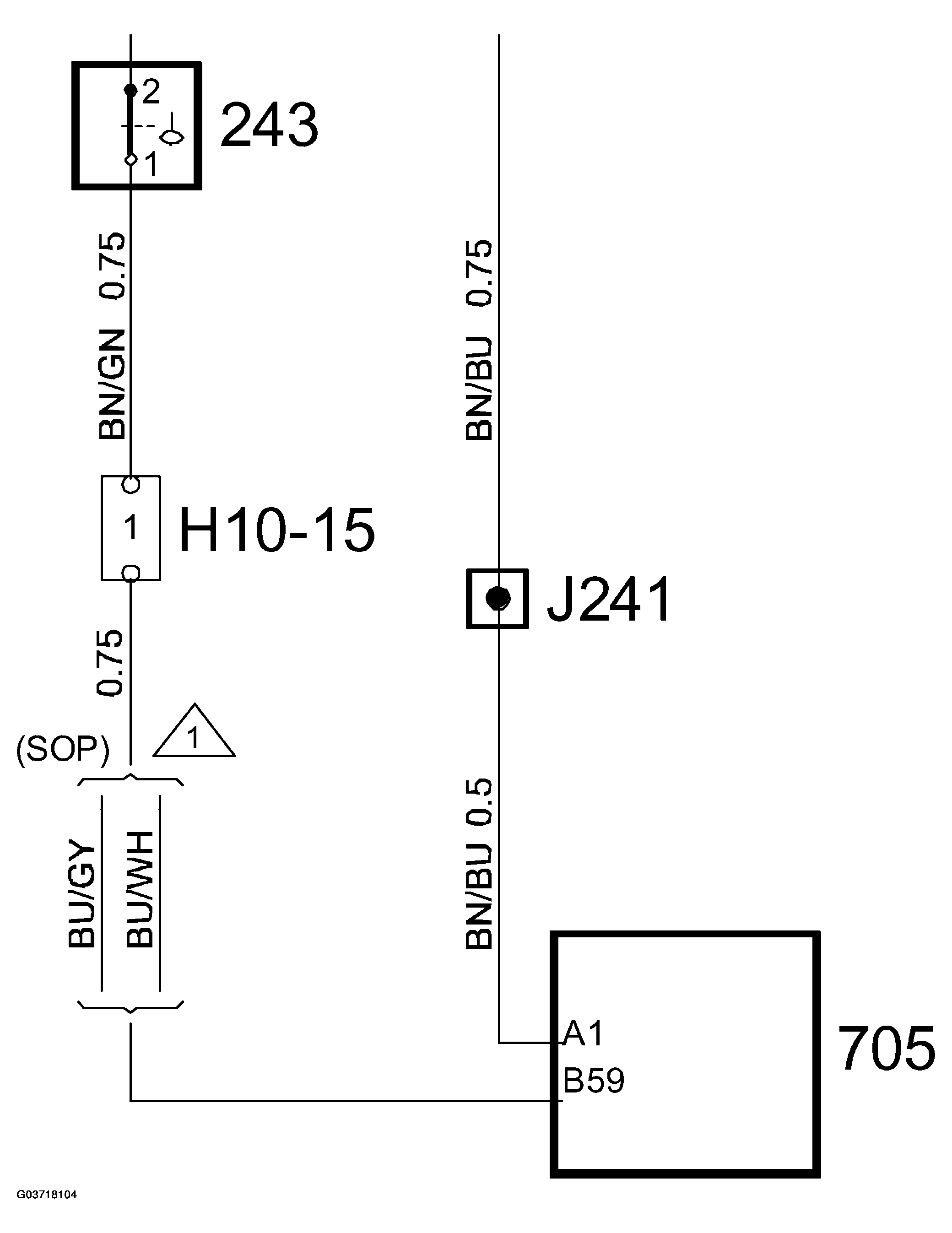

Engine oil level switch (243), Simtec: Connection
CONNECTOR PINOUTS REFERENCE
| Pin No. |
Signal type |
Description |
| 1 |
Ground |
Sensor's ground. |
| 2 |
Ground |
The level switch is supplied 5 V via a resistor from ECM pin 59 (B). The sensor grounds the input when the oil level is low. |
