Fog light switch (88): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
1	Ground	Grounded when the button is depressed
3	Front fog lights	To BCM. Grounded when the button is depressed

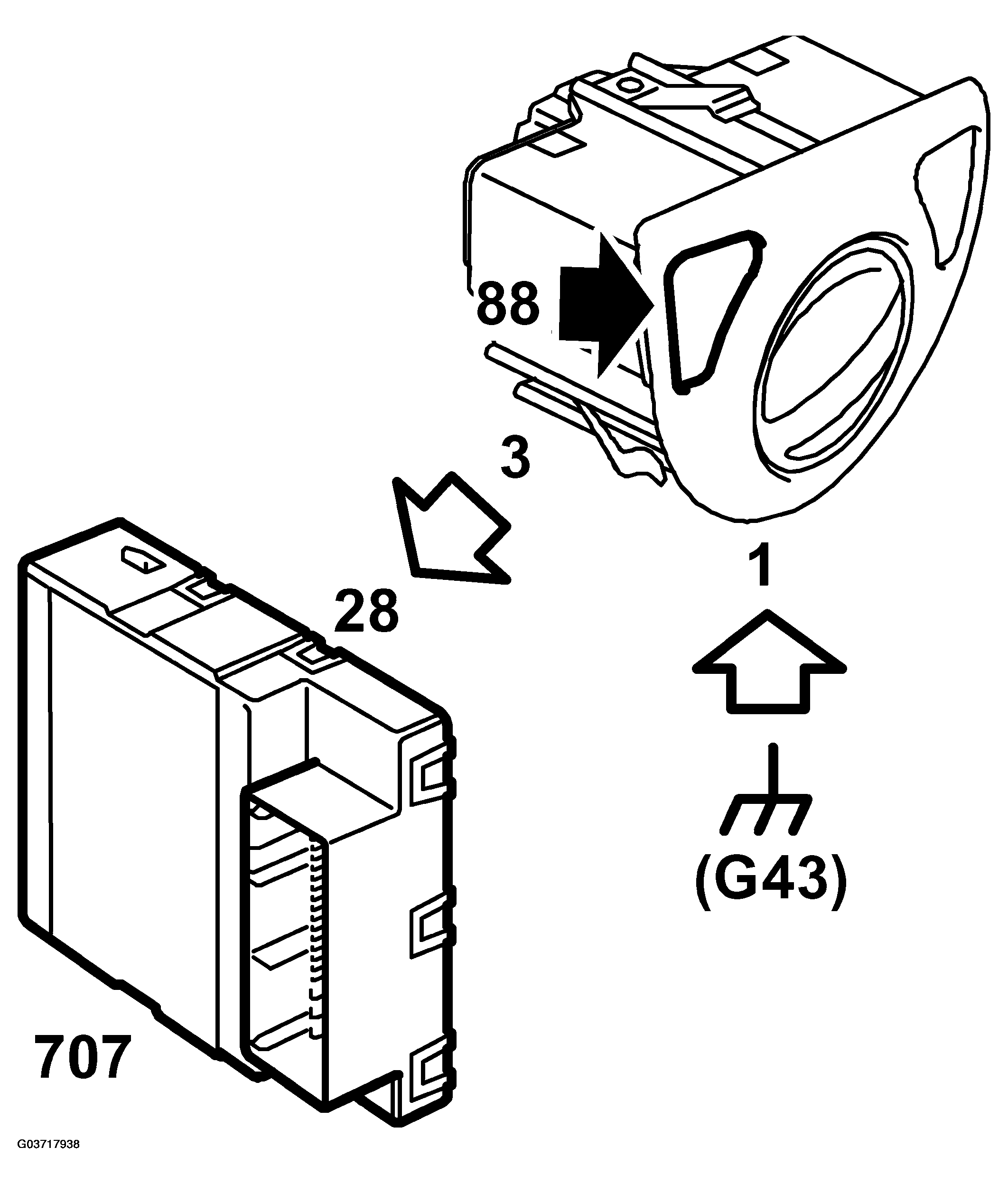

Fig 1: Identifying Communication Flow - Fog Light Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

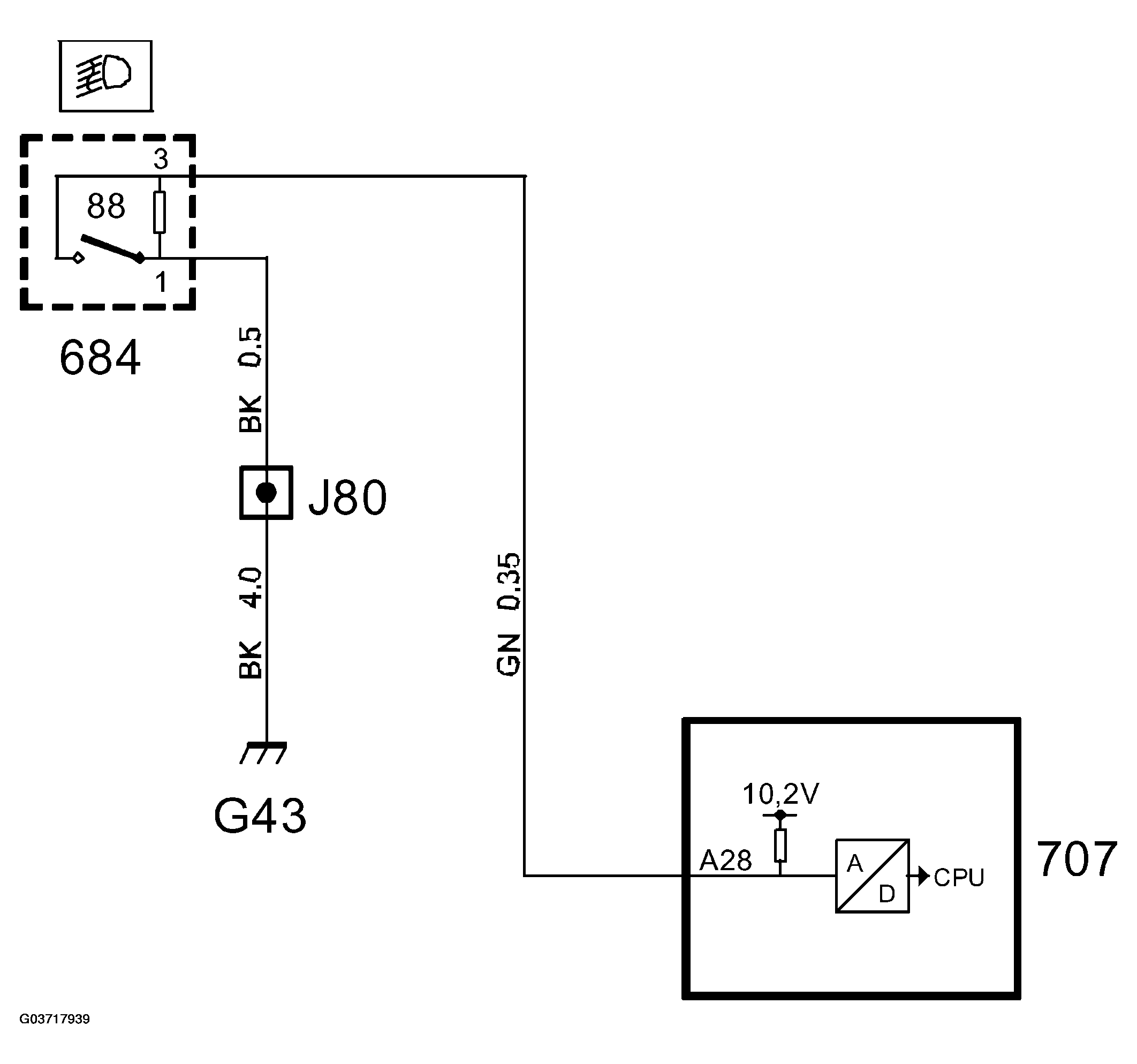

Fig 2: Circuit Diagram - Fog Light Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.
