Front CD player/changer (355F): Connection

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
2	+30
4	Ground
1	O-bus	Reception. Own bus connection.
2	O-bus	Transmission. Own bus connection.

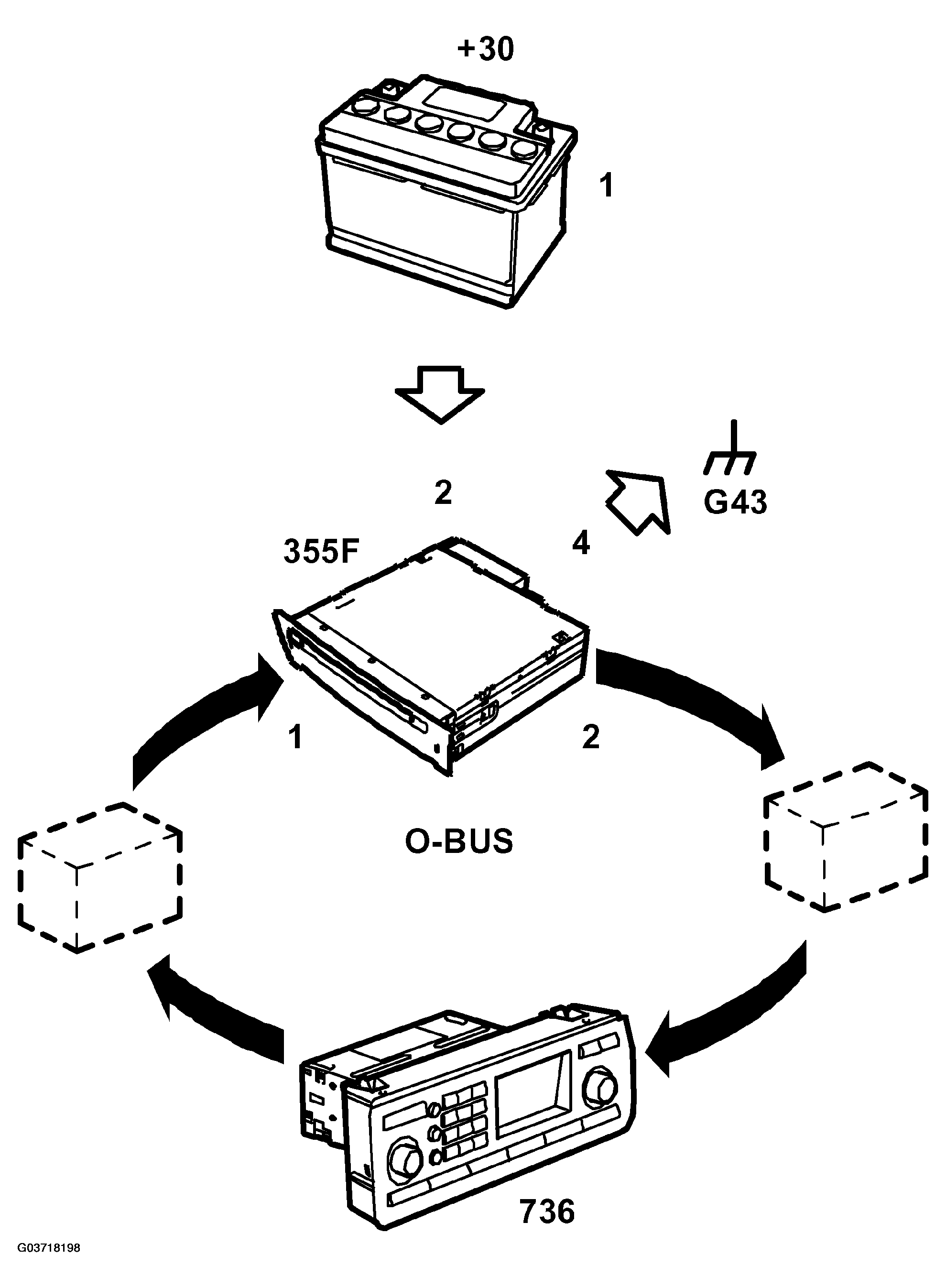

Fig 1: Identifying Communication Flow Front Cd Player/Changer (355F)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Wiring diagram, power supply

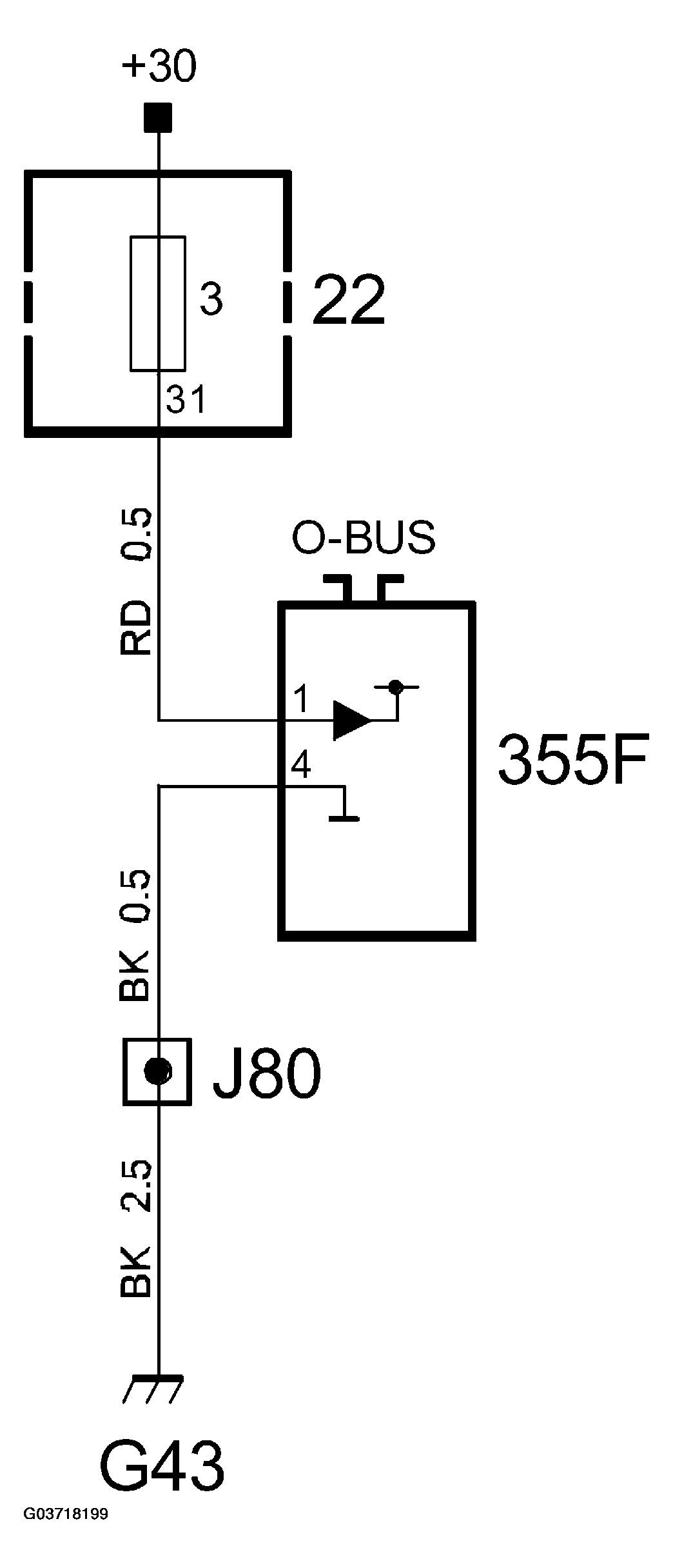

Fig 2: Circuit Diagram Front Cd Player/Changer (355F)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
